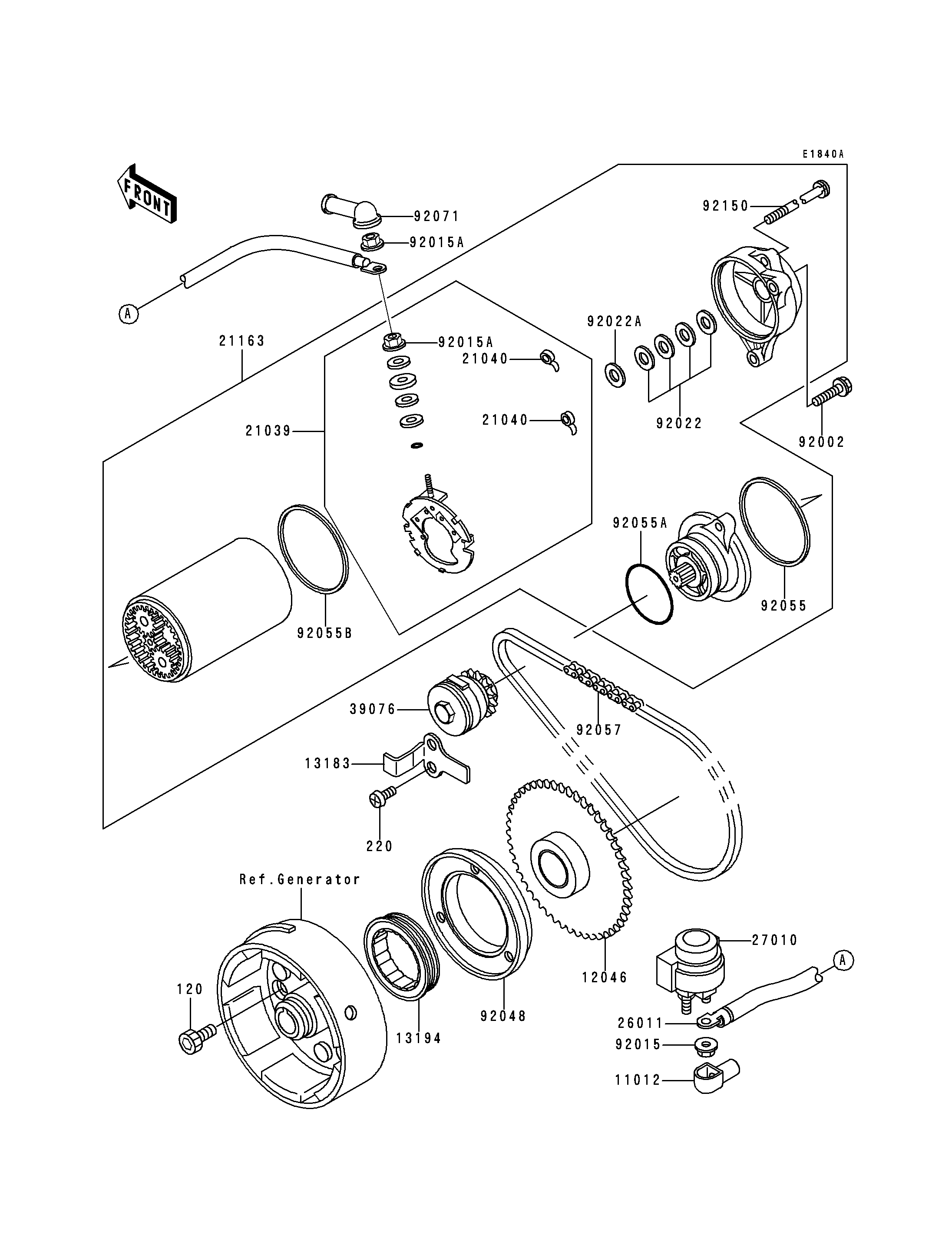

1991 Bayou 300 - Starter Motor(KLF300-B2/B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
120
220
11012
12046
13183
13194
21039
21040
21040
21163
26011
27010
39076
92002
92015
92015A
92015A
92022
92022A
92048
92055
92055A
92055B
92057
92071
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0816 3
SCREW-PAN-CROS,6X12 220 220B0612 1
CAP,TERMINAL 11012 11012-1354 1
SPROCKET,STARTER 12046 12046-1077 1
PLATE,STARTER CHAIN 13183 13183-1002 1
CLUTCH-ONEWAY 13194 13194-1077 1
BRUSH,CARBON 21039 21039-1063 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-1141 1
WIRE-LEAD,STATER MOTOR 26011 26011-1327 1
SWITCH,STARTER 27010 27010-1075 1
LIMITER,STARTER IDLE GEAR 39076 39076-1054 1
BOLT 92002 92002-1664 2
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,STARTER MOTOR 92015A 92015-1476 2
WASHER,9.1X18X0.2 92022 21025-011 4
WASHER,9.1X18X0.8 92022A 92022-1132 1
RACE,ONEWAY CLUTCH 92048 92048-1073 1
RING-O,64MM 92055 92055-1086 1
RING-O,42.8MM 92055A 92055-1313 1
RING-O,STARTER MOTOR 92055B 92055-1381 1
CHAIN,STARTER,KEC29H,64L 92057 92057-1196 1
GROMMET,STARTER TERMINAL 92071 21017-017 1
BOLT,STARTER MOTOR 92150 92150-1138 2
