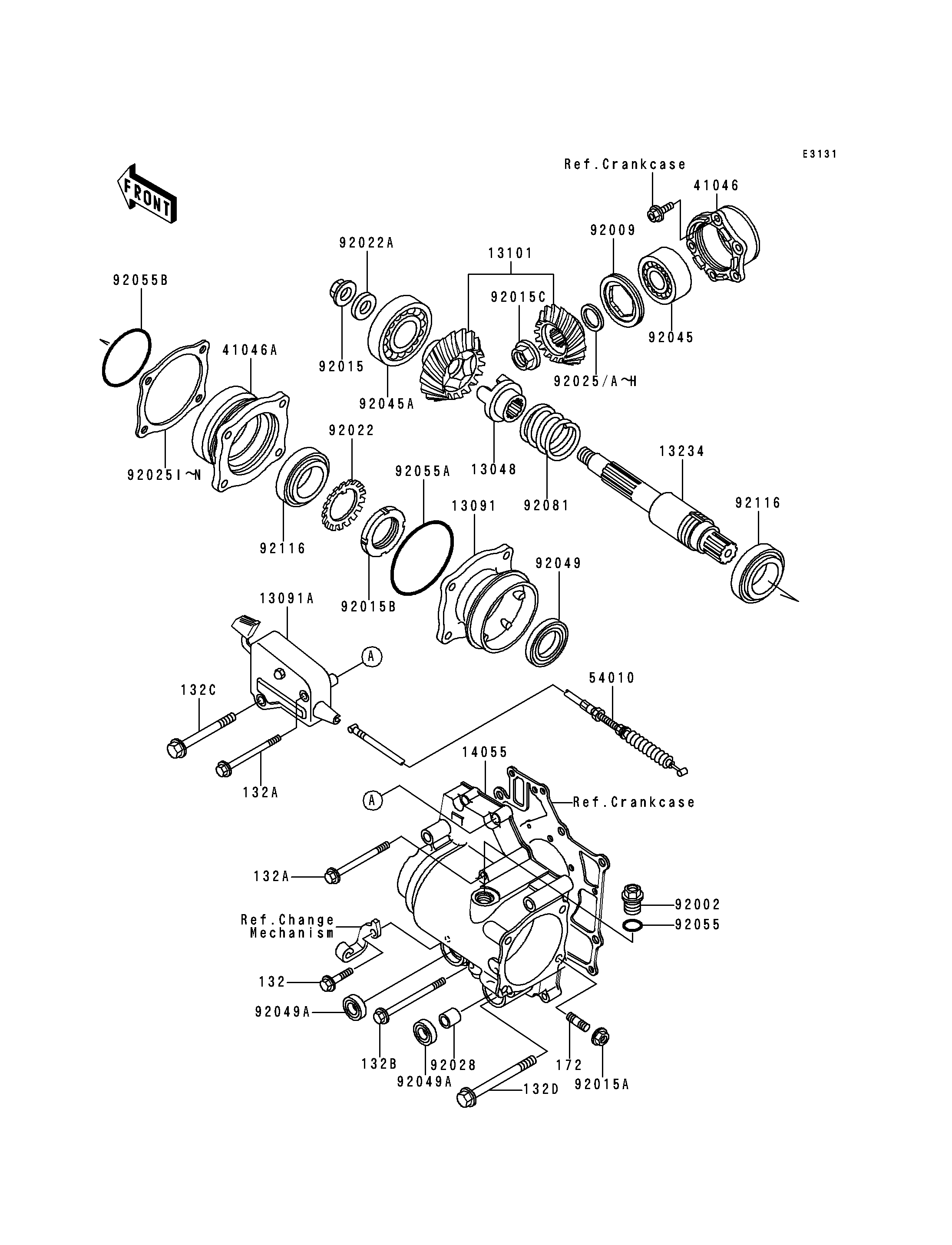

1991 Bayou 300 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
13048
13048
13091
13091
13091A
13091A
13101
13101
13234
13234
14055
14055
41046
41046
41046A
41046A
54010
54010
92002
92002
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92022
92022
92022A
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92025N
92025N
92028
92028
92045
92045
92045A
92045A
92049
92049
92049A
92049A
92049A
92049A
92055
92055
92055A
92055A
92055B
92055B
132
132
132A
132A
132A
132A
132B
132B
132C
132C
132D
132D
172
172
92081
92081
92116
92116
92116
92116
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER,FR 13048 13048-1059 1
HOLDER,GEAR CASE,FR 13091 13091-1377 1
HOLDER,DIFF LOCK 13091A 13091-1410 1
GEAR-ASSY,FRONT BEVEL 13101 13101-5053 1
SHAFT-COMP,GEAR CASE,FR 13234 13234-1085 1
CASE-GEAR,FRONT BEVEL 14055 14055-1071 1
HOUSING-BEARING,GEAR CASE,FR 41046 41046-1064 1
HOUSING-BEARING,GEAR CASE,FR 41046A 41046-1066 1
CABLE 54010 54010-1069 1
BOLT,16X10 92002 92002-1238 1
SCREW,55MM 92009 92009-1384 1
NUT,FLANGED,14MM 92015 92015-1341 1
NUT,8MM 92015A 92015-1402 4
NUT,RING 35MM 92015B 92015-1515 1
NUT 92015C 92015-1581 1
WASHER,LOCK 92022 92022-1687 1
WASHER,14.2X28X2.6 92022A 92022-1688 1
SHIM,20.3X28X1.3 92025 92025-1533 AR
SHIM,20.3X28X0.7 92025A 92025-1534 AR
SHIM,20.3X28X0.8 92025B 92025-1535 AR
SHIM,20.3X28X0.9 92025C 92025-1536 AR
SHIM,20.3X28X1.0 92025D 92025-1537 AR
SHIM,20.3X28X1.2 92025E 92025-1538 AR
SHIM,20.3X28X0.15 92025F 92025-1573 AR
SHIM,20.3X28X0.20 92025G 92025-1574 AR
SHIM,20.3X28X1.1 92025H 92025-1575 AR
SHIM,T=0.10 92025I 92025-1697 AR
SHIM,T=0.15 92025J 92025-1698 AR
SHIM,T=0.50 92025K 92025-1699 AR
SHIM,T=0.80 92025L 92025-1700 AR
SHIM,T=1.00 92025M 92025-1701 AR
SHIM,T=1.20 92025N 92025-1702 AR
BUSHING 92028 92028-1347 1
BEARING-BALL,5304 92045 92045-1144 1
BEARING-BALL,6206CM 92045A 92045-1155 1
SEAL-OIL 92049 92050-057 1
SEAL-OIL 92049A 92050-082 2
RING-O,ID=13.8 92055 92055-1141 1
RING-O,76MM 92055A 92055-1213 1
RING-O 92055B 92055-1316 1
BOLT-FLANGED-SMALL 132 132J0630 4
BOLT-FLANGED-SMALL 132A 132J0675 2
BOLT-FLANGED-SMALL 132B 132J0685 1
BOLT-FLANGED-SMALL 132C 132J0875 1
BOLT-FLANGED-SMALL 132D 132J0890 3
BOLT-STUD,8X25 172 172G0825 4
SPRING,DAMPER 92081 92081-1854 1
BEARING-ROLLER 92116 92116-1055 2
