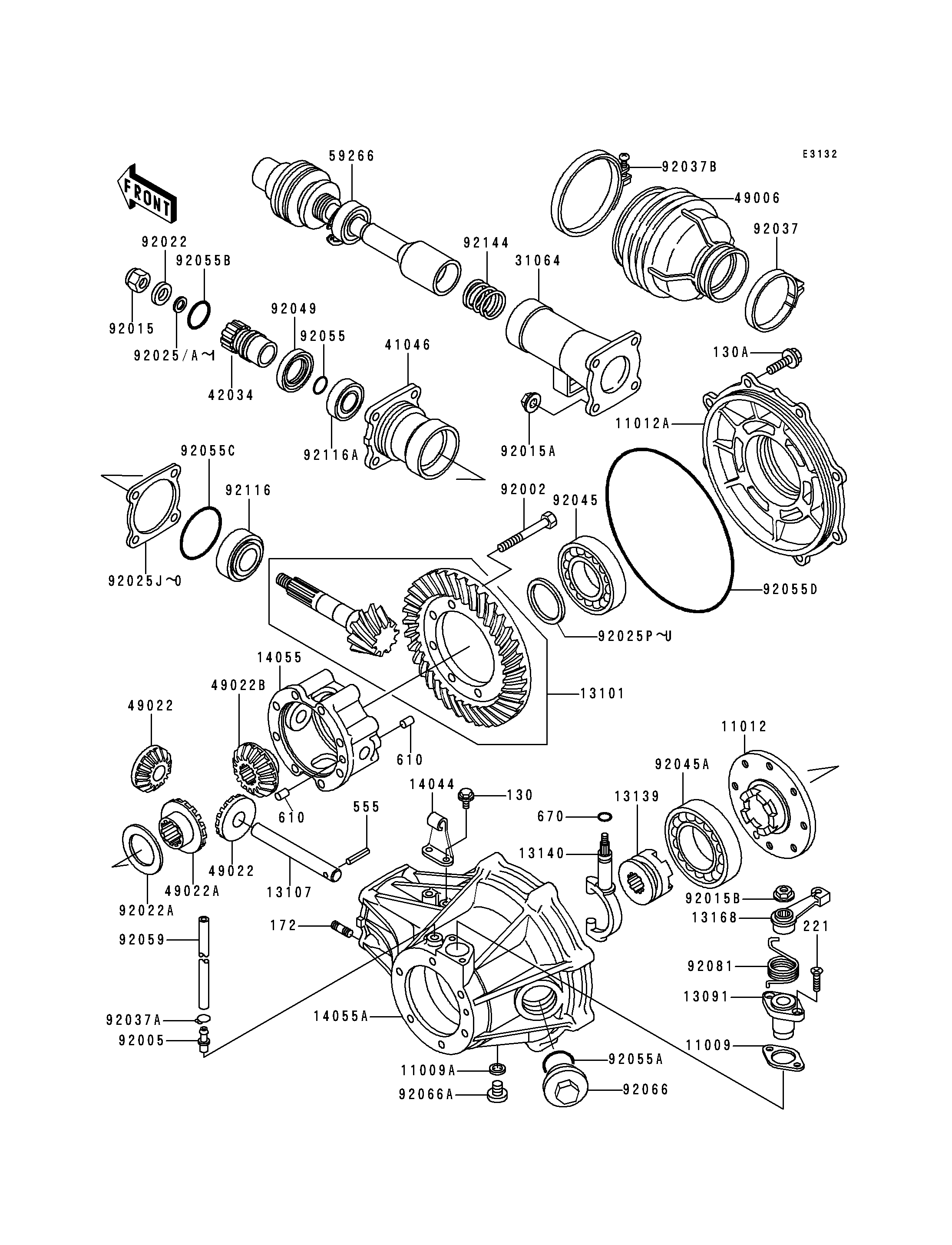

1991 Bayou 300 - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11012
11012
11012A
11012A
13091
13091
13101
13101
13107
13107
13139
13139
13140
13140
13168
13168
14044
14044
14055
14055
14055A
14055A
31064
31064
41046
41046
42034
42034
49006
49006
49022
49022
49022
49022
49022A
49022A
49022B
49022B
59266
59266
92002
92002
92005
92005
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022A
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
130
130
130A
130A
172
172
221
221
555
555
610
610
610
610
670
670
92025L
92025L
92025M
92025M
92025N
92025N
92025O
92025O
92025P
92025P
92025Q
92025Q
92025R
92025R
92025S
92025S
92025T
92025T
92025U
92025U
92037
92037
92037A
92037A
92037B
92037B
92045
92045
92045A
92045A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92059
92059
92066
92066
92066A
92066A
92081
92081
92116
92116
92116A
92116A
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1521 1
GASKET,10.5X16X1,DRAIN PLUG 11009A 92065-058 1
CAP,BEVEL GEAR 11012 11012-1444 1
CAP,DIFFERENTIAL CASE 11012A 11012-1614 1
HOLDER 13091 13091-1375 1
GEAR-ASSY,DIFFERENTIAL CASE 13101 13101-5054 1
SHAFT,BEVEL GEAR 13107 13107-1149 1
SHIFTER 13139 13139-1055 1
FORK-SHIFT,DIFF LOCK 13140 13140-1136 1
LEVER 13168 13168-1268 1
HOLDER-CABLE,DIFFERENTIAL 14044 14044-1058 1
CASE-GEAR,BEVEL 14055 14055-1072 1
CASE-GEAR 14055A 14055-1082 1
PIPE-COMP 31064 31064-1093 1
HOUSING-BEARING 41046 41046-1065 1
COUPLING,DIFFERENTIAL CASE 42034 42034-1078 1
BOOT,DRIVE SHAFT 49006 49006-1237 1
GEAR-BEVEL,10T 49022 49022-1065 2
GEAR-BEVEL,OD=35,16T 49022A 49022-1104 1
GEAR-BEVEL,OD=30,16T 49022B 49022-1106 1
JOINT-BALL 59266 59266-1070 1
BOLT,8X68 92002 92002-1553 8
FITTING,BREATHER 92005 92005-1127 1
NUT,12MM 92015 92015-1182 1
NUT,8MM 92015A 92015-1402 4
NUT,8MM 92015B 92015-1406 1
WASHER,12.3X25X3.2 92022 92022-1293 1
WASHER 92022A 92022-1742 1
SHIM,12.5X17X1.30 92025 92025-1282 AR
SHIM,12.5X17X0.1 92025A 92025-1287 AR
SHIM,12.5X17X0.2 92025B 92025-1288 AR
SHIM,12.5X17X0.3 92025C 92025-1289 AR
SHIM,12.5X17X0.5 92025D 92025-1290 AR
SHIM,12.5X17X0.6 92025E 92025-1291 AR
SHIM,12.5X17X0.7 92025F 92025-1292 AR
SHIM,12.5X17X0.8 92025G 92025-1293 AR
SHIM,12.5X17X0.9 92025H 92025-1294 AR
SHIM,12.5X17X1.0 92025I 92025-1295 AR
SHIM,T=0.10 92025J 92025-1703 AR
SHIM,T=0.15 92025K 92025-1704 AR
BOLT-FLANGED 130 130D0610 2
BOLT-FLANGED,8X25 130A 130G0825 8
BOLT-STUD,8X25 172 172G0825 4
SCREW-CSK-CROS,6X18 221 221B0618 2
PIN-SPRING 555 555A0528 1
ROLLER,8X12 610 610A0812 2
O RING,10MM 670 670B2010 1
SHIM,T=0.50 92025L 92025-1705 AR
SHIM,T=0.80 92025M 92025-1706 AR
SHIM,T=1.00 92025N 92025-1707 AR
SHIM,T=1.20 92025O 92025-1708 AR
SHIM,40.5X50X0.10 92025P 92025-1709 AR
SHIM,40.5X50X0.15 92025Q 92025-1710 AR
SHIM,40.5X50X0.50 92025R 92025-1711 AR
SHIM,40.5X50X0.80 92025S 92025-1712 AR
SHIM,40.5X50X1.00 92025T 92025-1713 AR
SHIM,40.5X50X1.20 92025U 92025-1714 AR
CLAMP 92037 92037-1523 1
CLAMP 92037A 92037-1610 1
CLAMP 92037B 92037-1654 1
BEARING-BALL,6208CM 92045 92045-1145 1
BEARING-BALL 92045A 92045-1213 1
SEAL-OIL 92049 92049-1231 1
RING-O,17.5X1.5 92055 92055-022 1
RING-O,36MM 92055A 92055-1005 1
RING-O,27MM 92055B 92055-1119 1
RING-O,54.8MM 92055C 92055-1296 1
RING-O,179.8MM 92055D 92055-1297 1
TUBE,6X9X1050 92059 92059-1939 1
PLUG,OIL FILLER CAP,M.SILVER 92066 92066-1006-7J 1
PLUG,DRAIN,10X12 92066A 92067-001 1
SPRING 92081 92081-1853 1
BEARING-ROLLER,4T-CR-0566 92116 92116-1005 1
BEARING-ROLLER,4T32004X 92116A 92116-1010 1
SPRING,DRIVE SHAFT 92144 92144-1235 1
