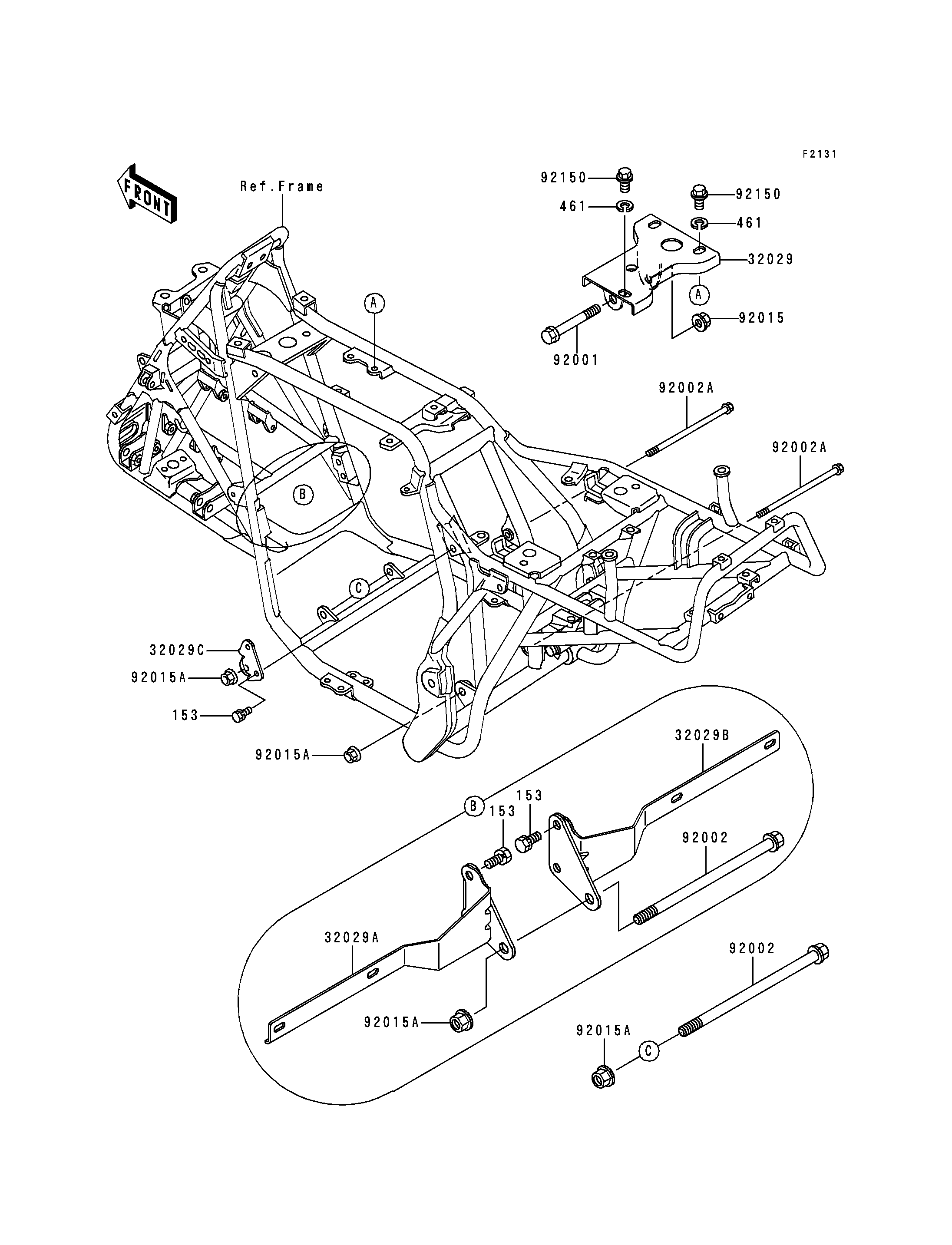

Parts Diagrams |
153
153
153
461
461
32029
32029A
32029B
32029C
92001
92002
92002
92002A
92002A
92015
92015A
92015A
92015A
92015A
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WS-SMALL,8X18 | 153 | 153J0818 | 6 | ||
| WASHER-SPRING,8MM,BLACK | 461 | 461K0800 | 3 | ||
| BRACKET-ENGINE,TOP | 32029 | 32029-1569 | 1 | ||
| BRACKET-ENGINE,LH | 32029A | 32029-1594 | 1 | ||
| BRACKET-ENGINE,RH | 32029B | 32029-1595 | 1 | ||
| BRACKET-ENGINE | 32029C | 32029-1597 | 1 | ||
| BOLT,FLANGED,8X60,BLACK | 92001 | 92001-1615 | 1 | ||
| BOLT,FLANGED,10X180 | 92002 | 92002-1546 | 2 | ||
| BOLT,FLANGED,10X190 | 92002A | 92002-1548 | 2 | ||
| NUT,8MM | 92015 | 92015-1432 | 1 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1727 | 4 | ||
| BOLT,FLANGED,8X14 | 92150 | 92150-1066 | 3 |
