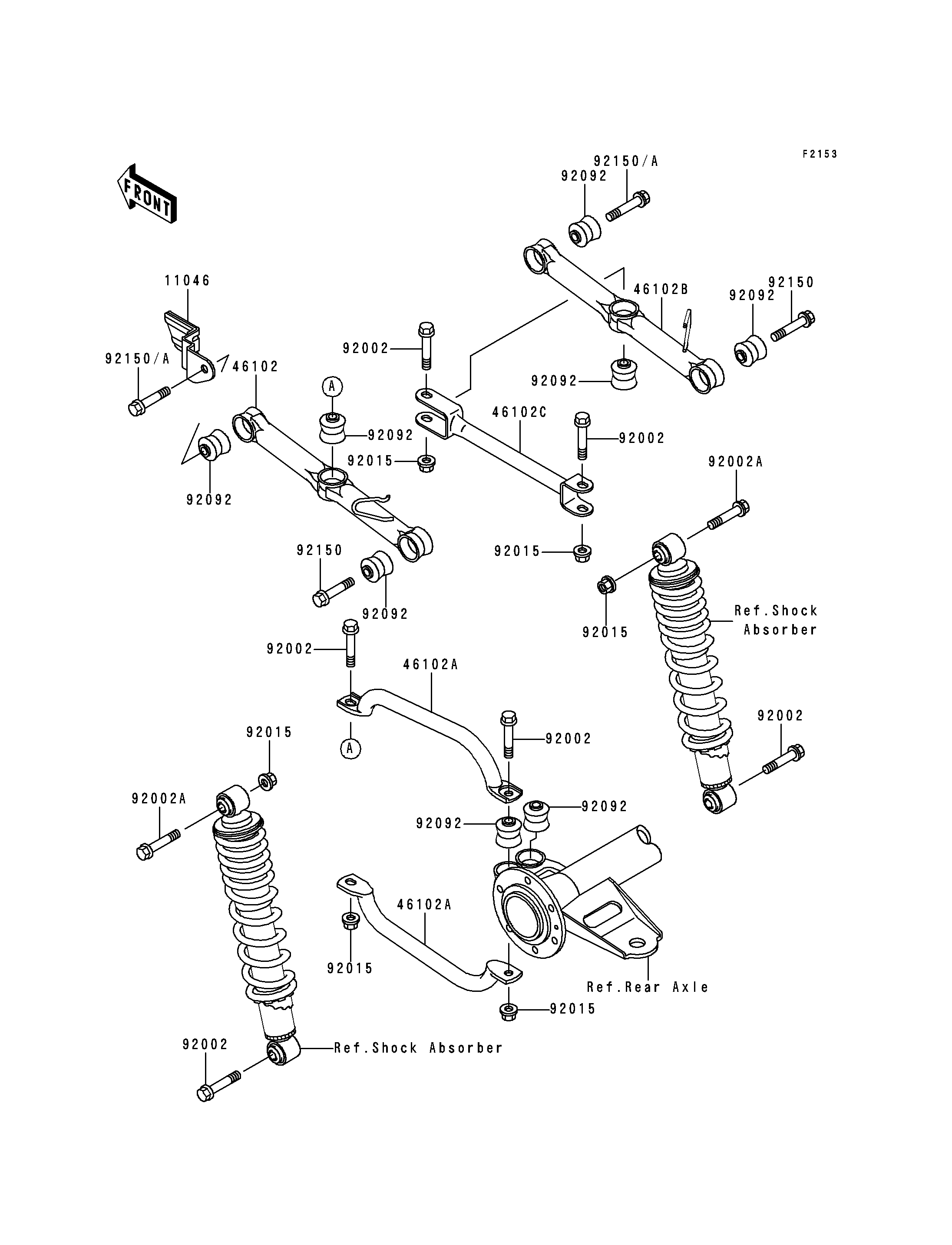

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11046
46102
46102A
46102A
46102B
46102C
92002
92002
92002
92002
92002
92002
92002A
92002A
92015
92015
92015
92015
92015
92015
92092
92092
92092
92092
92092
92092
92092
92092
92150
92150
92150
92150
92150A
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FLAP GUARD | 11046 | 11045-1946 | 1 | ||
| ROD,SUSPENSION,RR,LH,OUTSIDE | 46102 | 46102-1223 | 1 | ||
| ROD,SUSPENSION,RR,LH,INSIDE | 46102A | 46102-1224 | 2 | ||
| ROD,SUSPENSION,RR,RH,OUTSIDE | 46102B | 46102-1225 | 1 | ||
| ROD,SUSPENSION,RR,RH,INSIDE | 46102C | 46102-1226 | 1 | ||
| BOLT,FLANGED,10X53.5 | 92002 | 92002-1529 | 6 | ||
| BOLT,FLANGED,10X49 | 92002A | 92002-1562 | 2 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 6 | ||
| BUSHING-RUBBER | 92092 | 92092-1064 | 8 | ||
| BOLT,FLANGED,10X49 | 92150 | 92150-1048 | 2 | ||
| BOLT,FLANGED,10X52 | 92150A | 92150-1070 | 2 |
