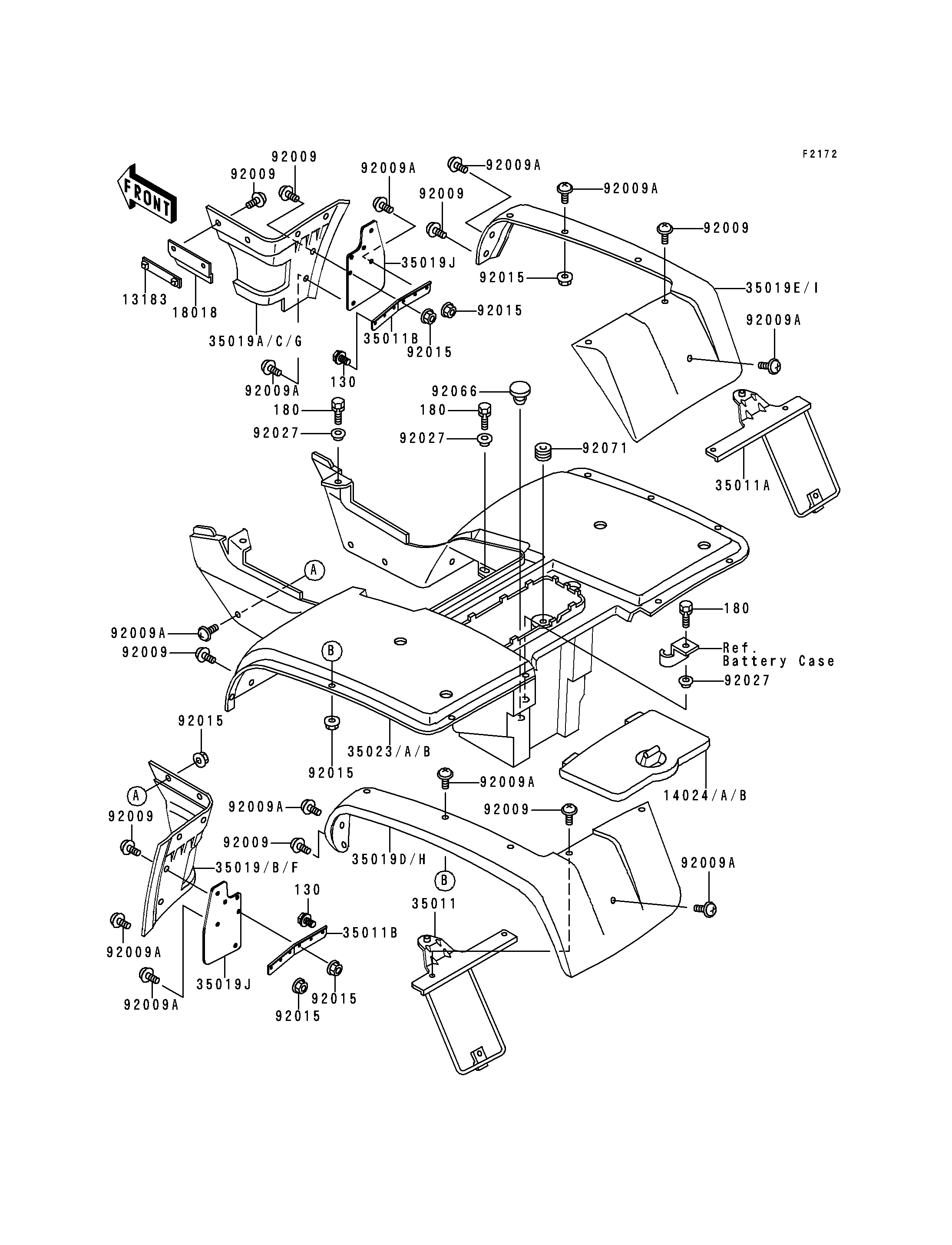

1991 Bayou 300 - Rear Fender

DOWNLOAD PDF
SELECT A NEW PART
130
130
180
180
180
13183
14024
14024B
18018
35011
35011A
35011B
35011B
35019F
35019G
35019H
35019I
35019J
35019J
35023
35023B
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015
92015
92015
92027
92027
92027
92066
92071
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10,BLACK 130 130C0610 4
BOLT-UPSET-WS 180 180D0618 6
PLATE,HEAT GUARD 13183 13183-1035 1
COVER,REAR FENDER,BLACK 14024 14024-1095-6D 1
COVER,REAR FENDER,F.RED 14024B 14024-1095-6L 1
PLATE-HEAT GUARD 18018 18018-1071 1
STAY,REAR FLAP,LH 35011 35011-1418 1
STAY,REAR FLAP,RH 35011A 35011-1419 1
STAY,FLAP,OUTER 35011B 35011-1435 2
FLAP,FR,LH 35019F 35019-1225 1
FLAP,FR,RH 35019G 35019-1226 1
FLAP,RR,LH 35019H 35019-1227 1
FLAP,RR,RH 35019I 35019-1228 1
FLAP,FR,OUTER 35019J 35019-1255 2
FENDER-REAR,BLACK 35023 35023-1139-6D 1
FENDER-REAR,F.RED 35023B 35023-1139-6L 1
SCREW,6X18,BLACK 92009 92009-1181 12
SCREW,6X14 92009A 92009-1288 18
NUT,LOCK,FLANGED,6MM 92015 92015-1675 22
COLLAR,L=5.6 92027 92027-1933 6
PLUG,11X3.2 92066 92074-038 1
GROMMET 92071 92071-1131 1
