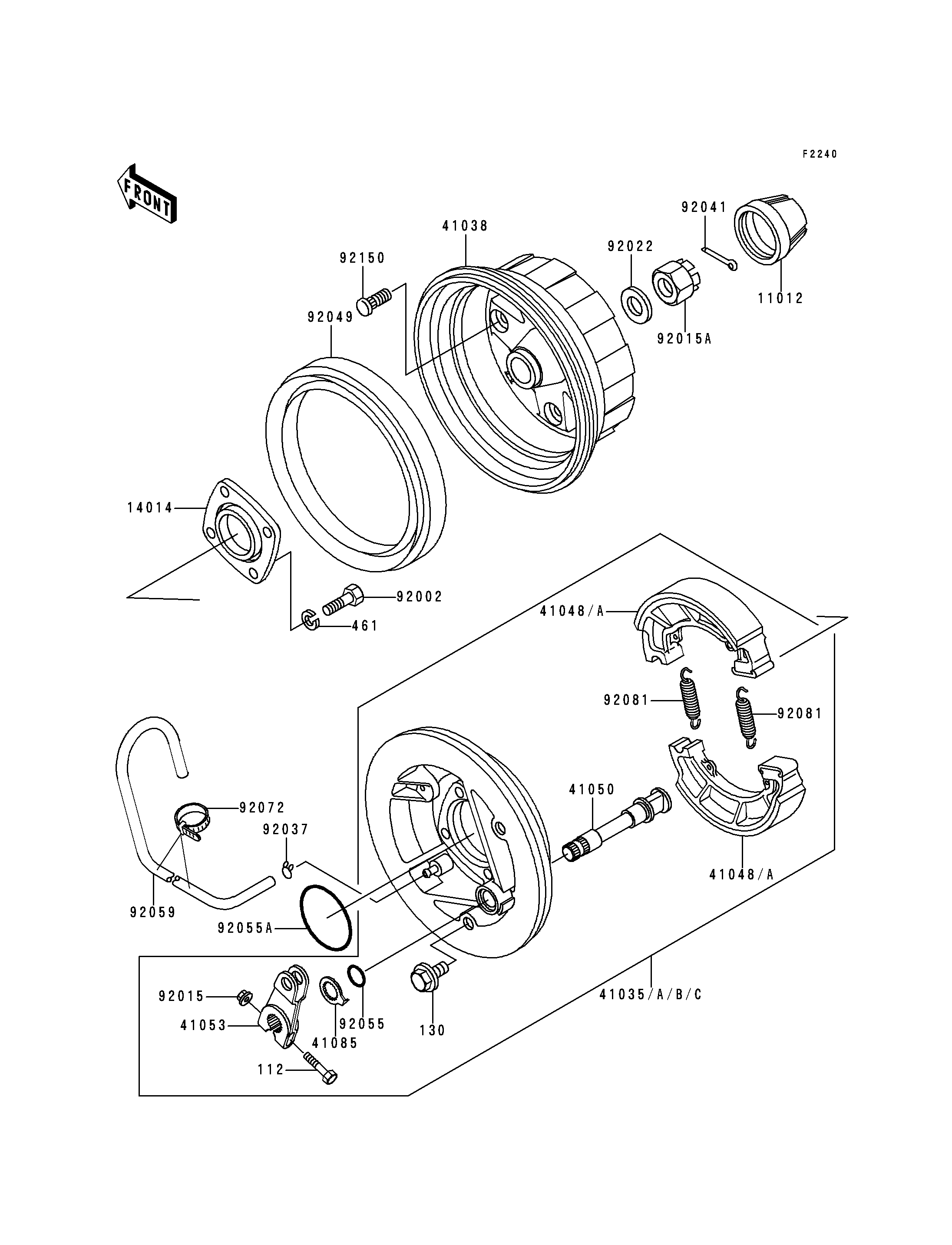

1991 Bayou 300 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
112
130
461
11012
14014
41035B
41035C
41038
41048A
41048A
41050
41053
41085
92002
92015
92015A
92022
92037
92041
92049
92055
92055A
92059
92072
92081
92081
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112H0640 2
BOLT-FLANGED,10X16 130 130B1016 2
WASHER-SPRING,10MM 461 461F1000 8
CAP,WHEEL 11012 11012-1519 2
PLATE-POSITION 14014 14014-1072 2
PANEL-ASSY-BRAKE,RR,RH 41035B 41035-1239 1
PANEL-ASSY-BRAKE,RR,LH 41035C 41035-1273 1
DRUM,RR 41038 41038-1201 2
SHOE-BRAKE 41048A 41048-1069 4
CAM-BRAKE 41050 41050-1074 2
LEVER-BRAKE CAM 41053 41053-1064 2
INDICATOR 41085 41085-1053 2
BOLT,10X30 92002 92002-1918 8
NUT,6MM 92015 41072-007 2
NUT,CASTLE,18MM 92015A 42045-018 2
WASHER,18.3X34X4.5 92022 92022-1658 2
CLAMP,TUBE 92037 92037-147 2
COTTER,4.0X35 92041 92041-1053 2
SEAL-OIL 92049 92049-1242 2
RING-O,ID=16.4 92055 92055-1376 2
RING-O 92055A 92055-3018 2
TUBE,4.7X9.5X1240 92059 92059-1968 2
BAND,L=123 92072 92072-030 5
SPRING,BRAKE SHOE 92081 42020-004 4
BOLT,10MM 92150 92150-1110 8
