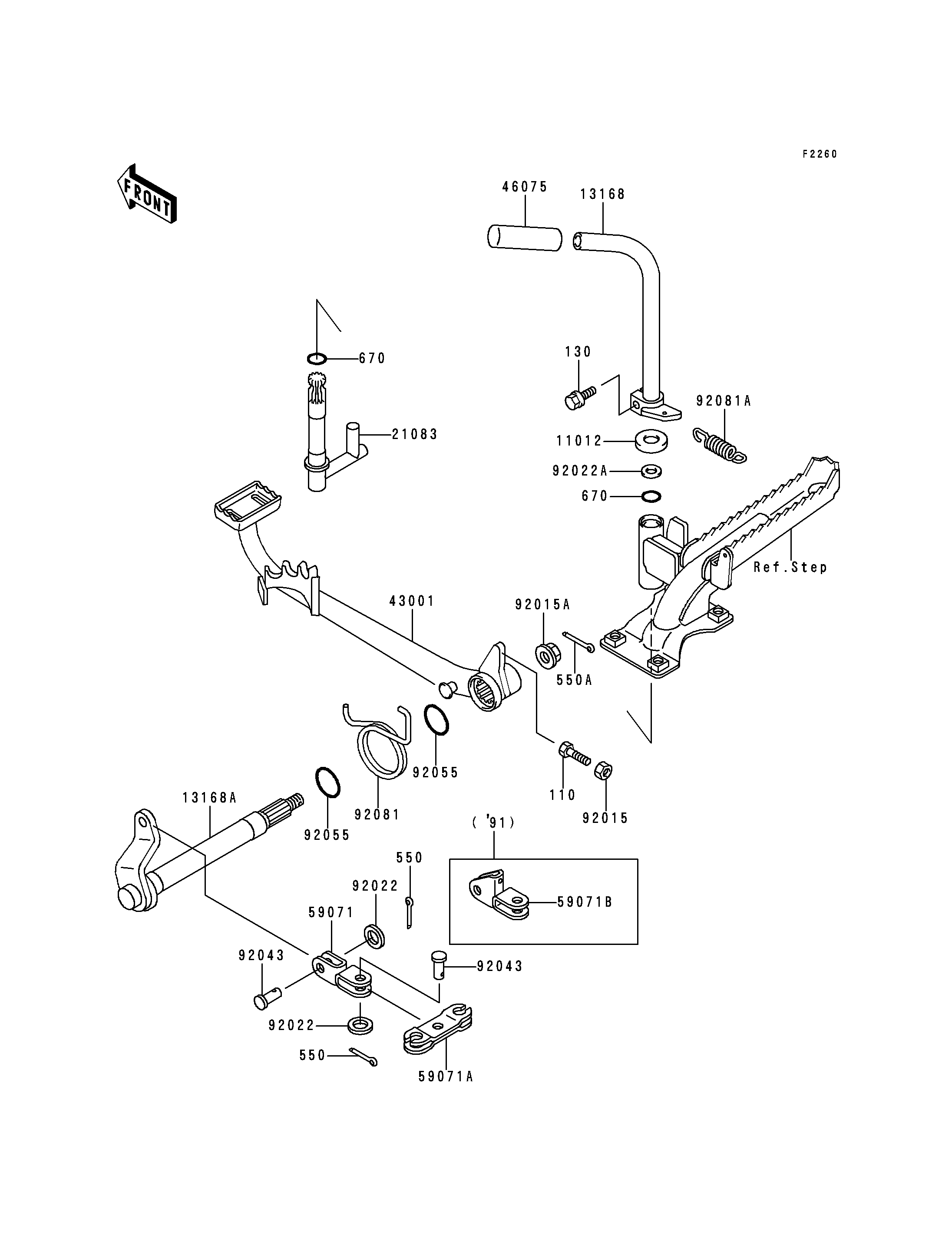

1991 Bayou 300 - Brake Pedal

DOWNLOAD PDF
SELECT A NEW PART
110
130
550
550
550A
670
670
11012
13168
13168A
21083
43001
46075
59071A
59071B
92015
92015A
92022
92022
92022A
92043
92043
92055
92055
92081
92081A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 110 110D0622 1
BOLT-FLANGED,6X20,BLACK 130 130S0620 1
PIN-COTTER,2.0X15 550 550D2015 2
PIN-COTTER,2.5X18 550A 550D2518 1
O RING,12MM 670 670B2012 2
CAP,STEP 11012 11012-1482 1
LEVER,PARKING BRAKE 13168 13168-1282 1
LEVER,REAR BRAKE 13168A 13168-1366 1
ARM,PARKING BRAKE 21083 21083-1072 1
LEVER-BRAKE,PEDAL,RR 43001 43001-1236 1
GRIP,PARKING BRAKE LEVER 46075 46075-1062 1
JOINT 59071A 59071-1106 1
JOINT 59071B 59071-1138 1
NUT,6MM 92015 92015-1410 1
NUT,FLANGED,10MM 92015A 92015-1415 1
WASHER,8.5X16X1.2 92022 92022-1582 2
WASHER,12X20X3.2 92022A 92022-1936 1
PIN,8X16 92043 92043-1013 2
RING-O,23.8MM 92055 92055-1257 2
SPRING,BRAKE PEDAL RETURN 92081 92081-1887 1
SPRING,BRAKE LEVER RETURN 92081A 92081-1922 1
