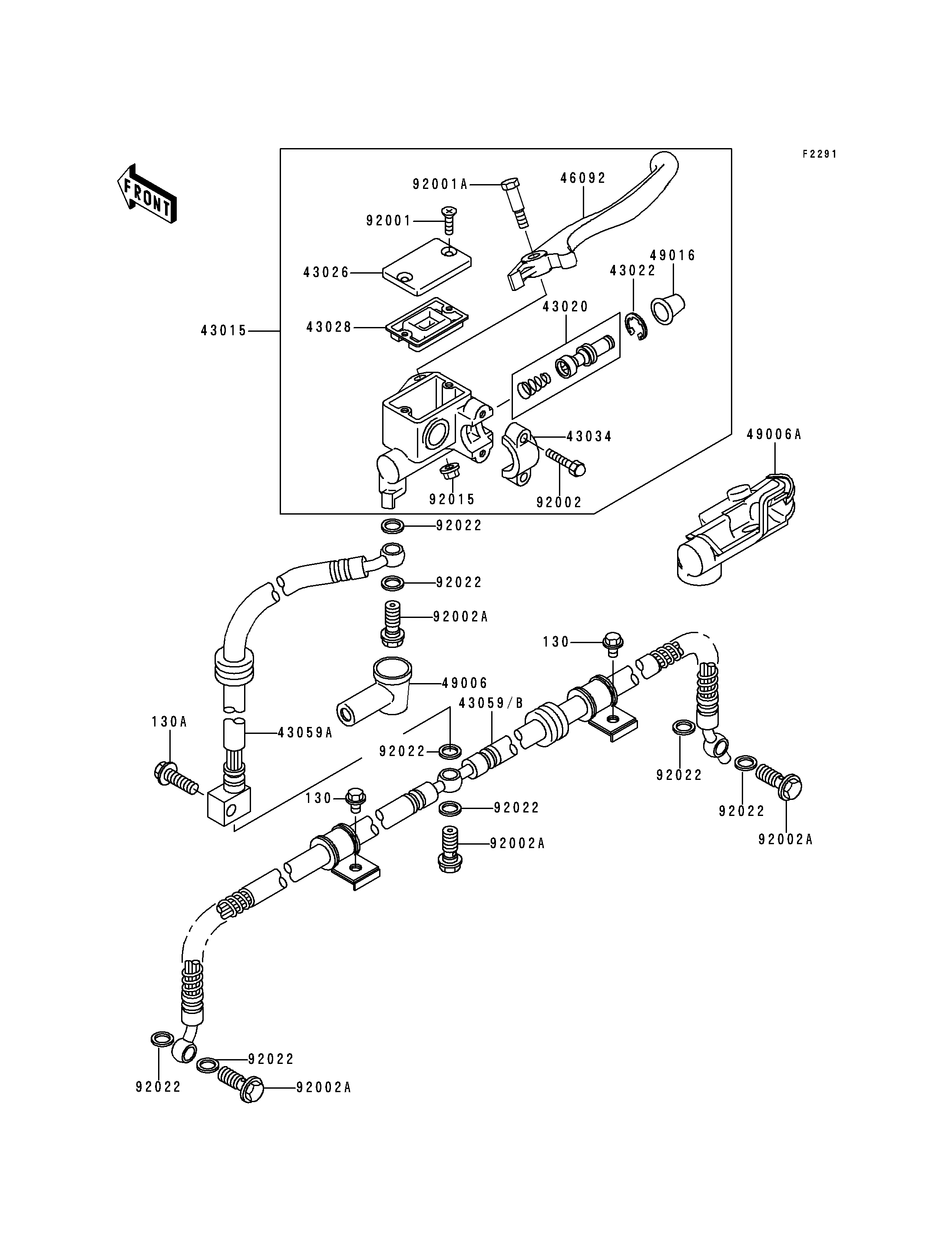

1991 Bayou 300 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
43015
43020
43022
43026
43028
43034
43059
43059A
46092
49006
49006A
49016
92001
92001A
92002
92002A
92002A
92002A
92002A
92015
92022
92022
92022
92022
92022
92022
92022
92022
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X25 130A 130B0825 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1369 1
PISTON-COMP-BRAKE,FR 43020 43020-1056 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1022 1
DIAPHRAGM 43028 43028-1066 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43059 43059-1419 1
HOSE-BRAKE,FR 43059A 43059-1515 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1136 1
BOOT,DUST 49006 49006-1040 1
BOOT,RH 49006A 49006-1198 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,MASTER CYLINDER CAP 92001 92001-1727 2
BOLT,FRONT BRAKE LEVER 92001A 92001-1728 1
BOLT 92002 92002-1860 2
BOLT,OIL,L=23 92002A 92002-1888 4
NUT,FLANGED,6MM 92015 92015-1233 1
WASHER,10.5X15X1.5 92022 43067-001 8
