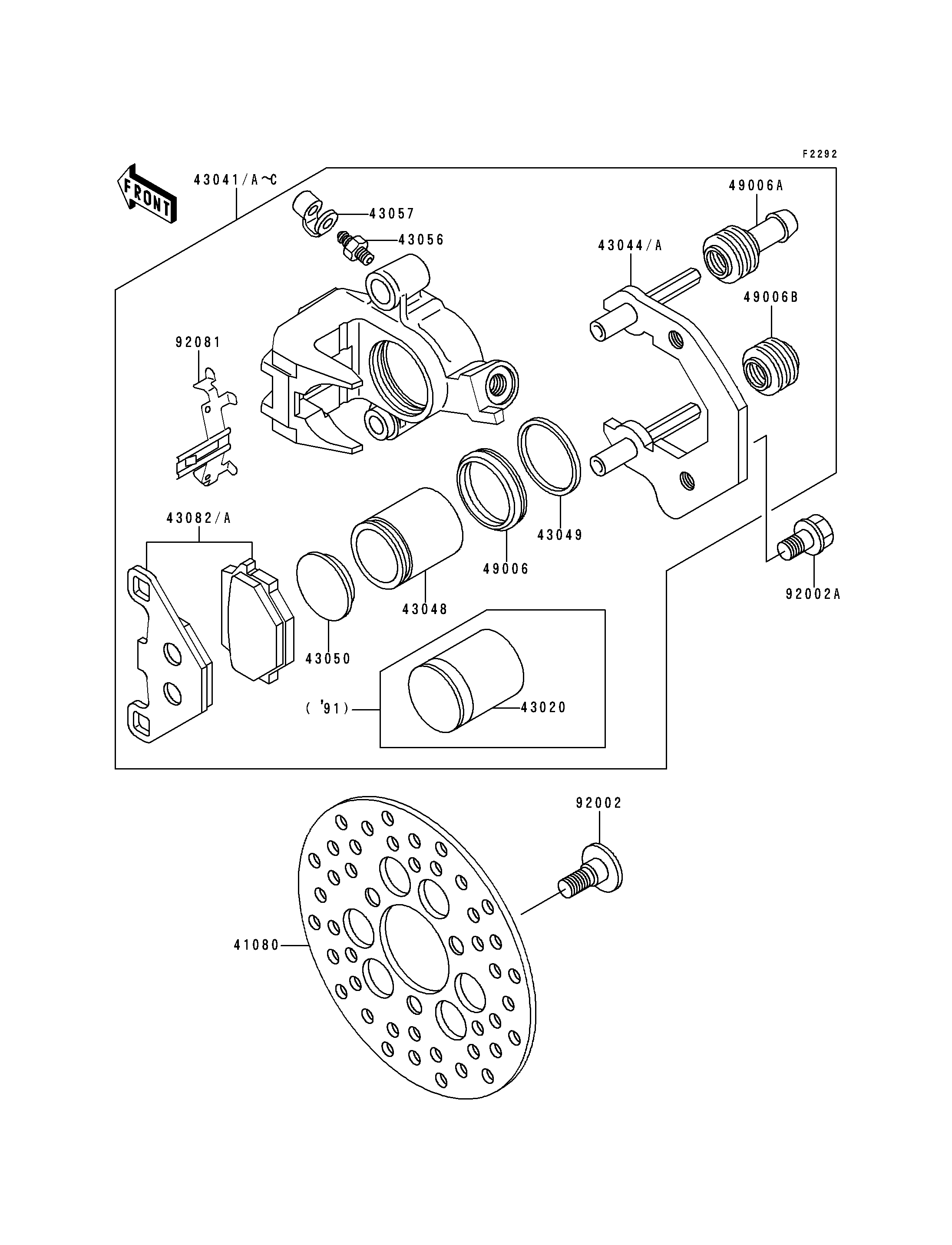

1991 Bayou 300 - Front Caliper

DOWNLOAD PDF
SELECT A NEW PART
41080
43020
43041B
43041C
43044
43044A
43049
43056
43057
43082
49006
49006A
49006B
92002
92002A
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1171 2
PISTON-COMP-BRAKE 43020 43020-1093 2
CALIPER-ASSY,FR,LH 43041B 43041-1402 1
CALIPER-ASSY,FR,RH 43041C 43041-1403 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1064 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1065 1
PACKING 43049 43049-1016 2
BREATHER 43056 43056-003 2
CAP-BREATHER 43057 43057-003 2
PAD-ASSY-BRAKE,FR 43082 43082-1027 2
BOOT,PISTON SEAL 49006 49006-1053 2
BOOT,CALIPER 49006A 49006-1054 2
BOOT,CALIPER 49006B 49006-1055 2
BOLT,DISC PLATE,8X20 92002 92002-1736 6
BOLT,FLANGED,8X13 92002A 92002-1737 4
SPRING 92081 92081-1341 2
