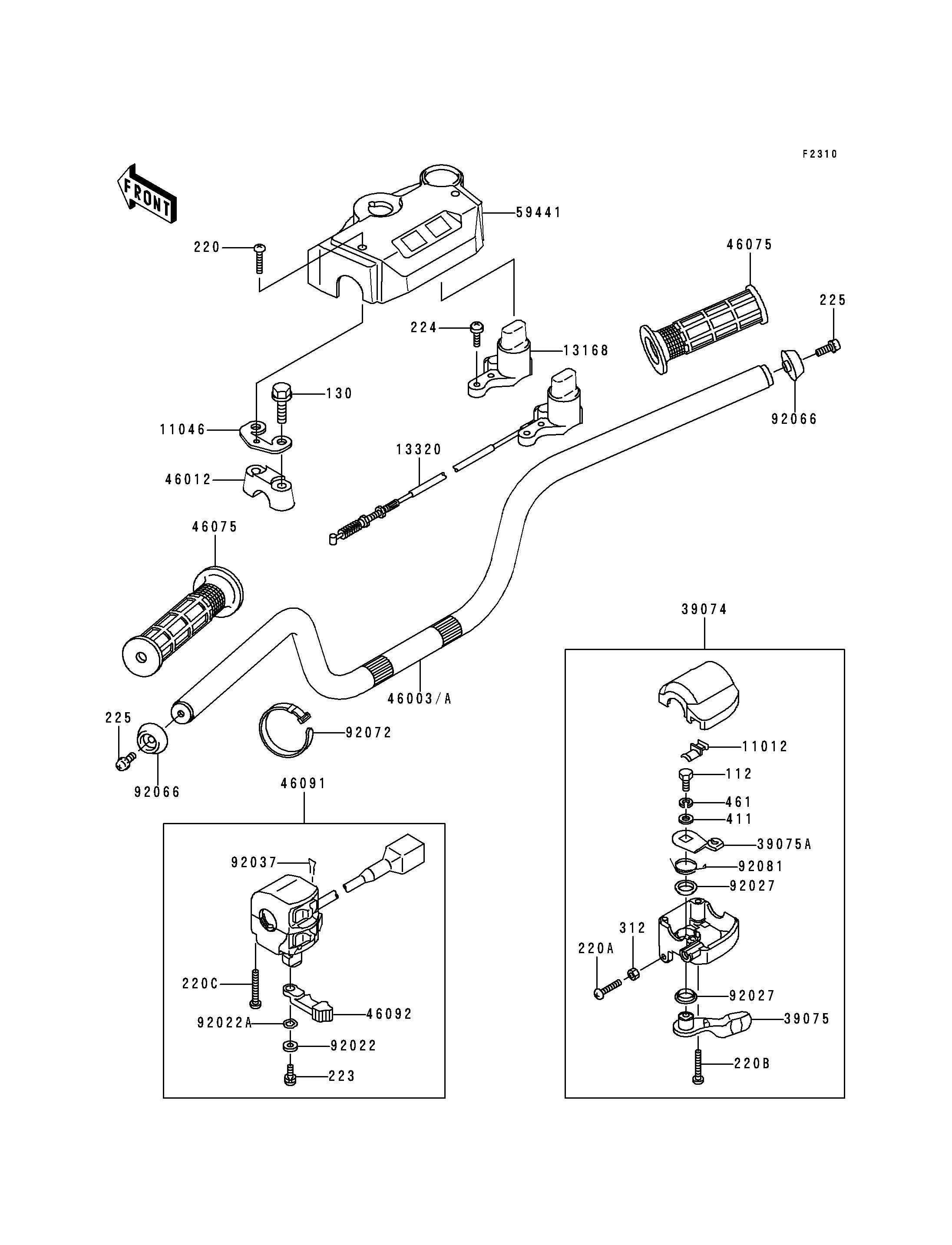

1991 Bayou 300 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
130
220
220A
220B
220C
223
224
225
225
312
411
461
11012
11046
13320
39074
39075
39075A
46003A
46012
46075
46075
46091
46092
59441
92022
92022A
92027
92027
92037
92066
92066
92072
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112D0614 1
BOLT-FLANGED,8X55 130 130G0855 4
SCREW-PAN-CROS,4X20 220 220C0420 2
SCREW-PAN-CROS 220A 220C0525 1
SCREW-PAN-CROS 220B 220C0530 2
SCREW-PAN-CROS 220C 220C0535 2
SCREW-PAN-WS-CROS 223 223C0512 1
SCREW-PAN-WP-CROS,5X20 224 224B0520 2
SCREW-PAN-WSP-CROS,6X20 225 225C0620 2
NUT-HEX 312 312C0500 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
CAP 11012 11012-1425 1
BRACKET,HANDLE COVER 11046 11045-1925 2
LEVER-ASSY,REVERSE 13320 13320-1007 1
LEVER-ASSY-THROTTLE 39074 39074-1052 1
LEVER-THROTTLE 39075 39075-1053 1
LEVER-THROTTLE,ARM 39075A 39075-1054 1
HANDLE 46003A 46003-1292 1
HOLDER-HANDLE 46012 46012-1168 2
GRIP 46075 46075-1056 2
HOUSING-ASSY-CONTROL,LH 46091 46091-1462 1
LEVER-GRIP,CHOKE 46092 46092-1149 1
COVER-HANDLE 59441 59441-1077 1
WASHER,5MM 92022 92022-1837 1
WASHER,WAVE,5MM 92022A 92022-1838 1
COLLAR 92027 92027-1982 2
CLAMP,CLIP 92037 92037-1836 1
PLUG,HANDLE 92066 92066-1191 2
BAND,L=149 92072 92072-031 1
SPRING 92081 92081-1685 1
