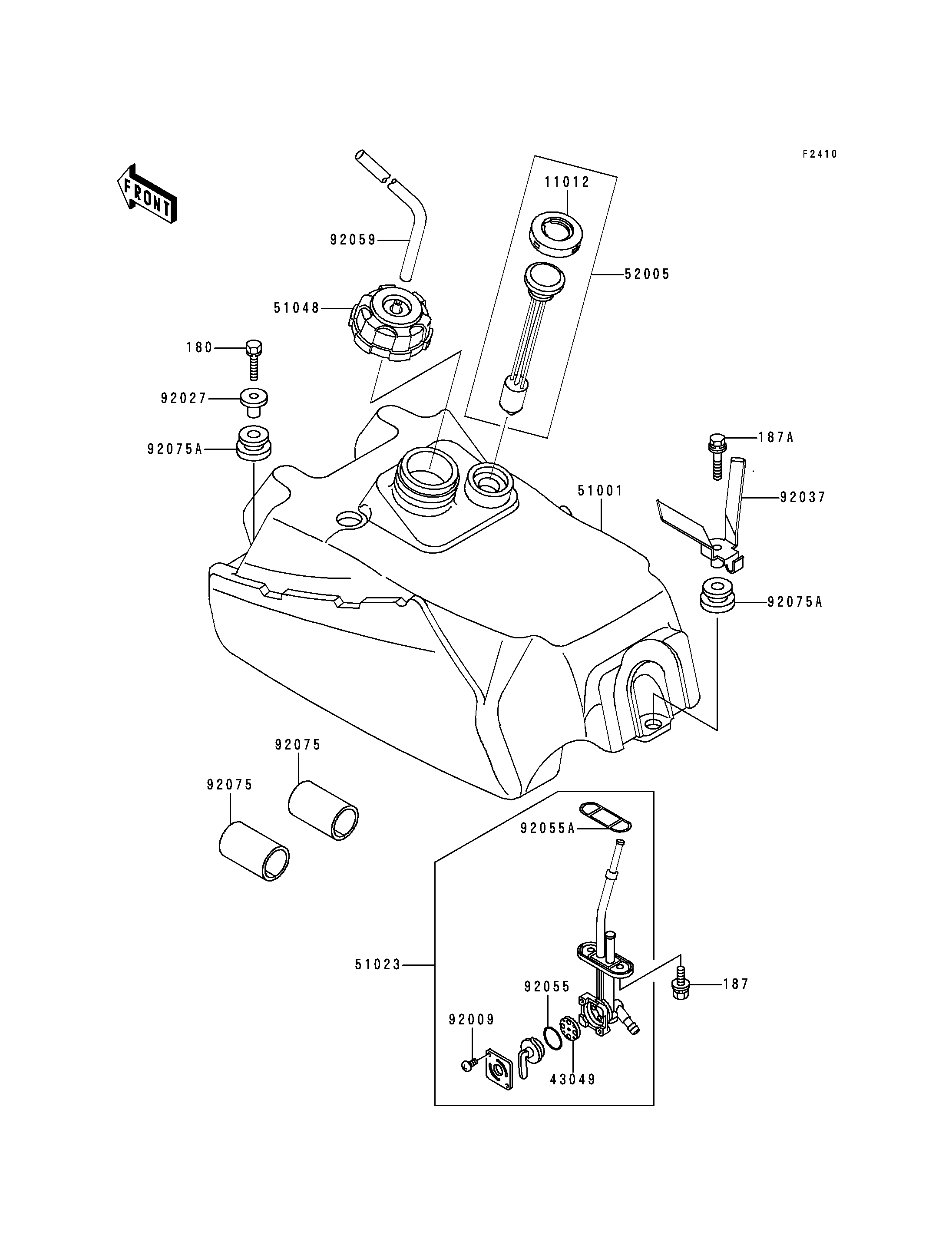

Parts Diagrams |
180
187
187A
11012
43049
51001
51023
51048
52005
92009
92027
92037
92055
92055A
92059
92075
92075
92075A
92075A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET-WS,6X25 | 180 | 180D0625 | 2 | ||
BOLT-UPSET-WSP | 187 | 187B0614 | 2 | ||
BOLT-UPSET-WSP | 187A | 187D0630 | 1 | ||
CAP,FUEL GAUGE | 11012 | 11012-1627 | 1 | ||
PACKING,FUEL TAP LEVER | 43049 | 43049-1017 | 1 | ||
TANK-COMP-FUEL | 51001 | 51001-1278 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1144 | 1 | ||
CAP-ASSY-TANK,FUEL | 51048 | 51048-1092 | 1 | ||
GAUGE,FUEL | 52005 | 52005-1092 | 1 | ||
SCREW,3X5 | 92009 | 92009-1123 | 2 | ||
COLLAR,L=16.1 | 92027 | 92027-1847 | 2 | ||
CLAMP,HOSE | 92037 | 92037-1982 | 1 | ||
RING-O,FUEL TAP LEVER | 92055 | 92055-1111 | 1 | ||
RING-O,FUEL TAP PACKING | 92055A | 92055-1348 | 1 | ||
TUBE,5X9X470 | 92059 | 92059-1890 | 1 | ||
DAMPER,FUEL TANK,FR,UNDER | 92075 | 92075-1369 | 2 | ||
DAMPER | 92075A | 92075-1787 | 3 |
