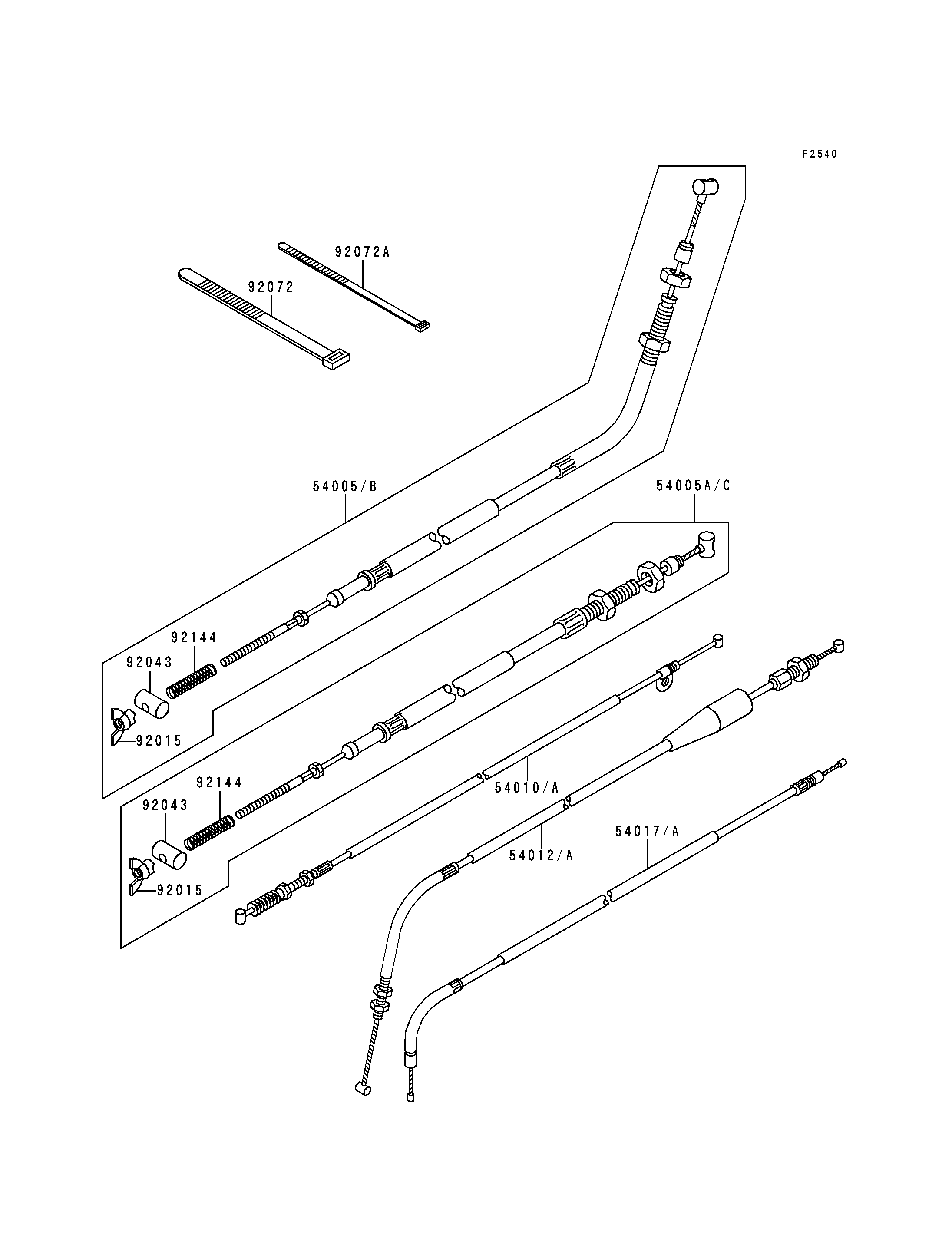

54005B
54005C
54012A
54017A
92015
92015
92043
92043
92072A
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-BRAKE,RR,LH 54005B 54005-1157 1
CABLE-BRAKE,RR,RH 54005C 54005-1158 1
CABLE-THROTTLE 54012A 54012-1362 1
CABLE-STARTER 54017A 54017-1111 1
NUT,WING,6MM 92015 92015-4004 2
PIN,12X20 92043 92043-1392 2
BAND,L=188 92072A 92072-1239 1
SPRING,BRAKE CABLE 92144 92144-1269 2
