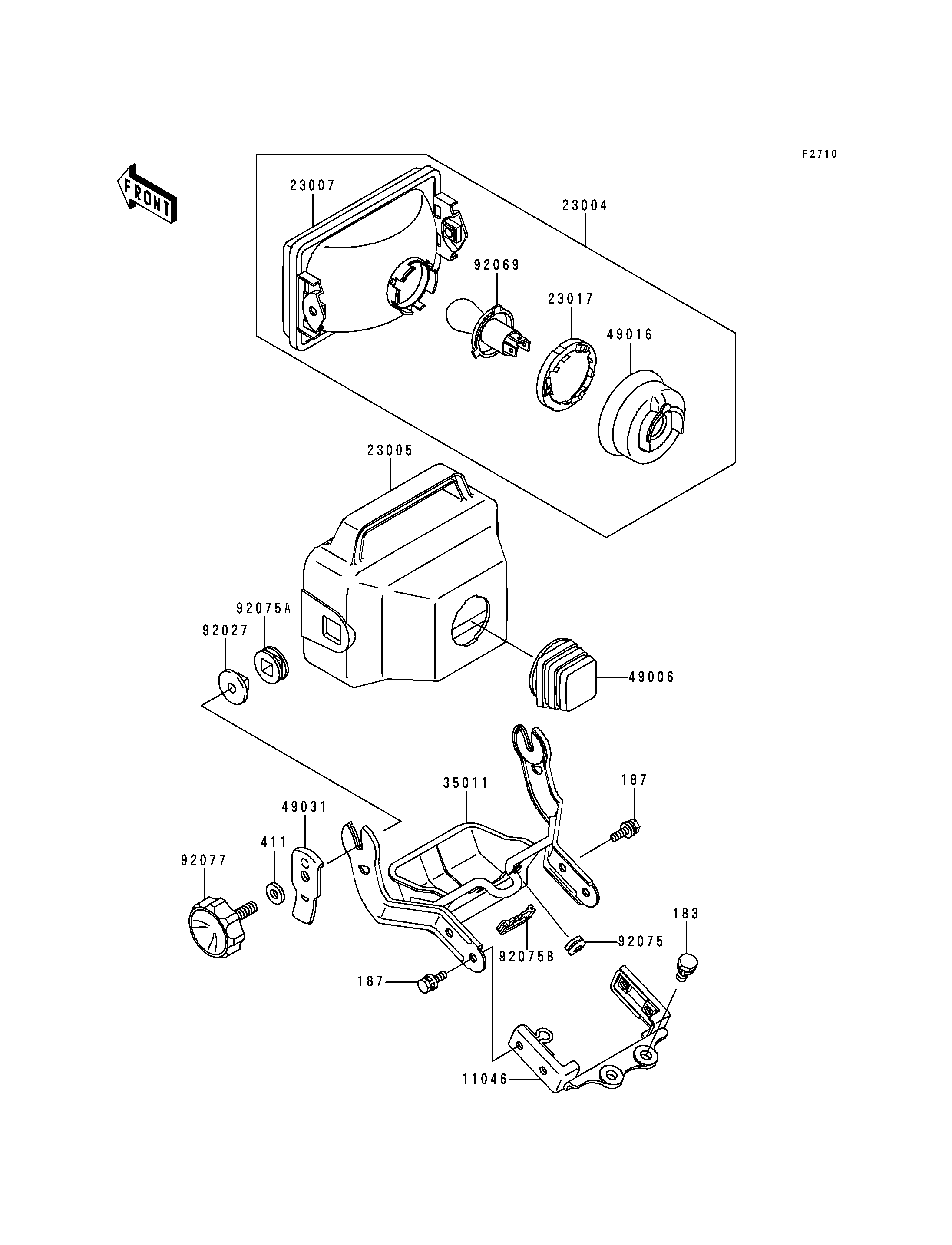

Parts Diagrams |
183
187
187
411
11046
23004
23005
23007
23017
35011
49006
49016
49031
92027
92069
92075
92075A
92075B
92077
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET-WS-SMALL | 183 | 183J0814 | 2 | ||
BOLT-UPSET-WSP | 187 | 187C0614 | 4 | ||
WASHER-PLAIN,8MM,BLACK | 411 | 411F0800 | 2 | ||
BRACKET,HEAD LAMP | 11046 | 11045-1924 | 1 | ||
LAMP-HEAD | 23004 | 23004-1192 | 1 | ||
BODY-COMP-HEAD LAMP,BLACK | 23005 | 23005-1064-6Z | 1 | ||
LENS-COMP,HEAD LAMP | 23007 | 23007-1138 | 1 | ||
SOCKET,BULB | 23017 | 23017-1051 | 1 | ||
STAY,HEAD LAMP | 35011 | 35011-1413 | 1 | ||
BOOT,HEAD LAMP BODY | 49006 | 49006-1172 | 1 | ||
COVER-SEAL,BULB SOCKET | 49016 | 49016-1111 | 1 | ||
LATCH,HEAD LAMP | 49031 | 49031-1052 | 2 | ||
COLLAR,L=11.9 | 92027 | 92027-1938 | 2 | ||
BULB,12V 65/60W | 92069 | 92069-1069 | 1 | ||
DAMPER,HEAD LAMP HOLDER | 92075 | 92075-1482 | 1 | ||
DAMPER,HEAD LAMP FITTING | 92075A | 92075-1768 | 2 | ||
DAMPER | 92075B | 92075-1881 | 1 | ||
KNOB,HEAD LAMP | 92077 | 92077-1060 | 2 |
BOLT-UPSET-WS-SMALL | |
REF # | 183 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WSP | |
REF # | 187 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,8MM,BLACK | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,HEAD LAMP | |
REF # | 11046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-HEAD | |
REF # | 23004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-HEAD LAMP,BLACK | |
REF # | 23005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS-COMP,HEAD LAMP | |
REF # | 23007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET,BULB | |
REF # | 23017 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,HEAD LAMP | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,HEAD LAMP BODY | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL,BULB SOCKET | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LATCH,HEAD LAMP | |
REF # | 49031 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=11.9 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 65/60W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,HEAD LAMP HOLDER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,HEAD LAMP FITTING | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB,HEAD LAMP | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
