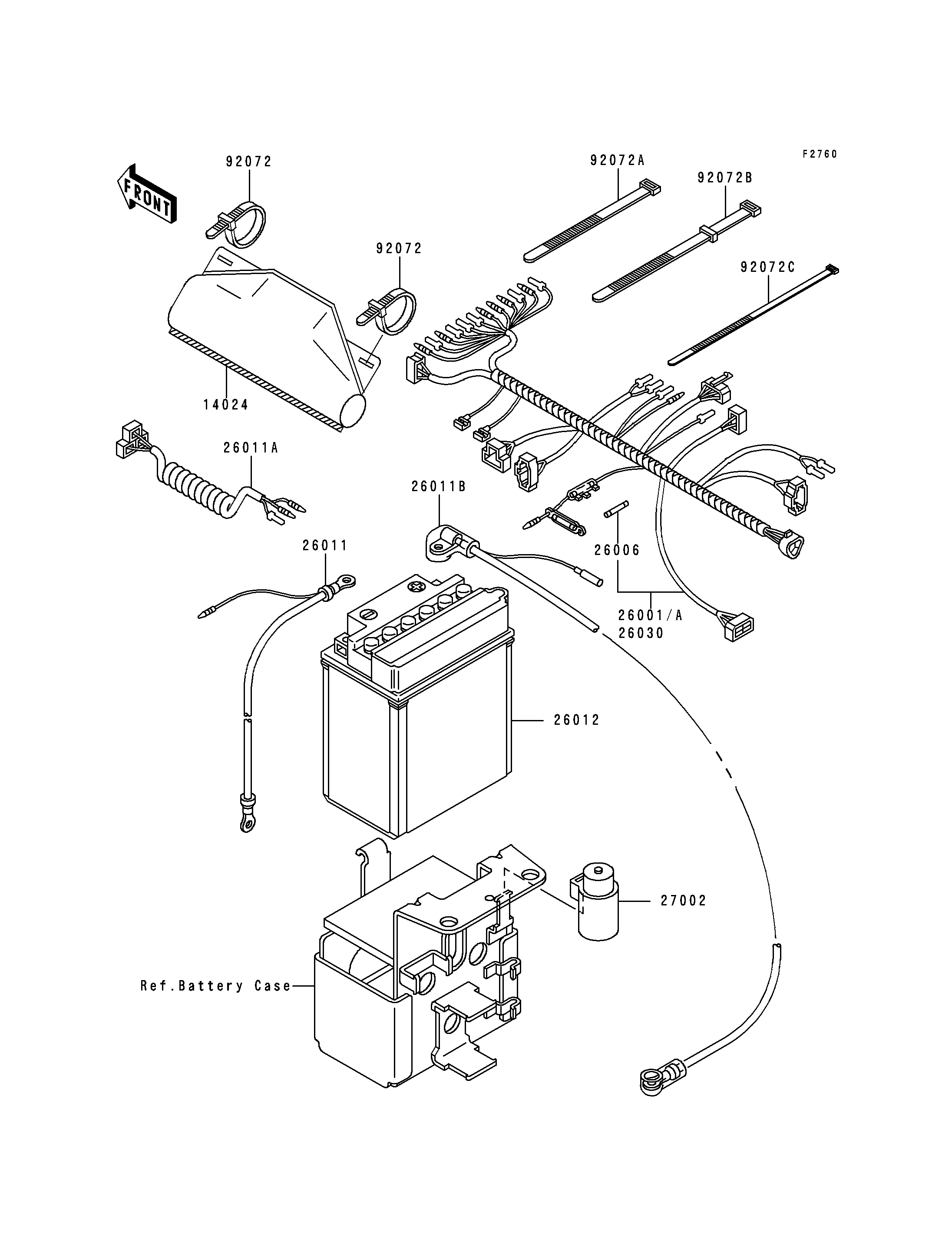

14024
26006
26011
26011A
26011B
92072
92072
92072A
92072B
92072C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,COUPLER 14024 14024-1624 1
FUSE,30A,L=30 26006 26006-1059 2
WIRE-LEAD,BATTERY(-) 26011 26011-1303 1
WIRE-LEAD,HEAD LAMP 26011A 26011-1405 1
WIRE-LEAD,BATTERY(+) 26011B 26011-1418 1
BAND,L=123 92072 92072-030 3
BAND,L=149 92072A 92072-031 2
BAND,L=186 92072B 92072-056 2
BAND,L=188 92072C 92072-1239 10
HARNESS,MAIN 26001A 26001-1937 1
BATTERY,12V 14AH,YB14A-A2 26012 26012-1146 1
HARNESS,MAIN 26030 26030-1063 1
RELAY-ASSY 27002 27002-1051 1
