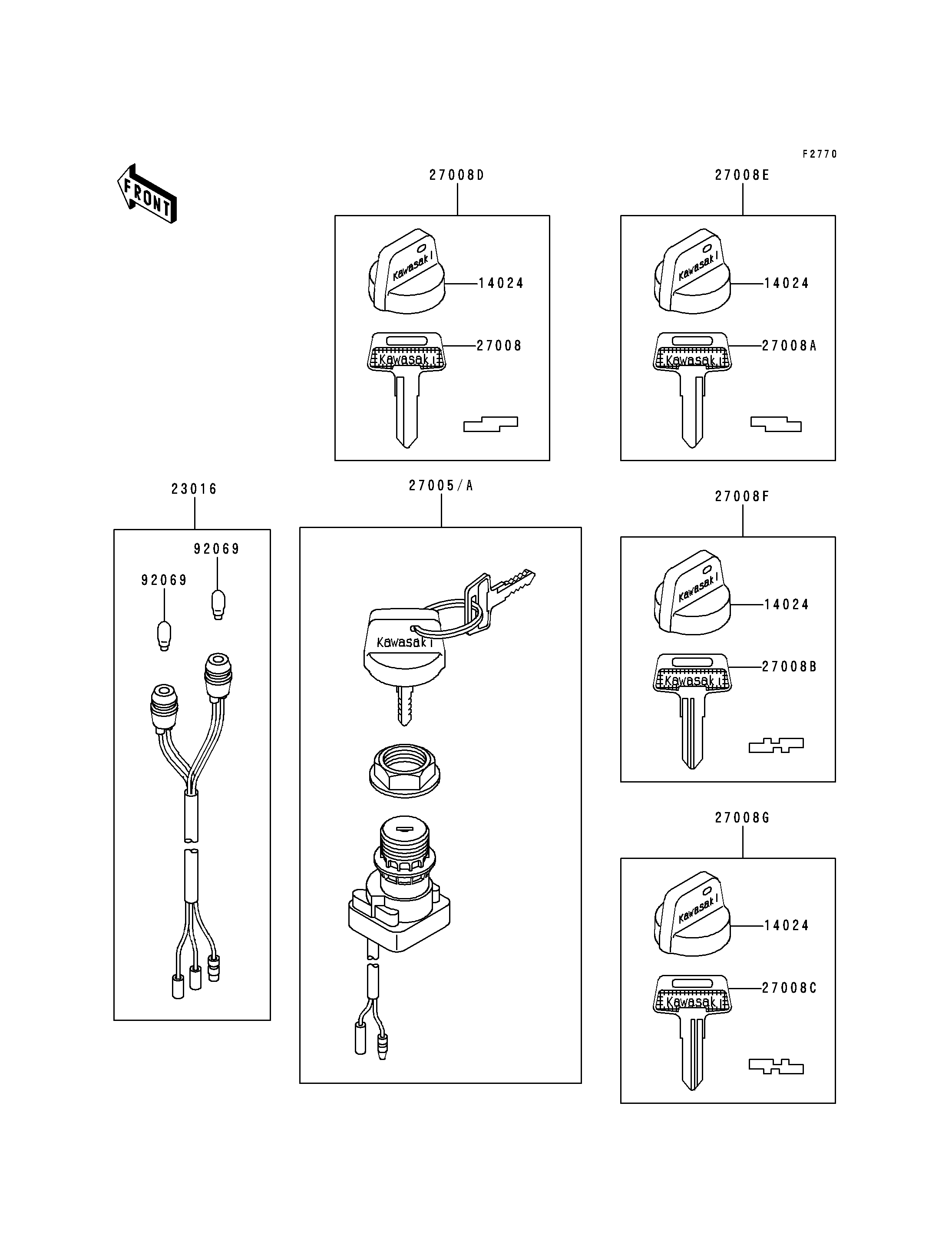

1991 Bayou 300 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
14024
14024
14024
14024
23016
27005A
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
92069
92069
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,KEY 14024 14024-1551 4 (OPTION)
LAMP-ASSY,NEUTRAL&REVERSE 23016 23016-1083 1
SWITCH-ASSY-IGNITION 27005A 27005-1159 1
KEY-LOCK,BLANK 27008 27008-1041 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1042 1 (OPTION)
KEY-LOCK,BLANK 27008B 27008-1043 1 (OPTION)
KEY-LOCK,BLANK 27008C 27008-1044 1 (OPTION)
KEY-LOCK,BLANK 27008D 27008-1132 1 (OPTION)
KEY-LOCK,BLANK 27008E 27008-1133 1 (OPTION)
KEY-LOCK,BLANK 27008F 27008-1134 1 (OPTION)
KEY-LOCK,BLANK 27008G 27008-1135 1 (OPTION)
BULB,12V3W T-7 92069 92069-1020 2
