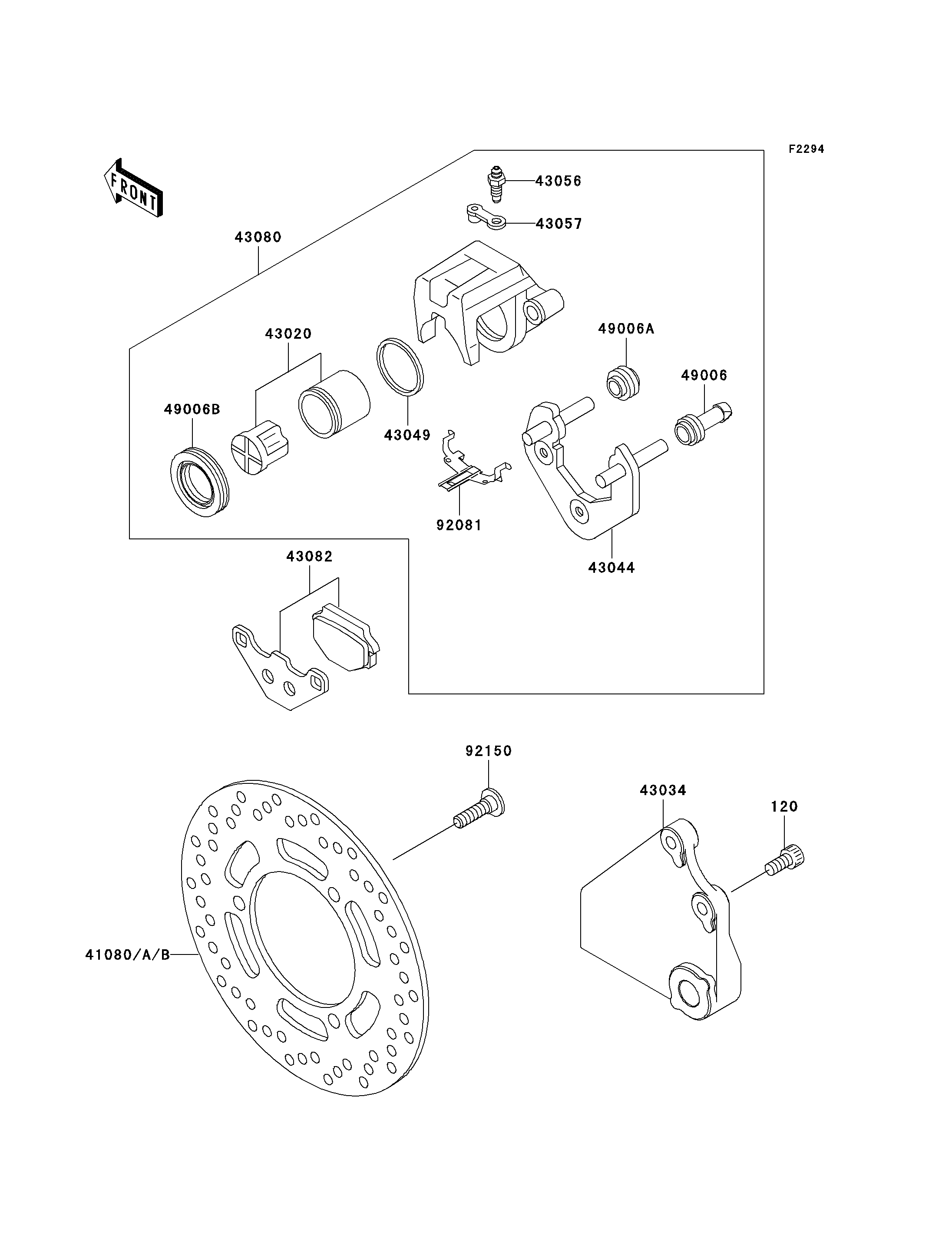

120
41080B
43020
43034
43044
43049
43056
43057
43080
43082
49006
49006A
49006B
92081
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X16 120 120CA0816 2
DISC,RR,BLACK 41080B 41080-0135-11H 1
PISTON-COMP-BRAKE 43020 43020-1082 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-1131 1
HOLDER-COMP-CALIPER,RR 43044 43044-1075 1
PACKING,PISTON SEAL 43049 43049-1095 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-5021-DJ 1
PAD-ASSY-BRAKE 43082 43082-1163 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
BOOT,PISTON 49006B 49006-1091 1
SPRING,PAD 92081 92081-1341 1
BOLT,SOCKET,8X30 92150 92150-1771 3
