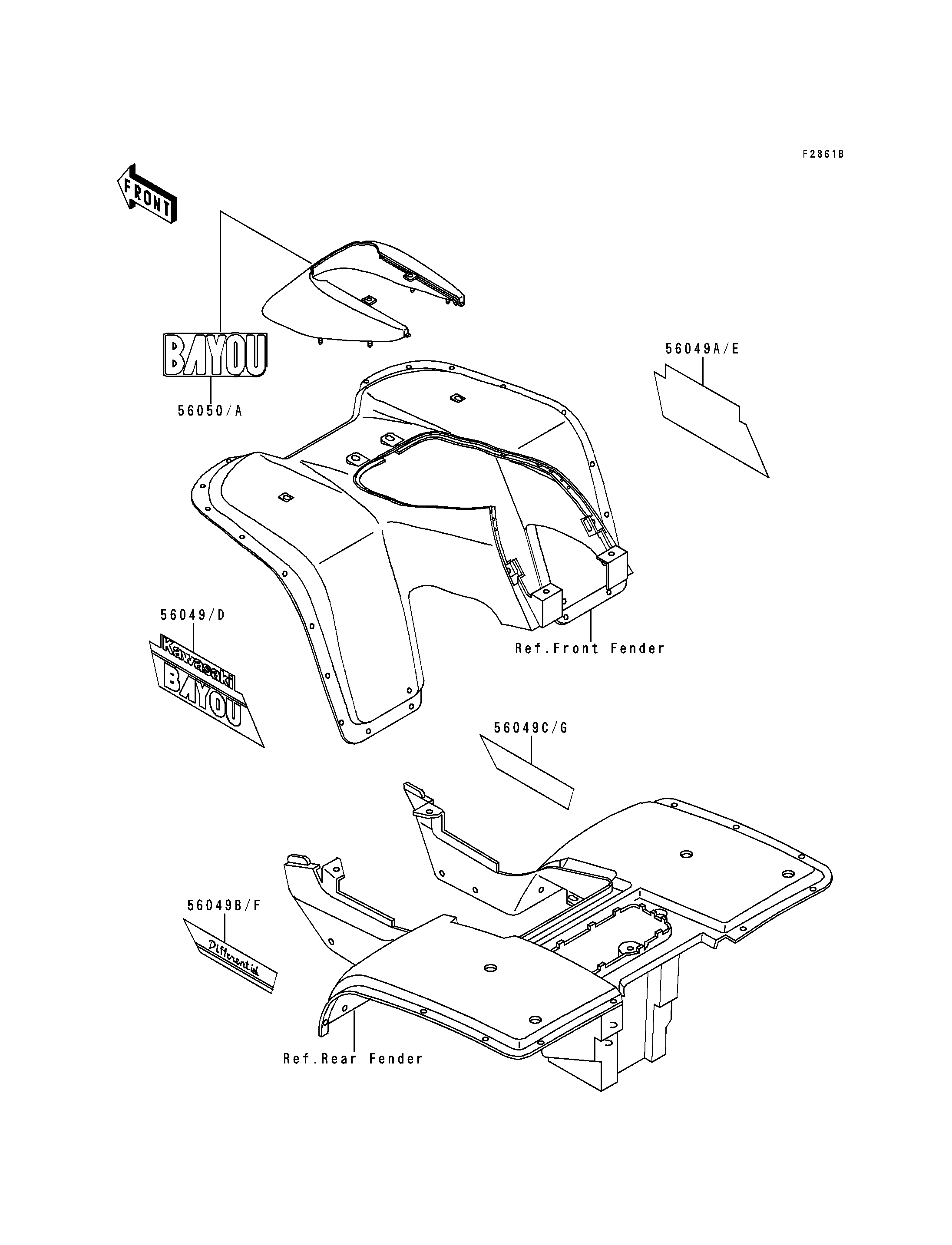

56049
56049A
56049B
56049C
56049D
56049E
56049F
56049G
56050
56050A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,FR FENDER,LH,FOR RED 56049 56049-1723 1
PATTERN,FR FENDER,RH,FOR RED 56049A 56049-1724 1
PATTERN,RR FENDER,LH,FOR RED 56049B 56049-1725 1
PATTERN,RR FENDER,RH,FOR RED 56049C 56049-1726 1
PATTERN,FR FENDER,LH,FOR BLACK 56049D 56049-1727 1
PATTERN,FR FENDER,RH,FOR BLACK 56049E 56049-1728 1
PATTERN,RR FENDER,LH,FOR BLACK 56049F 56049-1729 1
PATTERN,RR FENDER,RH,FOR BLACK 56049G 56049-1730 1
MARK,FR FENDER COVER,FR,BLACK 56050 56050-1571 1
MARK,FR FENDER COVER,FR,RED 56050A 56050-1572 1
