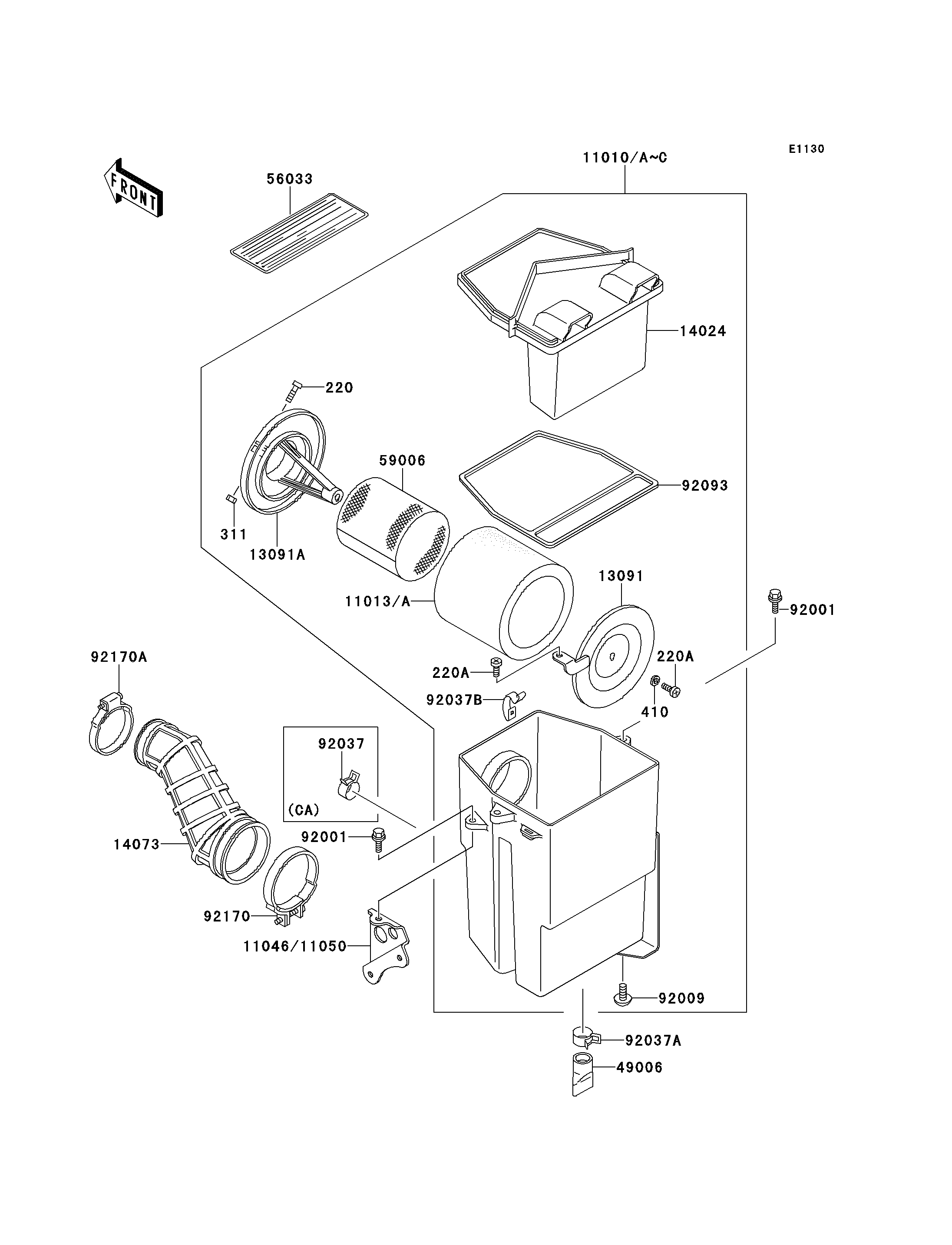

1997 Bayou 300 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
220
220A
220A
311
410
11010
11013
11046
13091
13091A
14024
14073
49006
56033
59006
92001
92001
92009
92037A
92037B
92093
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220B0516 1
SCREW-PAN-CROS,6X14 220A 220B0614 2
NUT-HEX 311 311B0500 1
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
FILTER-ASSY-AIR 11010 11010-1365 1
ELEMENT-AIR FILTER 11013 11013-1158 1
BRACKET,REGULATOR 11046 11046-1042 1
HOLDER,ELEMENT 13091 13091-1488 1
HOLDER,AIR FILTER ELEMENT 13091A 13091-1565 1
COVER,AIR FILTER 14024 14024-1703 1
DUCT 14073 14073-1372 1
BOOT 49006 49006-1199 1
LABEL-MANUAL,MAINTENANCE 56033 56033-1079 1
ARRESTER-FLAME 59006 59006-1052 1
BOLT,6X20 92001 92001-1460 3
SCREW,TAPPING,5X10 92009 92009-1332 2
CLAMP 92037A 92037-1460 1
CLAMP,AIR FILTER 92037B 92037-1783 4
SEAL,AIR FILTER 92093 92093-1241 1
CLAMP 92170 92170-1149 1
CLAMP 92170A 92170-1674 1
