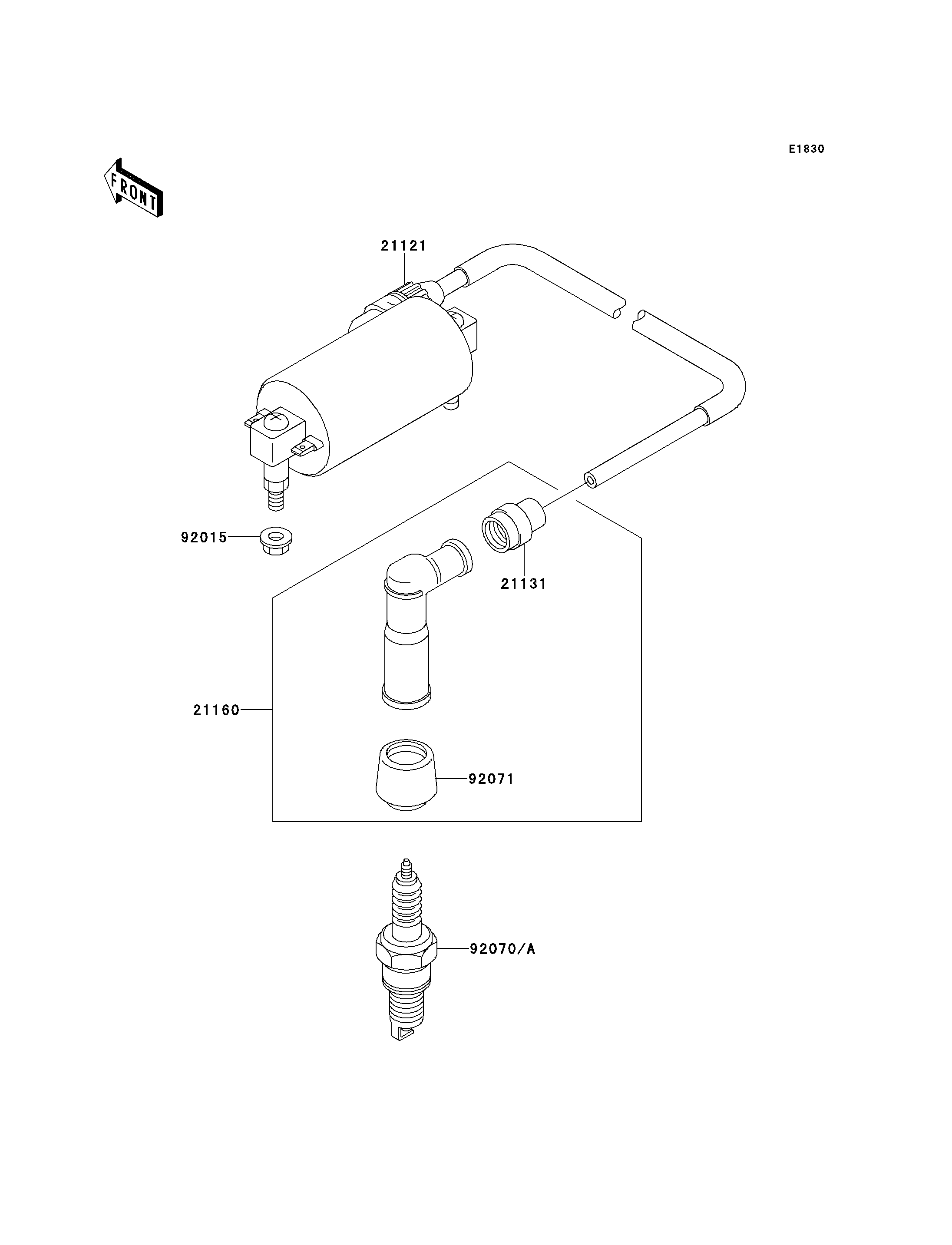

21121
21131
21160
92015
92071
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-1049 1
GROMMET,HIGH TENSION 21131 21131-005 1
CAP-ASSY-PLUG 21160 21160-1089 1
NUT,CAP,6M/M 92015 92015-1153 2
GROMMET,PLUG CAP 92071 92071-1184 1
PLUG-SPARK,D8EA(NGK) 92070 92070-1011 1 US
PLUG-SPARK,DR8EA(NGK) 92070A 92070-1199 1 CN
