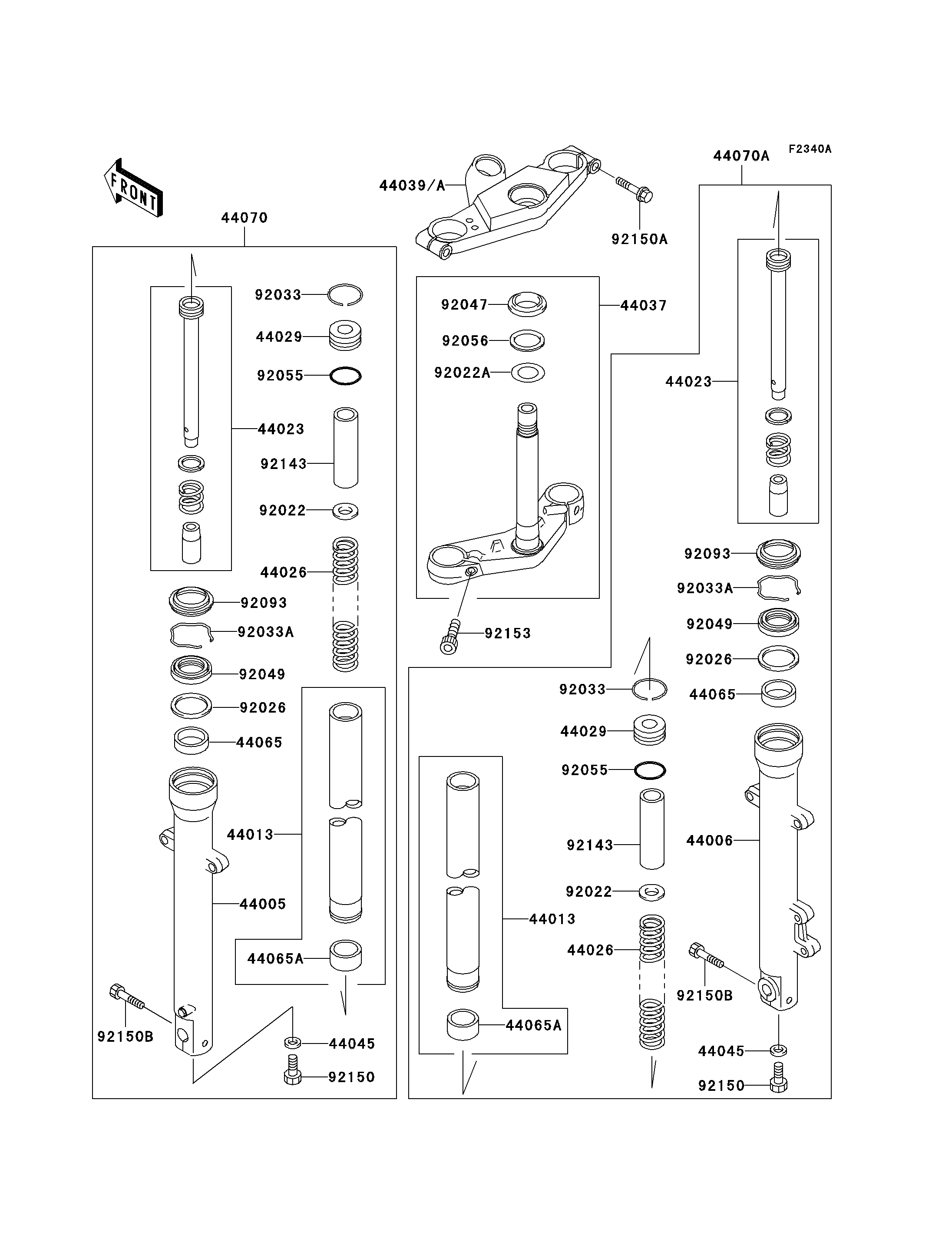

2008 Ninja® 500R - Front Fork(D7F-D9F)

DOWNLOAD PDF
SELECT A NEW PART
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44037
44039A
44045
44045
44065
44065
44065A
44065A
44070
44070A
92022
92022
92022A
92026
92026
92033
92033
92033A
92033A
92047
92049
92049
92055
92055
92056
92093
92093
92143
92143
92150
92150
92150A
92150B
92150B
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-LEFT FORK OUTER 44005 44005-1330 1
PIPE-RIGHT FORK OUTER 44006 44006-1330 1
PIPE-FORK INNER 44013 44013-1394 2
CYLINDER-COMP-FORK 44023 44023-1092 2
SPRING-FRONT FORK 44026 44026-1555 2
SEAT-FORK SPRING 44029 44029-1127 2
HOLDER-FORK UNDER 44037 44037-1319 1
HOLDER-FORK UPPER,BLACK 44039A 44039-1246-18R 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK 44065 44065-1109 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1110 2
DAMPER-ASSY,FORK,LH 44070 44070-1286 1
DAMPER-ASSY,FORK,RH 44070A 44070-1287 1
WASHER 92022 92022-1879 2
WASHER,30.5X50X0.6 92022A 92022-231 1
SPACER,FORK 92026 92026-1443 2
RING-SNAP 92033 92033-1236 2
RING-SNAP 92033A 92033-1286 2
RACE,STEERING STEM BEARING 92047 92047-012 1
SEAL-OIL,FORK OUTER 92049 92049-1421 2
RING-O,FORK SPRING SEAT 92055 92055-1384 2
SEAL-OIL,STEERING STEM 92056 92056-003 1
SEAL,FORK OUTER 92093 92093-1367 2
COLLAR,FORK,L=100 92143 92143-1682 2
BOLT,SOCKET,8X18 92150 92150-1432 2
BOLT 92150A 92150-1610 2
BOLT,SOCKET,8MM 92150B 92150-1613 2
BOLT,SOCKET,10X25 92153 92153-0301 2
