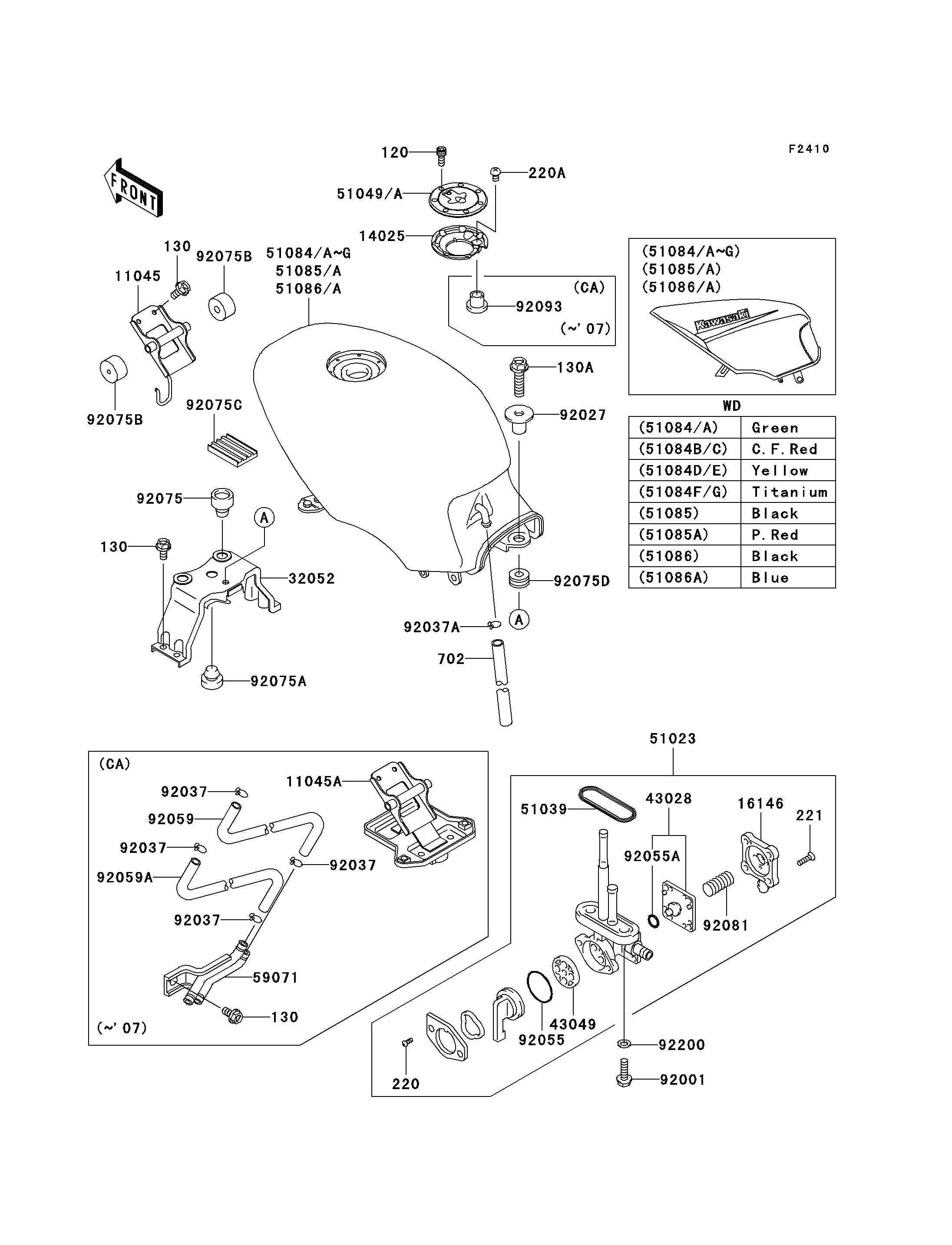

2008 Ninja® 500R - Fuel Tank(6/6)

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
11045
11045
11045
11045
14025
14025
14025
14025
14025
14025
16146
16146
16146
16146
16146
16146
32052
32052
32052
32052
32052
32052
43028
43028
43028
43028
43028
43028
43049
43049
43049
43049
43049
43049
51023
51023
51023
51023
51023
51023
51039
51039
51039
51039
51039
51039
51049
51049
51049
51049
51049
51049
51085
51085
51085
51085
51085
51085
92001
92001
92001
92001
92001
92001
92027
92027
92027
92027
92027
92027
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055A
92055A
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92075B
92075B
92075B
92075B
92075B
92075B
92075B
92075B
92075C
92075C
92075C
92075C
92075C
92075C
92075D
92075D
92075D
92075D
92075D
92075D
92081
92081
92081
92081
92081
92081
92200
92200
92200
92200
92200
92200
120
120
120
120
120
120
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
220
220
220
220
220
220
220A
220A
220A
220A
220A
220A
221
221
221
221
221
221
702
702
702
702
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,FR 11045 11045-1362 1
COVER,TANK CAP 14025 14025-1913 1
COVER-ASSY,TAP DIAPHRAGM 16146 16146-1010 1
BRACKET-TANK,FUEL,RR 32052 32052-1394 1
DIAPHRAGM 43028 43028-1033 1
PACKING 43049 43049-1103 1
TAP-ASSY,FUEL 51023 51023-1389 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-0018 1
TANK-COMP-FUEL,M.D,BLACK 51085 51085-5304-17K 1
BOLT,6X20 92001 92001-1091 2
COLLAR,L=19.3 92027 92027-1780 1
CLAMP 92037A 92037-1712 1
RING-O,TAP LEVER 92055 92055-1085 1
RING-O 92055A 92055-1664 1
DAMPER 92075 92075-015 2
DAMPER 92075A 92075-1045 1
DAMPER,FUEL TANK,FR 92075B 92075-1115 2
DAMPER 92075C 92075-1489 2
DAMPER 92075D 92075-1736 1
SPRING,TAP DIAPHRAGM 92081 92081-1240 1
WASHER,6.5X11.5X0.8 92200 92200-0117 2
BOLT-SOCKET,5X12 120 120CB0512 7
BOLT-FLANGED,6X12 130 130AA0612 6
BOLT-FLANGED,8X30 130A 130BA0830 1
SCREW-PAN-CROS,3X8 220 220AA0308 2
SCREW-PAN-CROSS,5X8 220A 220AB0508 1
SCREW-CSK-CROS,4X14 221 221AA0414 4
TUBE-RUBBER,7X10X380 702 702A07380 1
TANK-COMP-FUEL,P.RED 51085A 51085-5305-234 1 US
