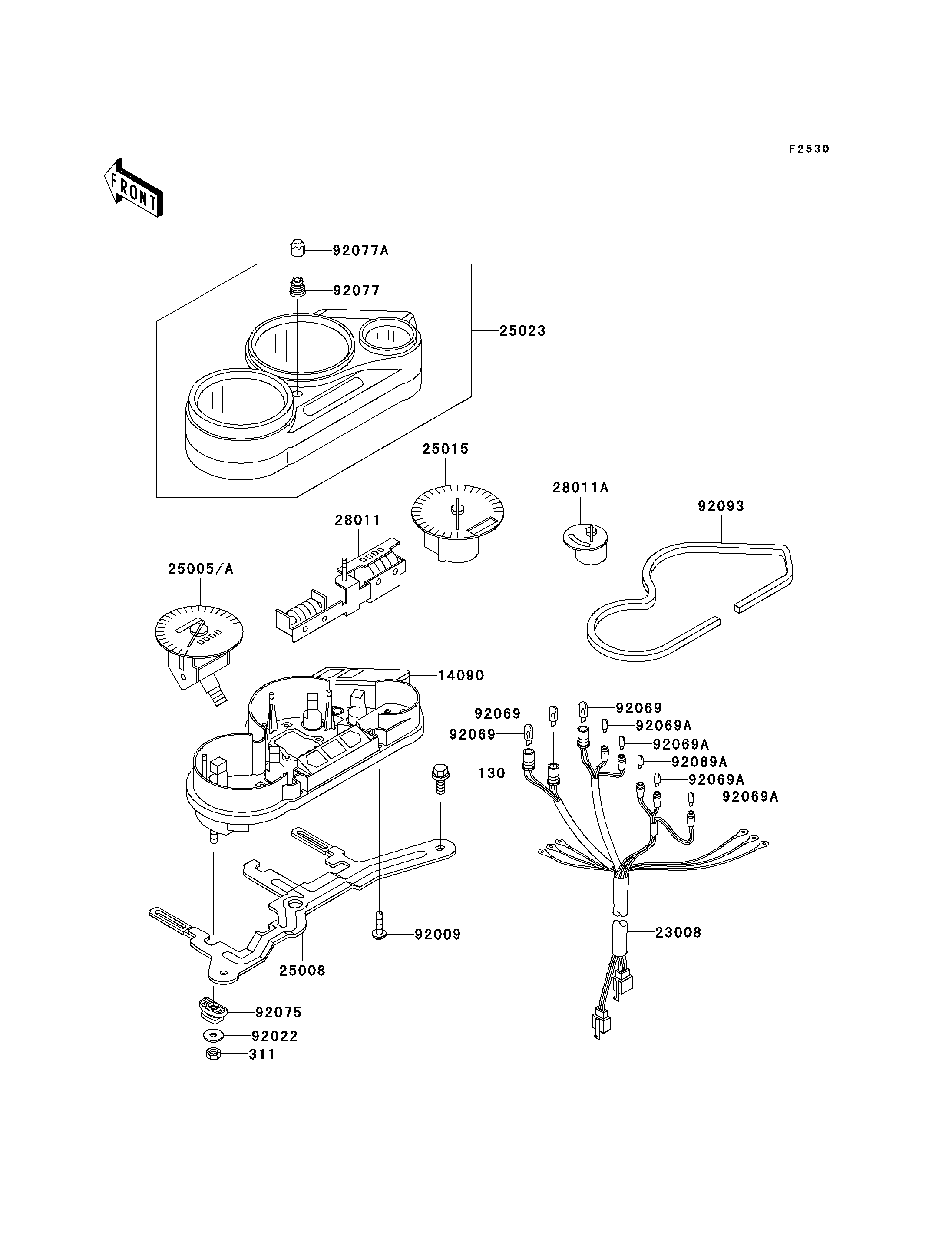

2008 Ninja® 500R - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
130
311
14090
23008
25008
25015
25023
28011
28011A
92009
92022
92069
92069
92069
92069A
92069A
92069A
92069A
92069A
92075
92077
92077A
92093
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130AB0612 2
NUT-HEX 311 311AA0500 3
COVER,METER HOUSING 14090 14090-1869 1
SOCKET-ASSY,METER 23008 23008-1431 1
BRACKET-METER 25008 25008-1160 1
TACHOMETER,X1000R/MIN 25015 25015-1327 1
COVER-METER CASE,UPP 25023 25023-1167 1
METER,TRIP 28011 28011-1118 1
METER,TEMP 28011A 28011-1144 1
SCREW,TAPPING,4X16 92009 92009-1163 5
WASHER,5.2X16X1.2 92022 92022-263 3
BULB,12V 1.7W,T10 92069 92069-1059 3
BULB,12V 3W,T6.5 92069A 92069-1068 5
DAMPER,METER BRACKET 92075 92075-1495 3
KNOB,TRIP RESET 92077 92077-1087 1
KNOB,TRIP RESET 92077A 92077-1094 1
SEAL 92093 92093-1373 1
SPEEDOMETER,KPH 25005 25005-1706 1 CN
SPEEDOMETER,MPH 25005A 25005-1729 1 US
