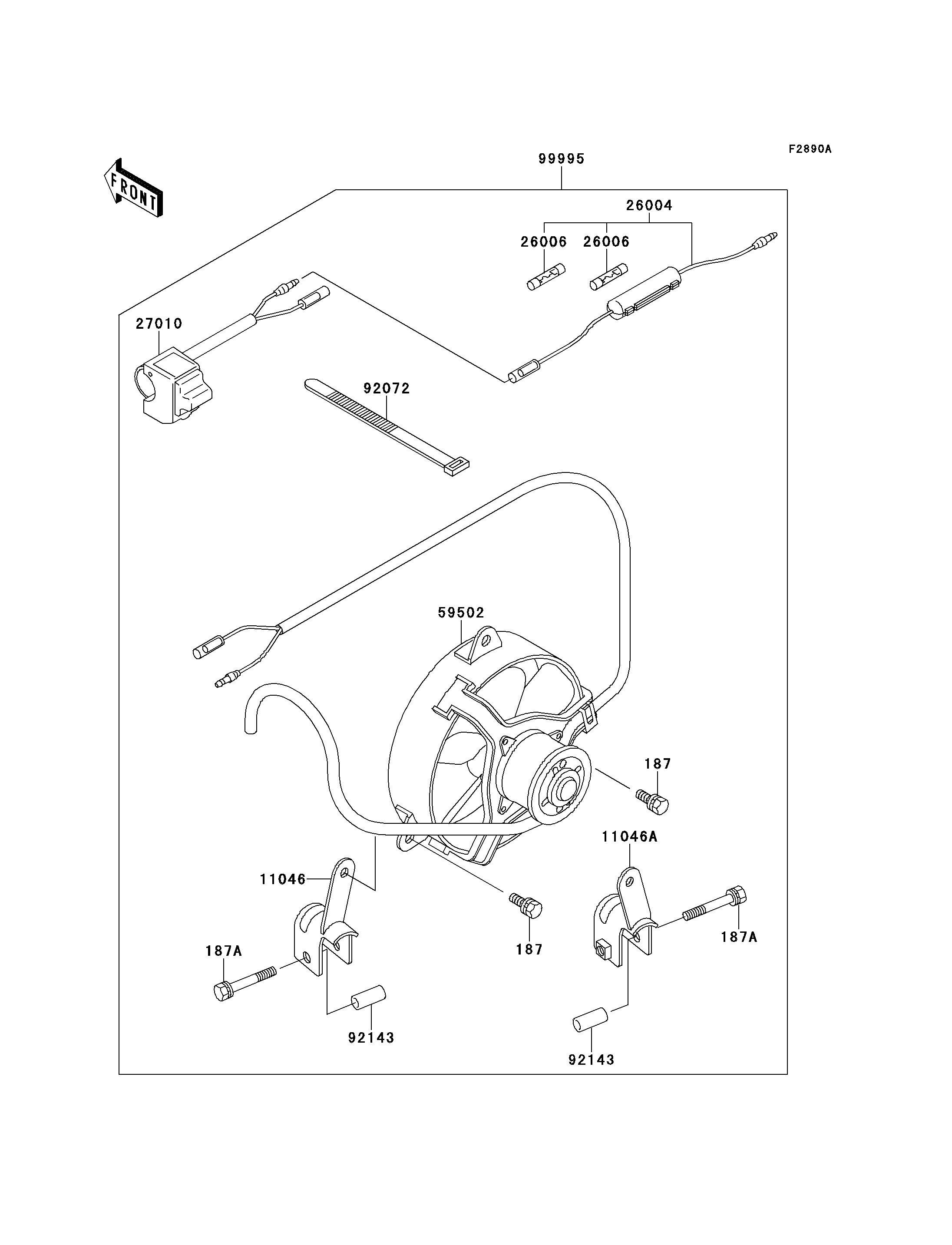

1997 Bayou 300 - Optional Parts(CN)(Cooling Fan)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187J0616 3 CN
BOLT-UPSET-WSP 187A 187J0640 2 CN
BRACKET,FAN,LH 11046 11046-1242 1 CN
BRACKET,FAN,RH 11046A 11046-1243 1 CN
FUSE-ASSY 26004 26004-1077 1 CN
FUSE,10A,L=30 26006 26006-1002 2 CN
SWITCH,FAN 27010 27010-1250 1 CN
FAN-ASSY,COOLING 59502 59502-1078 1 CN
BAND,L=149 92072 92072-031 1 CN
COLLAR,6.8X10X21.7 92143 92143-1225 2 CN
KIT.,COOLING FAN 99995 99995-1012 1 CN
