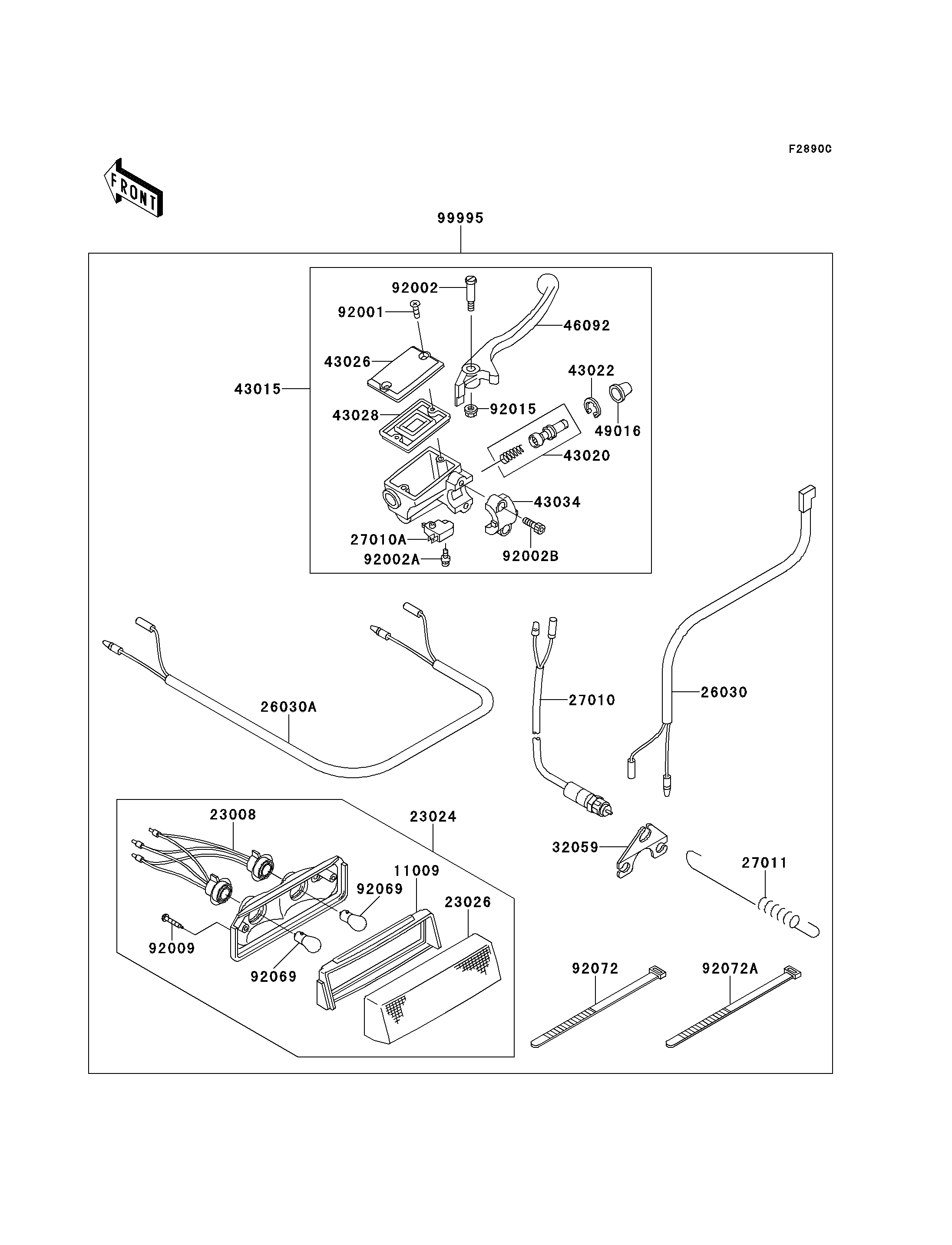

1998 Bayou 300 - Optional Parts(CN)(Brake Switch)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAIL LAMP | 11009 | 11009-1404 | 1 | CN | |
| SOCKET-ASSY,TAIL LAMP | 23008 | 23008-1461 | 1 | CN | |
| LAMP-ASSY-TAIL | 23024 | 23024-1121 | 1 | CN | |
| LENS,TAIL LAMP | 23026 | 23026-1056 | 1 | CN | |
| HARNESS | 26030 | 26030-1058 | 1 | CN | |
| HARNESS,REAR BRAKE | 26030A | 26030-1062 | 1 | CN | |
| SWITCH,BRAKE LAMP | 27010 | 27010-025 | 1 | CN | |
| SWITCH,BRAKE | 27010A | 27010-1170 | 1 | CN | |
| SPRING,SWITCH | 27011 | 27011-014 | 1 | CN | |
| BRACKET-SWITCH,REAR BRAKE | 32059 | 32059-1107 | 1 | CN | |
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1438 | 1 | CN | |
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1056 | 1 | CN | |
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | CN | |
| CAP-BRAKE | 43026 | 43026-1059 | 1 | CN | |
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | CN | |
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | CN | |
| LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1167 | 1 | CN | |
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | CN | |
| SCREW,5MM,BLACK | 92001 | 92001-1727 | 2 | CN | |
| BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | CN | |
| BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | CN | |
| BOLT,SOCKET,6X20,BLACK | 92002B | 92002-1324 | 2 | CN | |
| SCREW,TAPPING,4X30 | 92009 | 92009-1056 | 2 | CN | |
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | CN | |
| BULB,12V 27/8W | 92069 | 92069-059 | 2 | CN | |
| BAND,L=123 | 92072 | 92072-030 | 6 | CN | |
| BAND,L=186 | 92072A | 92072-056 | 1 | CN | |
| KIT.,BRAKE SWITCH | 99995 | 99995-1441 | 1 | CN |
| GASKET,TAIL LAMP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SOCKET-ASSY,TAIL LAMP | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LAMP-ASSY-TAIL | |
| REF # | 23024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 23026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| HARNESS | |
| REF # | 26030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| HARNESS,REAR BRAKE | |
| REF # | 26030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SWITCH,BRAKE LAMP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SWITCH,BRAKE | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SPRING,SWITCH | |
| REF # | 27011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BRACKET-SWITCH,REAR BRAKE | |
| REF # | 32059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CYLINDER-ASSY-MASTER,FR | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PISTON-COMP-BRAKE,FR | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| STOPPER-BRAKE,PISTON | |
| REF # | 43022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CAP-BRAKE | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| DIAPHRAGM,MASTER CYLINDER | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| HOLDER-BRAKE,MASTER CYLINDER | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LEVER-GRIP,FRONT BRAKE | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER-SEAL,MASTER CYLINDER | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SCREW,5MM,BLACK | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,LEVER SET,BLACK | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,SCREW,4X12 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,SOCKET,6X20,BLACK | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| SCREW,TAPPING,4X30 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| NUT,FLANGED,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BULB,12V 27/8W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CN |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| KIT.,BRAKE SWITCH | |
| REF # | 99995 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
