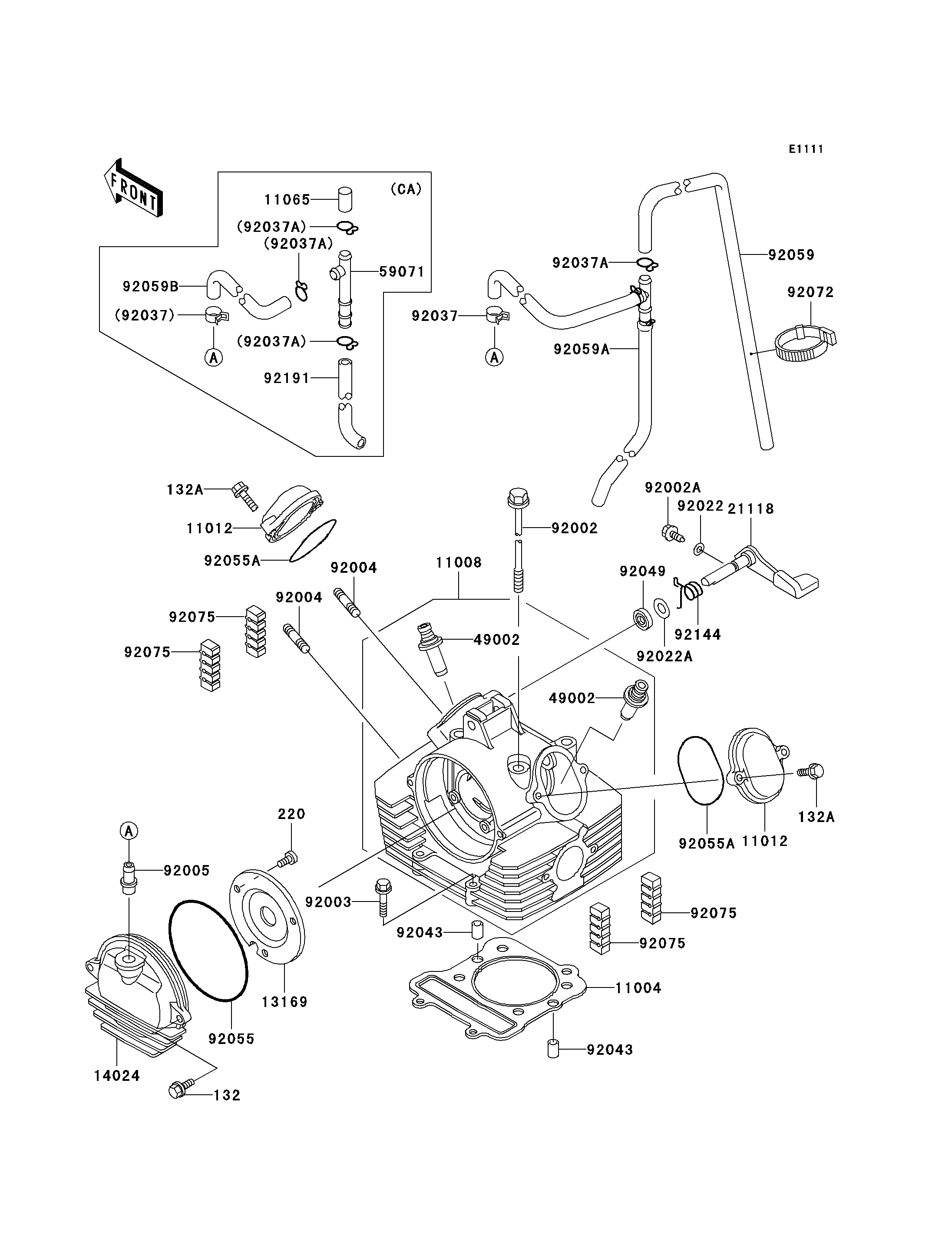

2004 Bayou 300 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
220
11004
11008
11012
11012
13169
14024
21118
49002
49002
92002
92002A
92003
92004
92004
92005
92022
92022A
92037
92043
92043
92049
92055
92055A
92055A
92075
92075
92075
92075
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0616 2
BOLT-FLANGED-SMALL 132A 132Y0625 4
SCREW-PAN-CROS,6X10 220 220B0610 3
GASKET-HEAD 11004 11004-1340 1
HEAD-COMP-CYLINDER 11008 11008-1292 1
CAP,ROCKER ARM 11012 11012-1486 2
PLATE,CAMSHAFT COVER 13169 13169-1961 1
COVER,CAMSHAFT 14024 14024-1060 1
DECOMPRESSOR,LEVER 21118 21118-1062 1
GUIDE-VALVE 49002 49002-1092 AR
BOLT,8X233 92002 92002-1515 4
BOLT,DECOMPRESSOR 92002A 92002-1962 1
BOLT,FLANGED,6X32 92003 92003-229 2
STUD,8X30 92004 92004-1121 2
FITTING,BREATHER PIPE 92005 92005-1124 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,10.2X20X0.5 92022A 92022-1649 1
CLAMP 92037 92037-1181 1
PIN,8.2X10X14 92043 92043-1264 2
SEAL-OIL 92049 92049-1542 1
RING-O,99MM 92055 92055-107 1
RING-O,53.5X2.6 92055A 92055-112 2
DAMPER 92075 92075-1657 4
SPRING,DECOMPRESSOR 92144 92144-1154 1
CAP 11065 11065-1075 1 CA
JOINT 59071 59071-1124 1 CA
CLAMP,FUEL TUBE 92037A 92037-1271 1 US
CLAMP,FUEL TUBE 92037A 92037-1271 3 CA
TUBE,BREATHER 92059 92059-1511 1 US
TUBE,ASSY 92059A 92059-1787 1 US
TUBE 92059B 92059-1789 1 CA
BAND,L=149 92072 92072-031 1 US
TUBE 92191 92191-1170 1 CA
