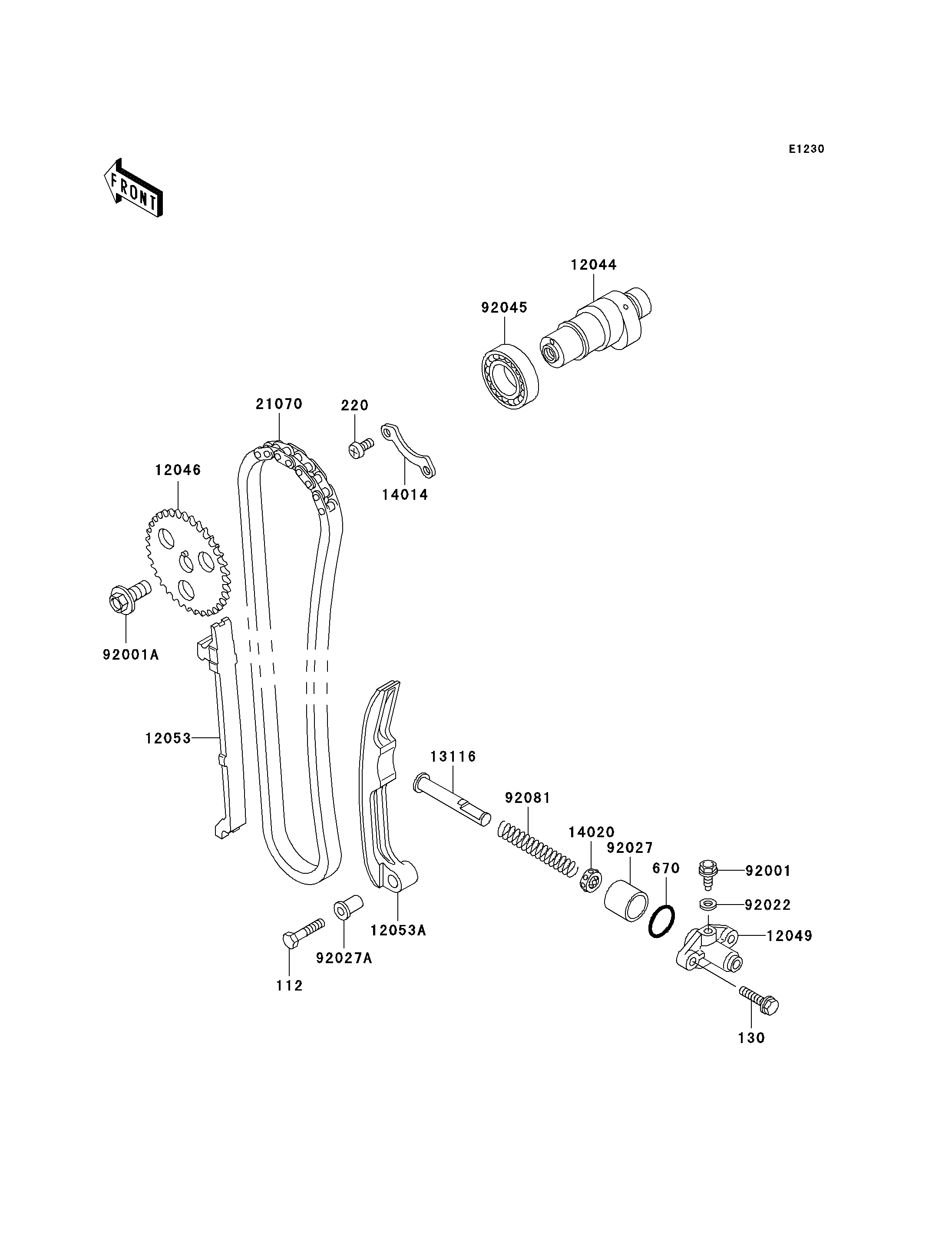

2004 Bayou 300 - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
112
130
220
670
12044
12046
12049
12053
12053A
13116
14014
14020
21070
92001
92001A
92022
92027
92027A
92045
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0630 1
BOLT-FLANGED 130 130Y0625 2
SCREW-PAN-CROS,6X10 220 220B0610 2
O RING,21MM 670 670B2021 1
CAMSHAFT-VALVE 12044 12044-1339 1
SPROCKET,CAM CHAIN,32T 12046 12046-1037 1
TENSIONER,CAM CHAIN 12049 12049-1055 1
GUIDE-CHAIN,CAM 12053 12053-023 1
GUIDE-CHAIN,CAM 12053A 12053-024 1
ROD-PUSH,TENSIONER 13116 13116-1019 1
PLATE-POSITION 14014 14014-1030 1
RETAINER,TENSIONER 14020 14020-1054 1
CHAIN,CAMSHAFT,BF05TX90L 21070 21070-013 1
BOLT,TENSIONER ADJUST 92001 92001-1155 1
BOLT,10X23 92001A 92001-1859 1
WASHER,6.1X12X1 92022 92022-077 1
COLLAR,TENSIONER 92027 92027-1273 1
COLLAR,L=17.6 92027A 92027-155 1
BEARING-BALL,#6005C4 92045 92045-1056 1
SPRING,TENSIONER 92081 92081-1105 1
