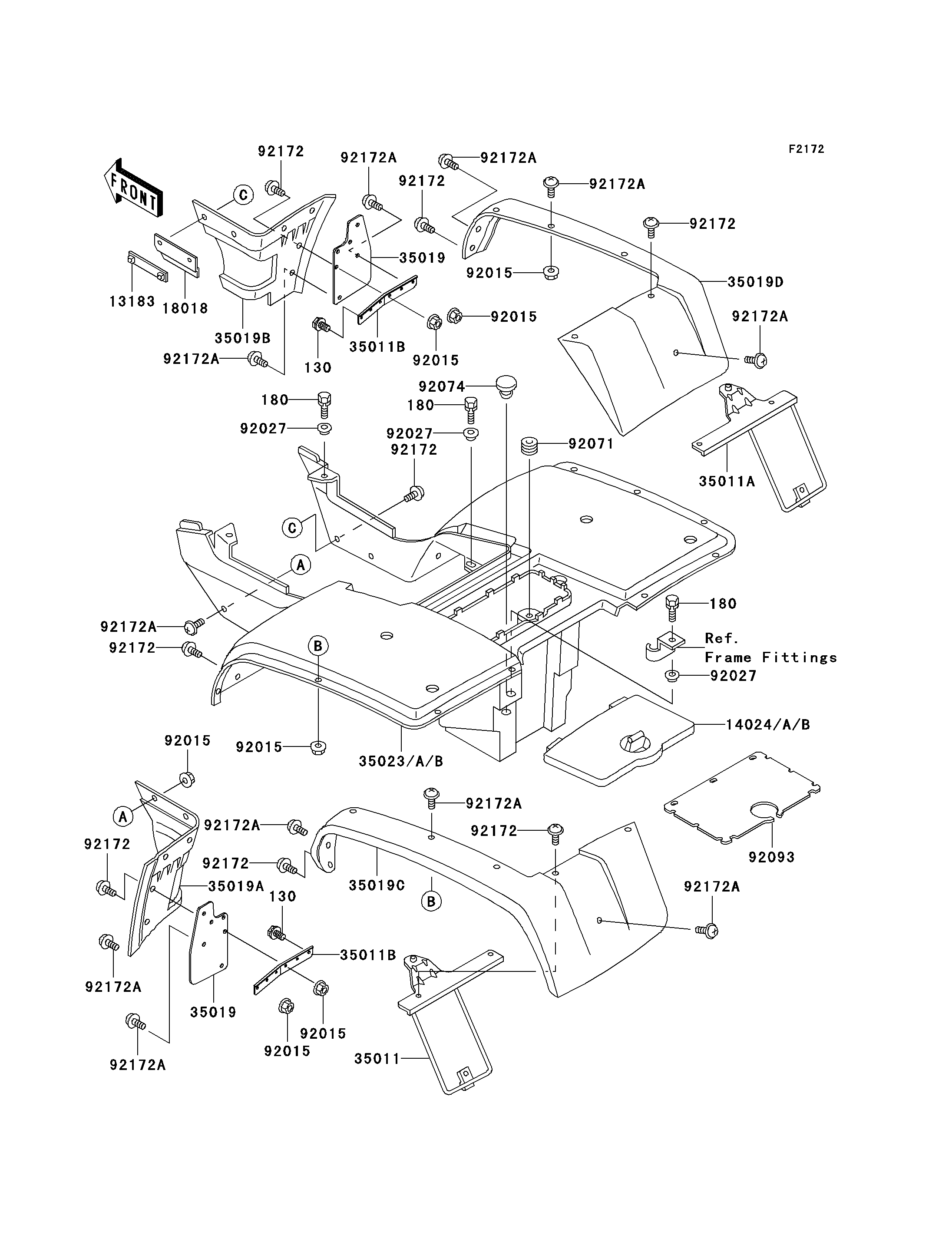

2004 Bayou 300 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
180
180
180
13183
14024
14024A
18018
35011
35011A
35011B
35011B
35019
35019
35019A
35019B
35019C
35019D
35023
35023A
92015
92015
92015
92015
92015
92015
92015
92027
92027
92027
92071
92074
92093
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10,BLACK 130 130C0610 4
BOLT-UPSET-WS 180 180D0618 6
PLATE,HEAT GUARD 13183 13183-1035 1
COVER,REAR FENDER,A.RED 14024 14024-1095-260 1
COVER,REAR FENDER,H.GREEN 14024A 14024-1095-6A 1
PLATE-HEAT GUARD 18018 18018-1071 1
STAY,REAR FLAP,LH 35011 35011-1418 1
STAY,REAR FLAP,RH 35011A 35011-1419 1
STAY,FLAP,OUTER 35011B 35011-1435 2
FLAP,FR,OUTER 35019 35019-1224 2
FLAP,FR,LH 35019A 35019-1225 1
FLAP,FR,RH 35019B 35019-1226 1
FLAP,RR,LH 35019C 35019-1227 1
FLAP,RR,RH 35019D 35019-1228 1
FENDER-REAR,A.RED 35023 35023-1139-260 1
FENDER-REAR,H.GREEN 35023A 35023-1139-6A 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 22
COLLAR,L=5.6 92027 92027-1933 6
GROMMET 92071 92071-1131 1
PLUG,11X3.2 92074 92074-038 1
SEAL,REAR FENDER COVER 92093 92093-1537 1
SCREW,6X18 92172 92172-0002 12
SCREW,6X14 92172A 92172-0004 18
