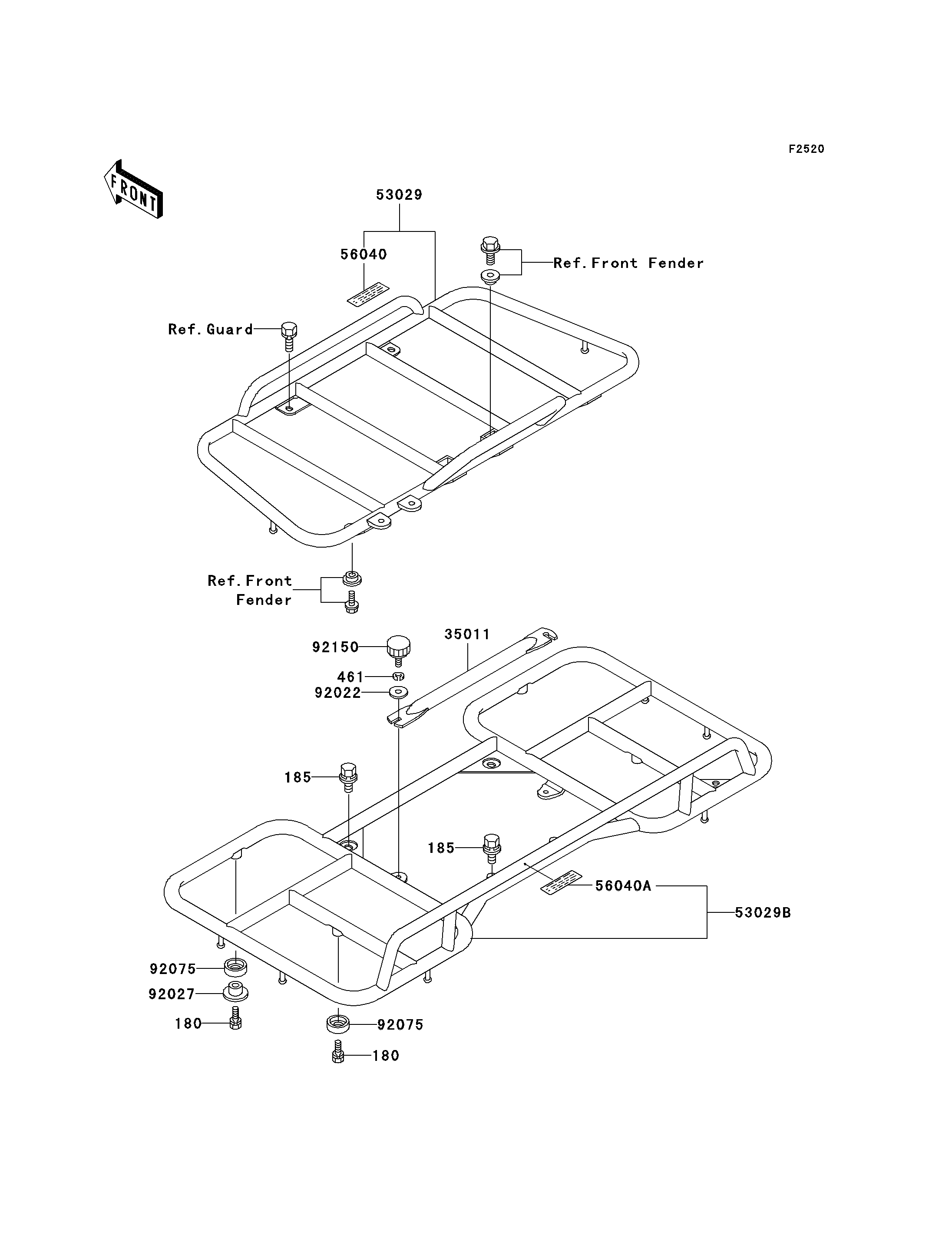

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180D0618 4
BOLT-UPSET-WSP-SMALL 185 185C0816 4
WASHER-SPRING,6MM,BLACK 461 461K0600 2
STAY,REAR CARRIER,GRAY 35011 35011-1834-1U 1
CARRIER,FR,GRAY 53029 53029-1180-1U 1
CARRIER,RR,GRAY 53029B 53029-1184-1U 1
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1259 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1260 1
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
COLLAR 92027 92027-1906 2
DAMPER 92075 92075-1763 4
BOLT,6MM 92150 92150-1067 2
