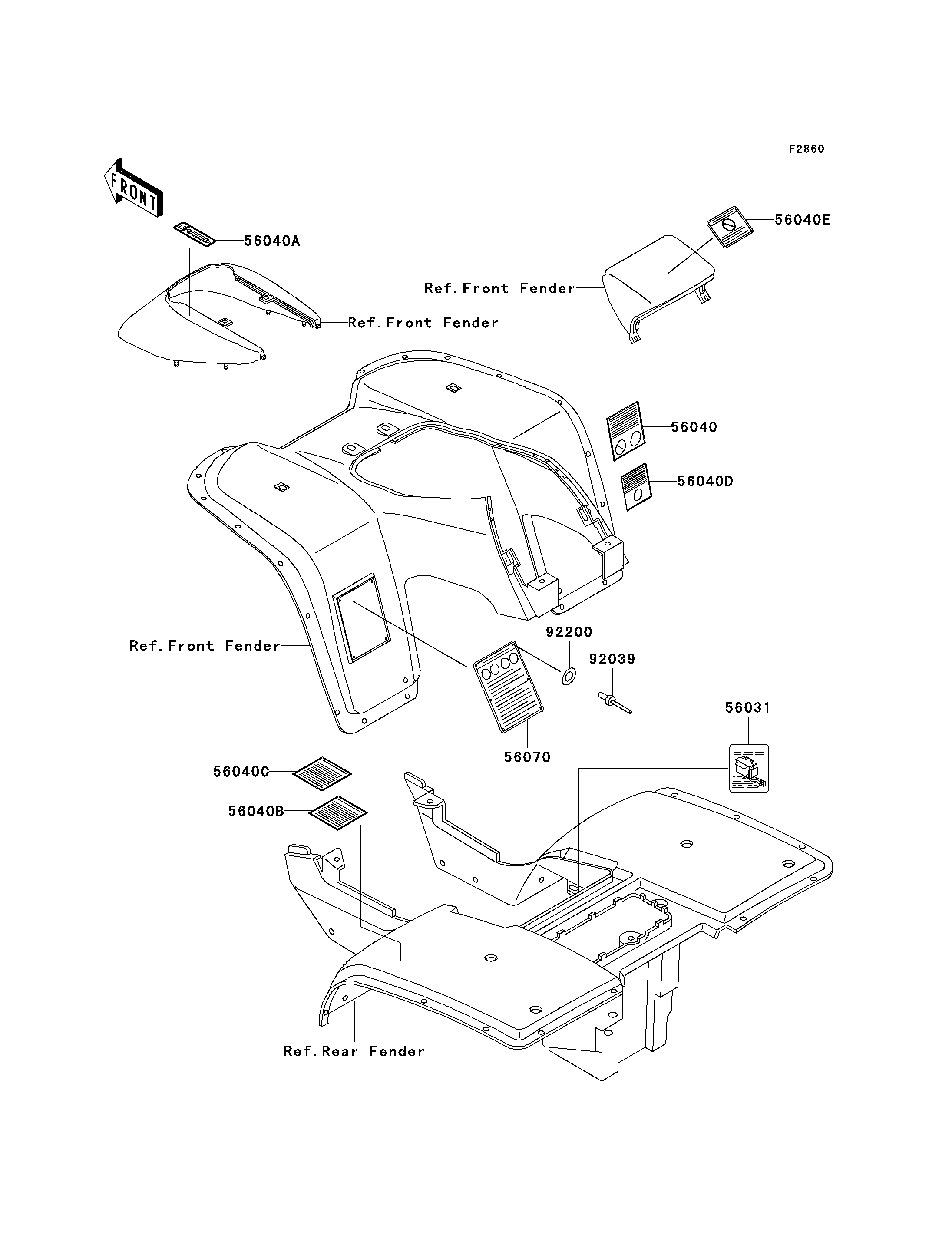

56031
56040
56040A
56040B
56040C
56040D
56040E
56070
92039
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,BATTERY VENT 56031 56031-1607 1
LABEL-WARNING,TRANSPORT 56040 56040-1261 1
LABEL-WARNING,SHIFT PATTERN 56040A 56040-1262 1
LABEL-WARNING,TIRE PRESSURE 56040B 56040-1272 1
LABEL-WARNING,LOAD 56040C 56040-1274 1
LABEL-WARNING,DIFFERENTIAL 56040D 56040-1275 1
LABEL-WARNING,UNDER 16 56040E 56040-1276 1
LABEL-WARNING,SERIOUS INJURY 56070 56070-1151 1
RIVET 92039 92039-1235 6
WASHER,3.5X8X1 92200 92200-1251 6
