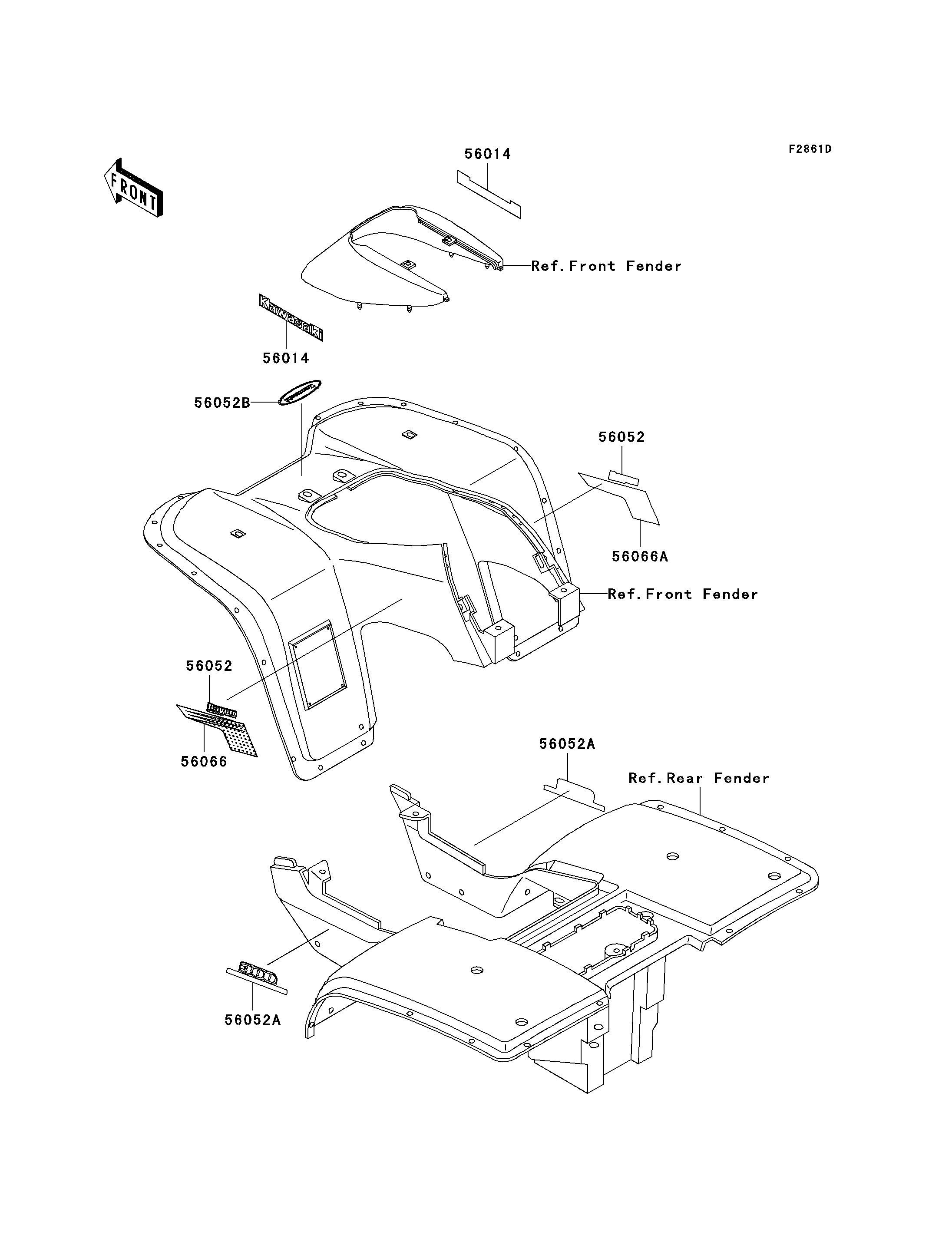

56014
56014
56052
56052
56052A
56052A
56052B
56066
56066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,KAWASAKI 56014 56014-1409 2
MARK,FR FENDER,BAYOU 56052 56052-0118 2
MARK,RR FENDER,300 56052A 56052-0149 2
MARK,FR FENDER,KAWASAKI 56052B 56052-1504 1
PATTERN,FR FENDER,LH 56066 56066-0306 1
PATTERN,FR FENDER,RH 56066A 56066-0307 1
