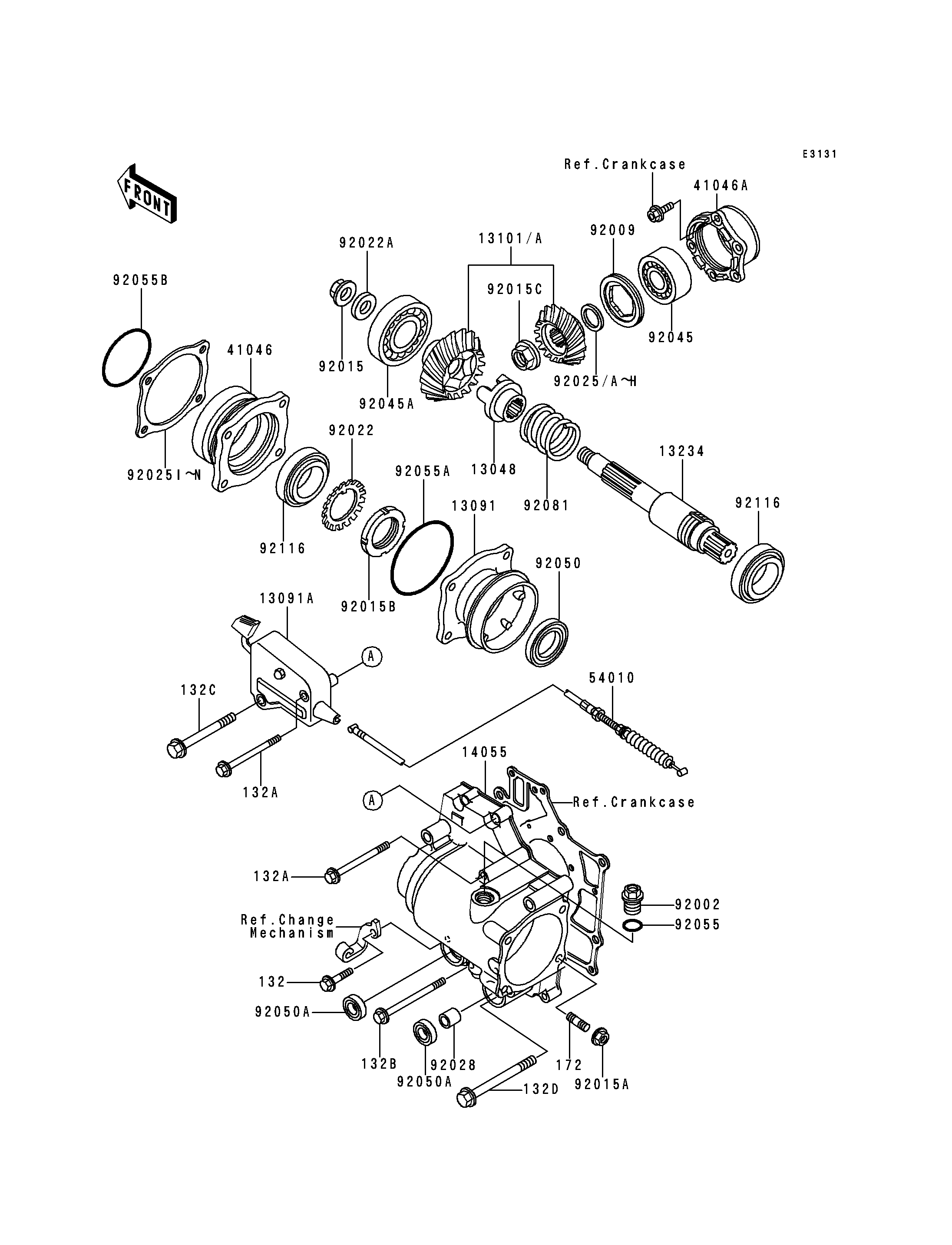

Parts Diagrams |
13048
13048
13091
13091
13091A
13091A
13234
13234
14055
14055
41046
41046
41046A
41046A
54010
54010
92002
92002
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92022
92022
92022A
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92025N
92025N
92028
92028
92045
92045
92045A
92045A
92050
92050
92050A
92050A
92050A
92050A
132
132
132A
132A
132A
132A
132B
132B
132C
132C
132D
132D
172
172
92055
92055
92055A
92055A
92055B
92055B
92081
92081
92116
92116
92116
92116
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAM-DAMPER,FR | 13048 | 13048-1059 | 1 | ||
HOLDER,GEAR CASE,FR | 13091 | 13091-1377 | 1 | ||
HOLDER,DIFF LOCK | 13091A | 13091-1410 | 1 | ||
SHAFT-COMP,GEAR CASE,FR | 13234 | 13234-1085 | 1 | ||
CASE-GEAR | 14055 | 14055-1125 | 1 | ||
HOUSING-BEARING,GEAR CASE,FR | 41046 | 41046-1066 | 1 | ||
HOUSING-BEARING,GEAR CASE,FR | 41046A | 41046-1098 | 1 | ||
CABLE | 54010 | 54010-1069 | 1 | ||
BOLT,16X10 | 92002 | 92002-1238 | 1 | ||
SCREW,55MM | 92009 | 92009-1384 | 1 | ||
NUT,FLANGED,14MM | 92015 | 92015-1341 | 1 | ||
NUT,8MM | 92015A | 92015-1402 | 4 | ||
NUT,RING 35MM | 92015B | 92015-1515 | 1 | ||
NUT | 92015C | 92015-1581 | 1 | ||
WASHER,LOCK | 92022 | 92022-1687 | 1 | ||
WASHER,14.2X28X2.6 | 92022A | 92022-1688 | 1 | ||
SHIM,20.3X28X1.3 | 92025 | 92025-1533 | AR | ||
SHIM,20.3X28X0.7 | 92025A | 92025-1534 | AR | ||
SHIM,20.3X28X0.8 | 92025B | 92025-1535 | AR | ||
SHIM,20.3X28X0.9 | 92025C | 92025-1536 | AR | ||
SHIM,20.3X28X1.0 | 92025D | 92025-1537 | AR | ||
SHIM,20.3X28X1.2 | 92025E | 92025-1538 | AR | ||
SHIM,20.3X28X0.15 | 92025F | 92025-1573 | AR | ||
SHIM,20.3X28X0.20 | 92025G | 92025-1574 | AR | ||
SHIM,20.3X28X1.1 | 92025H | 92025-1575 | AR | ||
SHIM,T=0.10 | 92025I | 92025-1697 | AR | ||
SHIM,T=0.15 | 92025J | 92025-1698 | AR | ||
SHIM,T=0.50 | 92025K | 92025-1699 | AR | ||
SHIM,T=0.80 | 92025L | 92025-1700 | AR | ||
SHIM,T=1.00 | 92025M | 92025-1701 | AR | ||
SHIM,T=1.20 | 92025N | 92025-1702 | AR | ||
BUSHING | 92028 | 92028-1347 | 1 | ||
BEARING-BALL,5304 | 92045 | 92045-1144 | 1 | ||
BEARING-BALL,6206CM | 92045A | 92045-1155 | 1 | ||
SEAL-OIL | 92050 | 92050-057 | 1 | ||
SEAL-OIL | 92050A | 92050-082 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132J0630 | 4 | ||
BOLT-FLANGED-SMALL | 132A | 132J0675 | 2 | ||
BOLT-FLANGED-SMALL | 132B | 132J0685 | 1 | ||
BOLT-FLANGED-SMALL | 132C | 132J0875 | 1 | ||
BOLT-FLANGED-SMALL | 132D | 132J0890 | 3 | ||
BOLT-STUD,8X25 | 172 | 172G0825 | 4 | ||
RING-O,ID=13.8 | 92055 | 92055-1141 | 1 | ||
RING-O,76MM | 92055A | 92055-1213 | 1 | ||
RING-O | 92055B | 92055-1316 | 1 | ||
SPRING,DAMPER | 92081 | 92081-1854 | 1 | ||
BEARING-ROLLER | 92116 | 92116-1055 | 2 | ||
GEAR-ASSY,FRONT BEVEL | 13101 | 13101-5079 | 1 | ||
GEAR-ASSY,FRONT BEVEL | 13101A | 13101-5080 | 1 |
CAM-DAMPER,FR | |
REF # | 13048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,GEAR CASE,FR | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,DIFF LOCK | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-COMP,GEAR CASE,FR | |
REF # | 13234 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-GEAR | |
REF # | 14055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-BEARING,GEAR CASE,FR | |
REF # | 41046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-BEARING,GEAR CASE,FR | |
REF # | 41046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE | |
REF # | 54010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,16X10 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,55MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,14MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,RING 35MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,LOCK | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,14.2X28X2.6 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.3 | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.7 | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.8 | |
REF # | 92025B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.9 | |
REF # | 92025C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.0 | |
REF # | 92025D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.2 | |
REF # | 92025E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.15 | |
REF # | 92025F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.20 | |
REF # | 92025G |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.1 | |
REF # | 92025H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.10 | |
REF # | 92025I |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.15 | |
REF # | 92025J |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.50 | |
REF # | 92025K |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.80 | |
REF # | 92025L |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.00 | |
REF # | 92025M |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.20 | |
REF # | 92025N |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,5304 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6206CM | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92050A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132D |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-STUD,8X25 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,ID=13.8 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,76MM | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,DAMPER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-ROLLER | |
REF # | 92116 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GEAR-ASSY,FRONT BEVEL | |
REF # | 13101 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-ASSY,FRONT BEVEL | |
REF # | 13101A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
