130
130
130A
183
183
183
55020
55020A
55020B
55020E
55020F
92075
92075
92075A
92075A

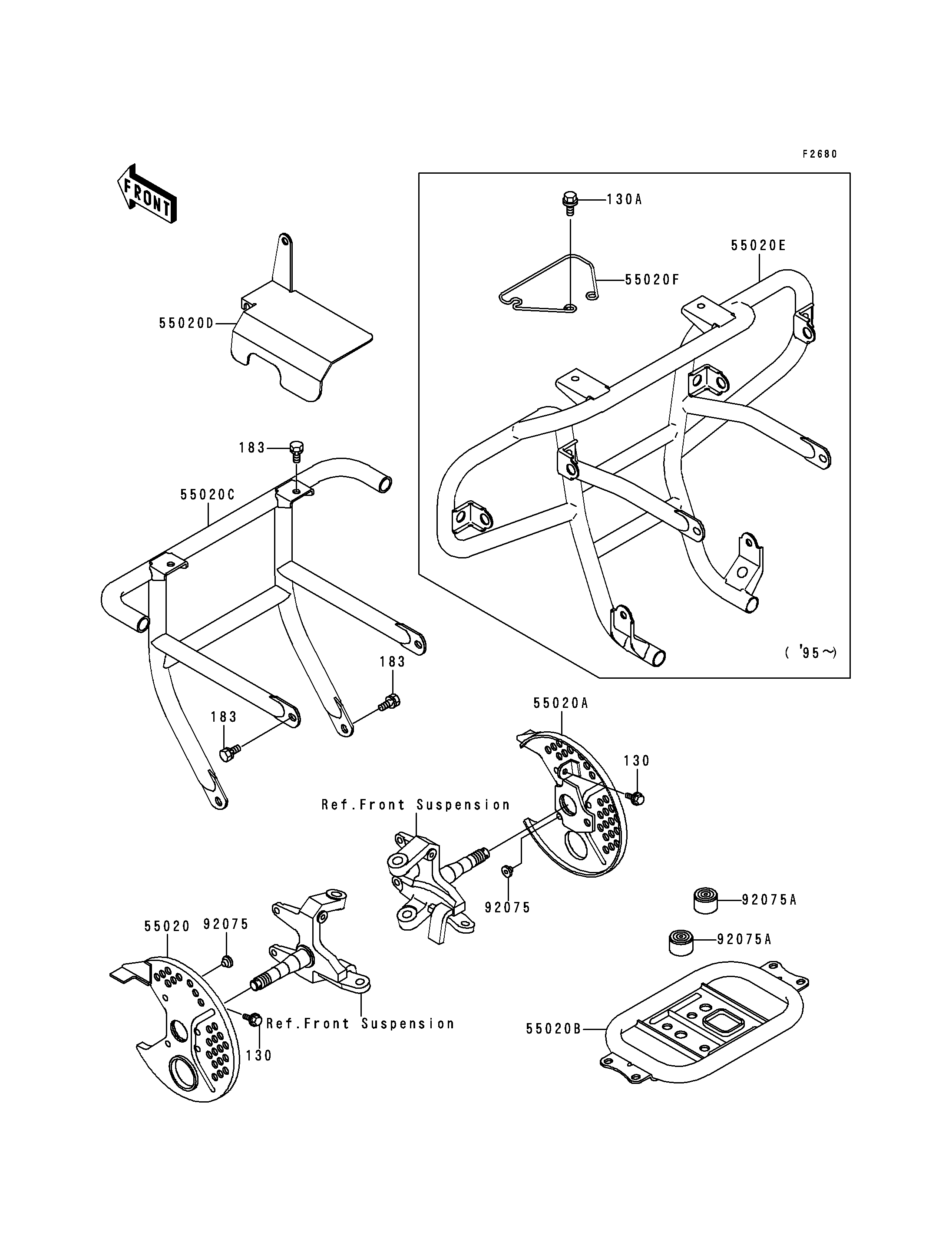

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X12,BLACK 130A 130C0812 2
BOLT-UPSET-WS-SMALL 183 183J0816 6
GUARD,FRONT HUB,INNER,LH 55020 55020-1223 1
GUARD,FRONT HUB,INNER,RH 55020A 55020-1224 1
GUARD,ENGINE 55020B 55020-1242 1
GUARD,FR 55020E 55020-1522 1
GUARD 55020F 55020-1523 1
DAMPER,INNER 92075 92075-1822 6
DAMPER 92075A 92075-1896 2
GUARD,SNOW 55020D 55020-1484 1
