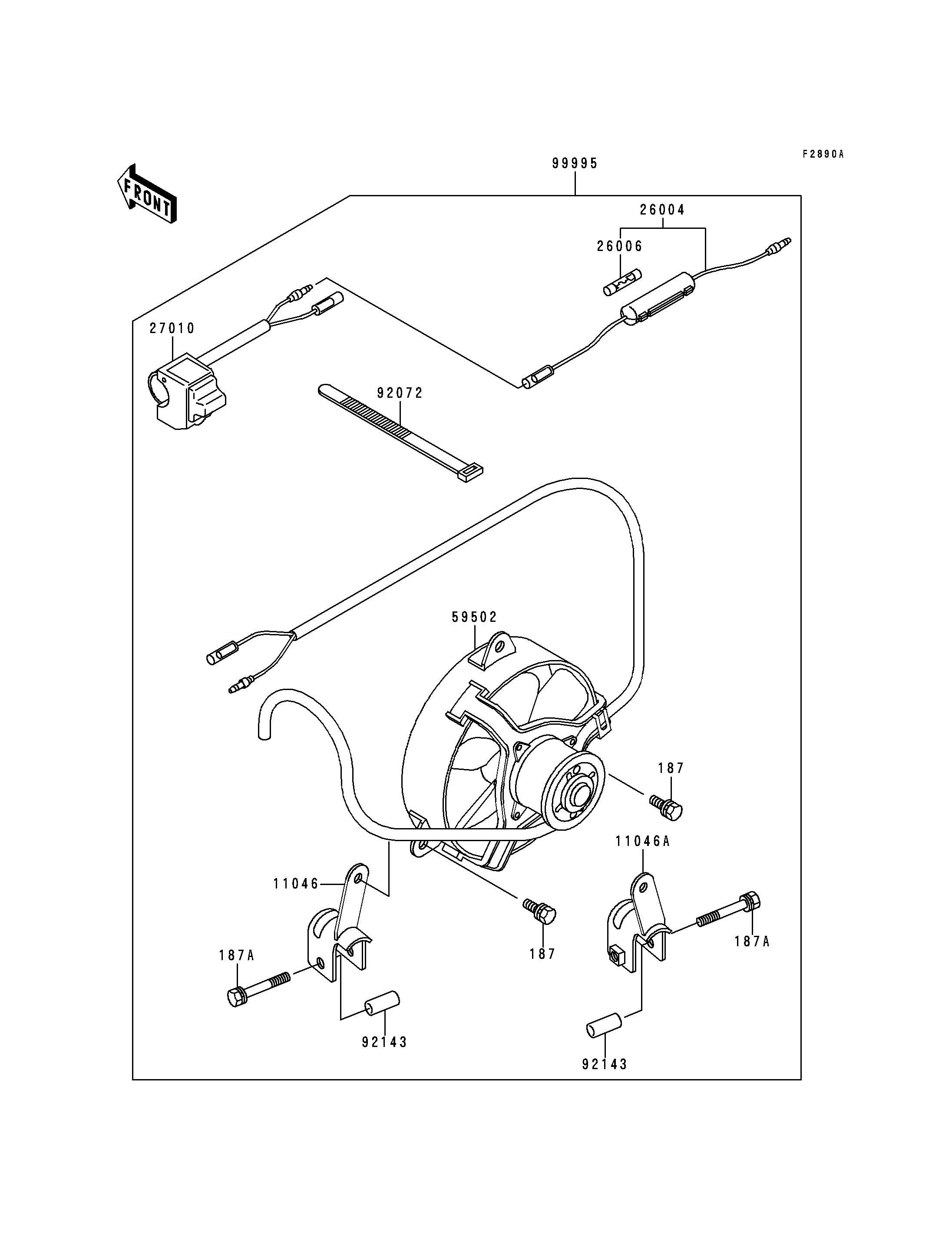

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187J0616 3
BOLT-UPSET-WSP 187A 187J0640 2
BRACKET,FAN,LH 11046 11046-1242 1
BRACKET,FAN,RH 11046A 11046-1243 1
FUSE-ASSY 26004 26004-1077 1
FUSE,10A,L=30 26006 26006-1002 2
SWITCH,FAN 27010 27010-1250 1
FAN-ASSY,COOLING 59502 59502-1078 1
BAND,L=149 92072 92072-031 1
COLLAR,6.8X10X21.7 92143 92143-1225 2
KIT.,COOLING FAN 99995 99995-1012 1
