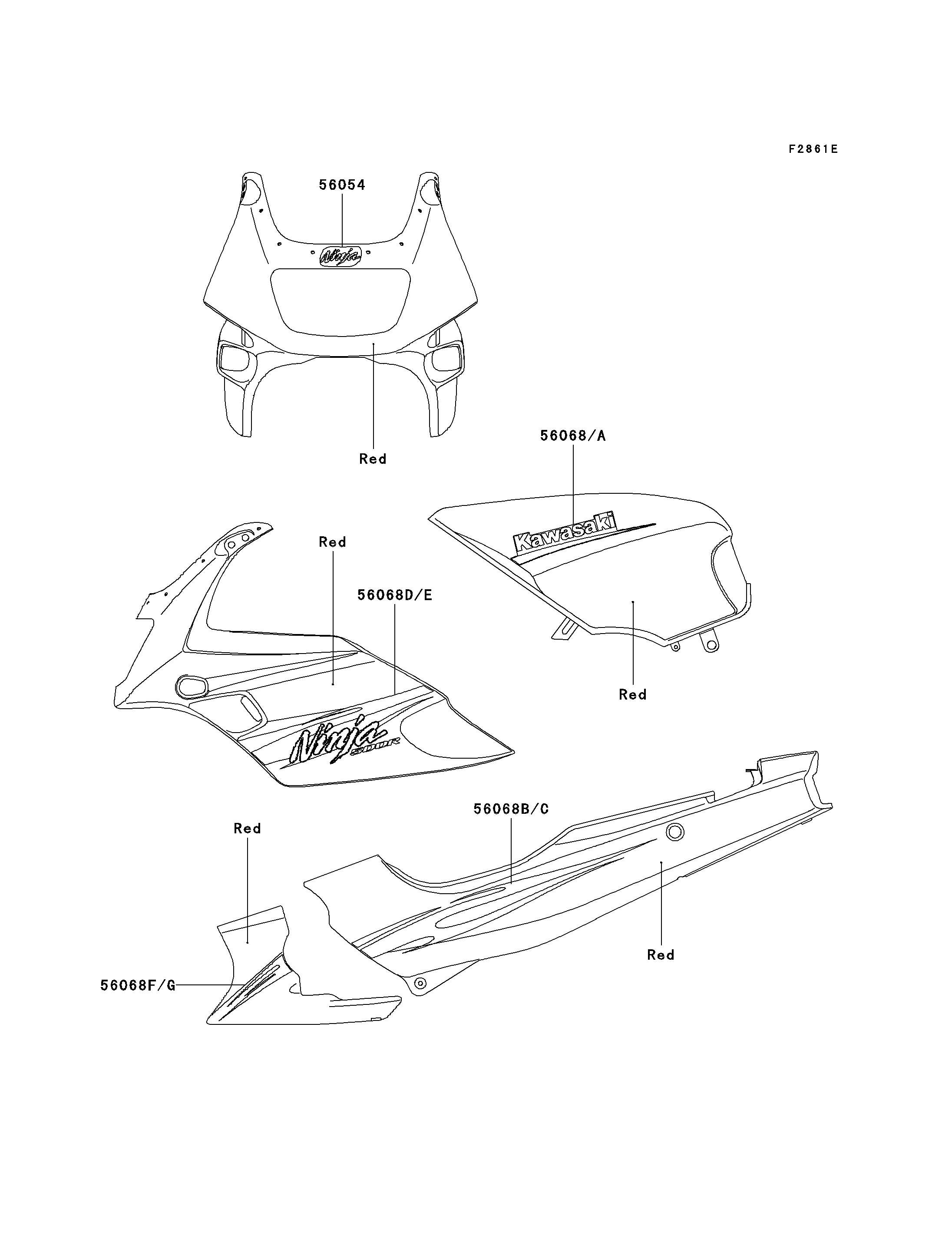

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,UPP COWLING,NINJA 56054 56054-0116 1 US
PATTERN,FUEL TANK,LH 56068 56068-0553 1 US
PATTERN,FUEL TANK,RH 56068A 56068-0554 1 US
PATTERN,SIDE COVER,LH 56068B 56068-0555 1 US
PATTERN,SIDE COVER,RH 56068C 56068-0556 1 US
PATTERN,UPP COWLING,LH 56068D 56068-0557 1 US
PATTERN,UPP COWLING,RH 56068E 56068-0558 1 US
PATTERN,LWR COWLING,LH 56068F 56068-0559 1 US
PATTERN,LWR COWLING,RH 56068G 56068-0560 1 US
