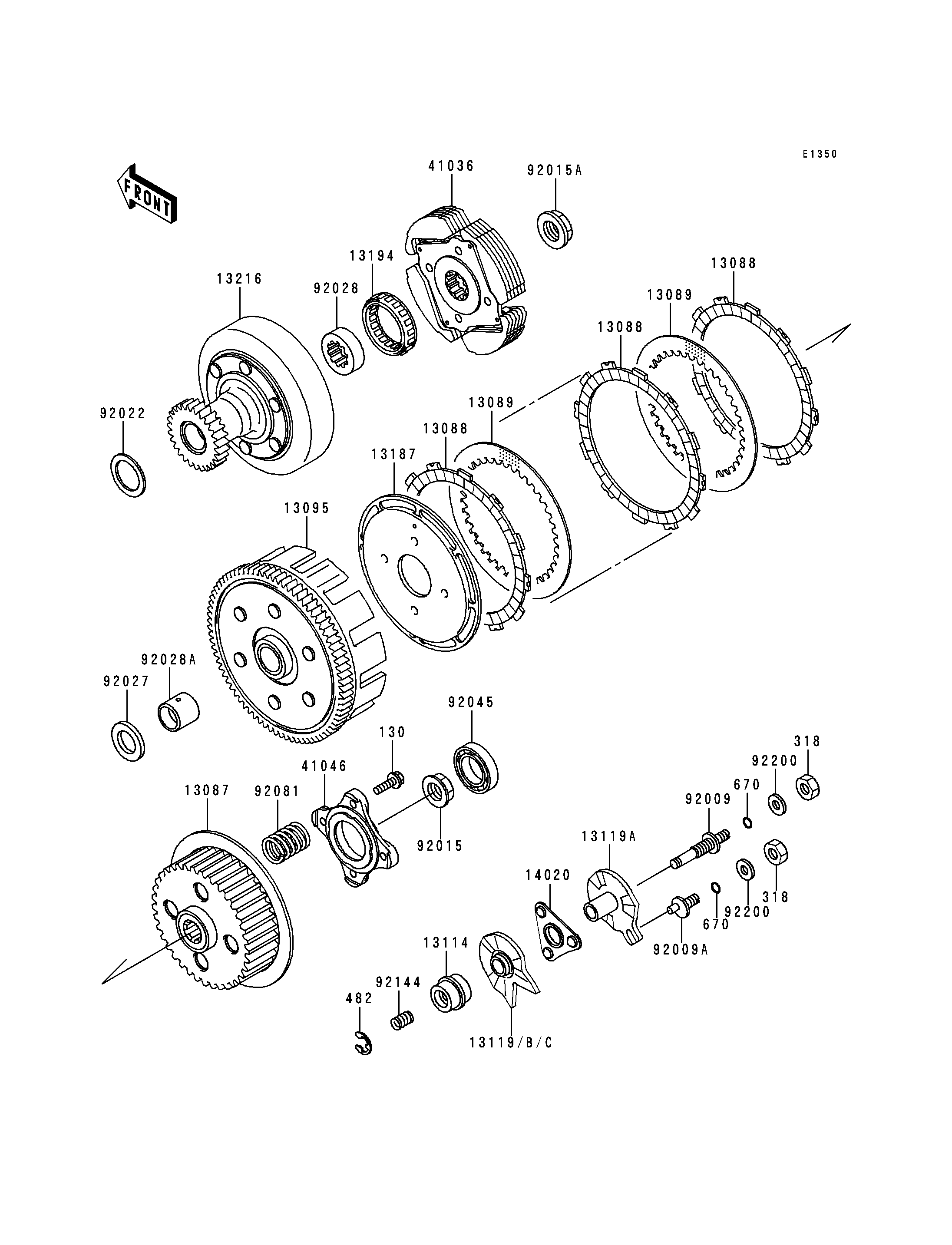

1992 Bayou 300 4X4 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
130
318
318
482
670
670
13087
13088
13088
13088
13089
13089
13095
13114
13119A
13119B
13187
13194
13216
14020
41036
41046
92009
92009A
92015
92015A
92022
92027
92028
92028A
92045
92081
92144
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130P0620 4
NUT-HEX-SMALL,8MM 318 318B0800 2
CIRCLIP-TYPE-E,7MM 482 482J7000 1
O RING,8MM 670 670B1508 2
HUB-CLUTCH 13087 13087-1065 1
PLATE-FRICTION 13088 13088-041 5
PLATE-CLUTCH 13089 13089-1005 4
HOUSING-COMP-CLUTCH 13095 13095-1133 1
PUSHER-CLUTCH 13114 13114-1060 1
CAM-RELEASE 13119A 13119-1067 1
CAM-RELEASE 13119B 13119-1070 1
PLATE-CLUTCH OPERATING 13187 13187-1081 1
CLUTCH-ONEWAY 13194 13194-1055 1
GEAR-COMP,CLUTCH,FR 13216 13216-1073 1
RETAINER,CLUTCH RELEASE 14020 14020-1092 1
HUB-ASSY,CLUTCH,FR 41036 41036-1122 1
HOUSING-BEARING 41046 41046-1063 1
SCREW 92009 92009-1525 1
SCREW 92009A 92009-1526 1
NUT,16MM 92015 92015-1465 1
NUT,18MM 92015A 92015-1512 1
WASHER,27.3X38X0.8 92022 92022-1989 1
COLLAR,20.5X34X4 92027 92027-1888 1
BUSHING,CLUTCH,FR 92028 92028-1370 1
BUSHING,CLUTCH 92028A 92028-1371 1
BEARING-BALL,#6905 92045 92045-036 1
SPRING,CLUTCH 92081 92081-1848 4
SPRING 92144 92144-1272 1
WASHER,8.5X18X2.3 92200 92200-1213 2
