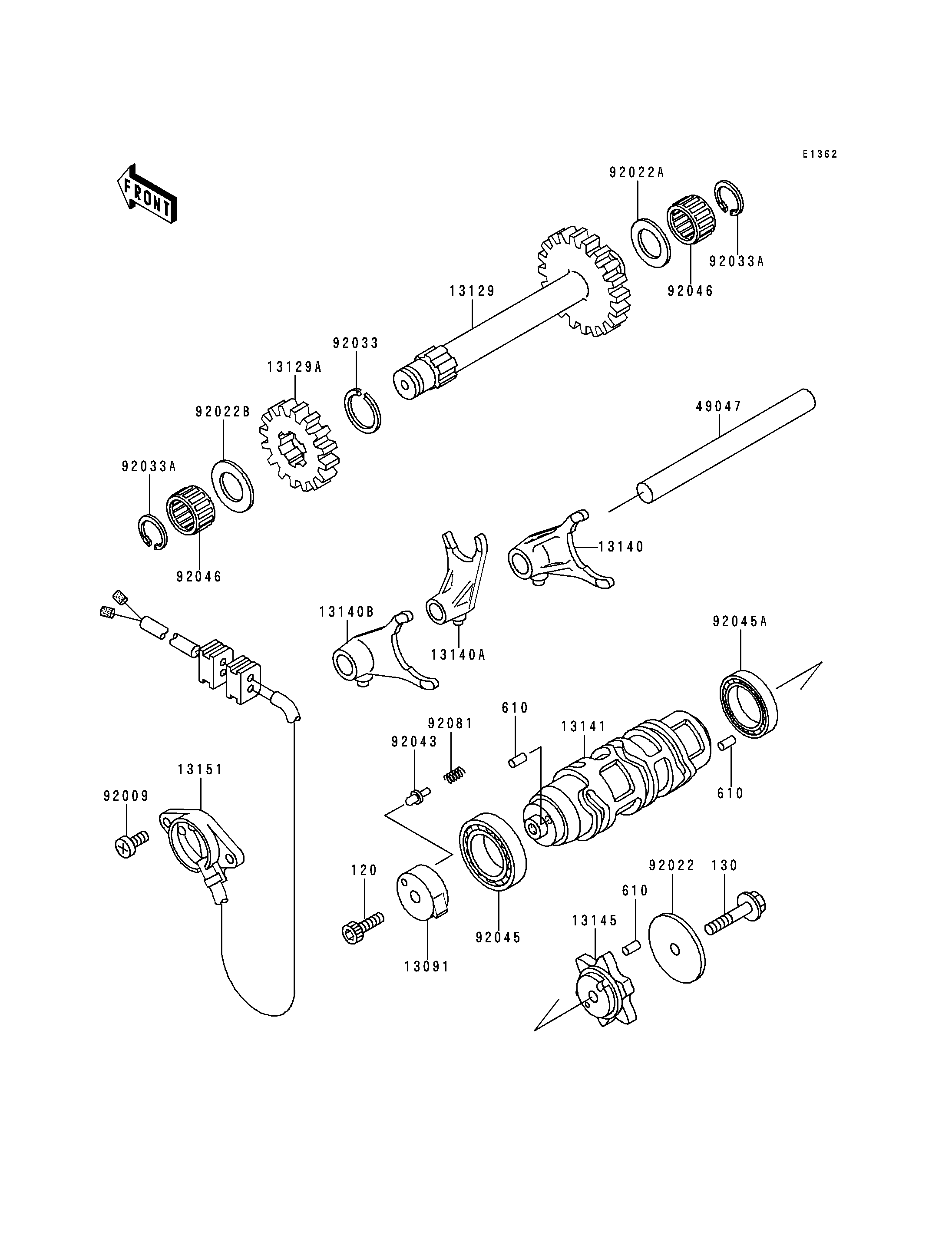

1990 Bayou 300 4X4 - Gear Change Drum/Shift Fork(s)
120
130
610
610
610
13091
13129
13129A
13140
13140A
13140B
13141
13145
13151
49047
92009
92022
92022A
92022B
92033
92033A
92033A
92043
92045
92045A
92046
92046
92081
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X20 | 120 | 120Q0620 | 1 | ||
BOLT-FLANGED,6X30 | 130 | 130G0630 | 1 | ||
ROLLER,4X10 | 610 | 610A0410 | 8 | ||
HOLDER,NEUTRAL SWITCH | 13091 | 13091-1443 | 1 | ||
GEAR-REVERSE | 13129 | 13129-1705 | 1 | ||
GEAR-REVERSE,20T | 13129A | 13129-1706 | 1 | ||
FORK-SHIFT | 13140 | 13140-1172 | 1 | ||
FORK-SHIFT | 13140A | 13140-1173 | 1 | ||
FORK-SHIFT | 13140B | 13140-1174 | 1 | ||
DRUM-CHANGE | 13141 | 13141-1152 | 1 | ||
CAM-CHANGE DRUM | 13145 | 13145-1057 | 1 | ||
SWITCH-COMP | 13151 | 13151-1079 | 1 | ||
ROD-SHIFT | 49047 | 49047-1077 | 1 | ||
SCREW,5X14 | 92009 | 92009-1341 | 2 | ||
WASHER,6.2X38X1.2 | 92022 | 92022-1500 | 1 | ||
WASHER,17.3X28X1 | 92022A | 92022-255 | 1 | ||
WASHER,17.3X30X1.4 | 92022B | 92022-270 | 1 | ||
RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
RING-SNAP | 92033A | 92033-032 | 2 | ||
PIN | 92043 | 92043-1287 | 1 | ||
BEARING-BALL,6805 | 92045 | 92045-1122 | 1 | ||
BEARING-BALL,6905X1 | 92045A | 92045-1150 | 1 | ||
BEARING-NEEDLE,K17X23X13.8 | 92046 | 92046-1184 | 2 | ||
SPRING | 92081 | 92081-1763 | 1 |
