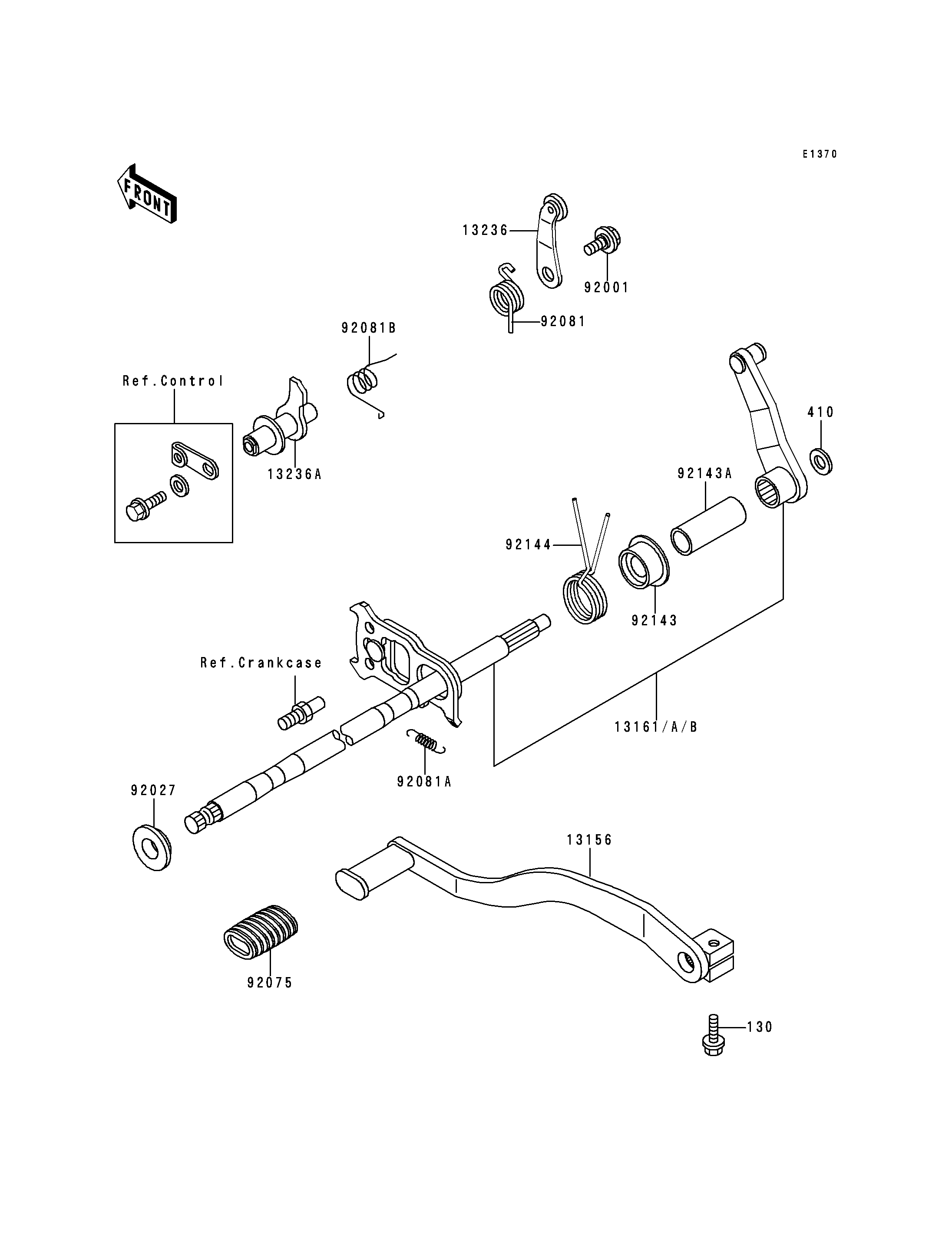

130
410
13156
13161
13161B
13236
13236A
92001
92027
92075
92081
92081A
92081B
92143
92143A
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20,BLACK 130 130S0620 1
WASHER-PLAIN-SMALL,8MM 410 410B0800 1
LEVER-CHANGE,PEDAL 13156 13156-1248 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1164 1 ( - LF300AE075494)
LEVER-COMP-CHANGE SHAFT 13161B 13161-1174 1 ( LF300AE075495 - )
LEVER-COMP,CHANGE DRUM 13236 13236-1133 1
LEVER-COMP,REVERSE 13236A 13236-1238 1
BOLT,GEAR CHANGE LEVER 92001 92001-1715 1
COLLAR,L=5.2 92027 92027-1891 1
DAMPER,CHANGE PEDAL 92075 92075-1585 1
SPRING 92081 92081-1496 1
SPRING,CHANGE LEVER 92081A 92081-1753 1
SPRING,REVERSE LEVER 92081B 92081-1850 1
COLLAR 92143 92143-1321 1
COLLAR,13.3X17.3X44.7 92143A 92143-1574 1
SPRING,CHANGE SHAFT RETURN 92144 92144-1359 1
