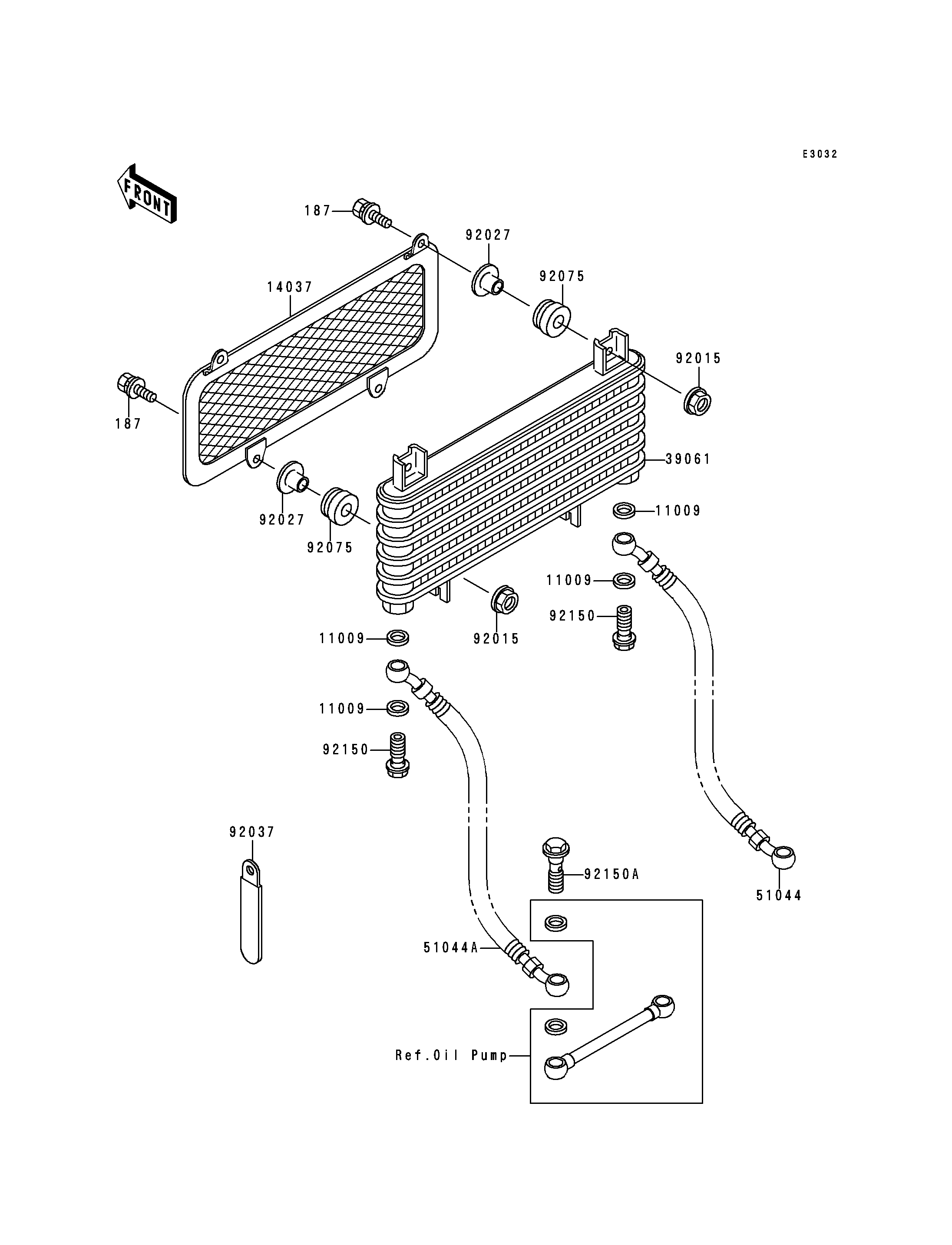

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187D0625 4
GASKET,10X14.5X1.5 11009 11009-1105 4
SCREEN 14037 14037-1105 1
RADIATOR-ASSY 39061 39061-1126 1
TUBE-ASSY 51044 51044-1096 1
TUBE-ASSY 51044A 51044-1097 1
NUT,FLANGED,6MM 92015 92015-1367 4
COLLAR 92027 92027-1767 4
CLAMP 92037 92037-1679 1
DAMPER 92075 92075-277 4
BOLT,BANJO,10X23 92150 92150-1123 2
BOLT 92150A 92150-1136 1
