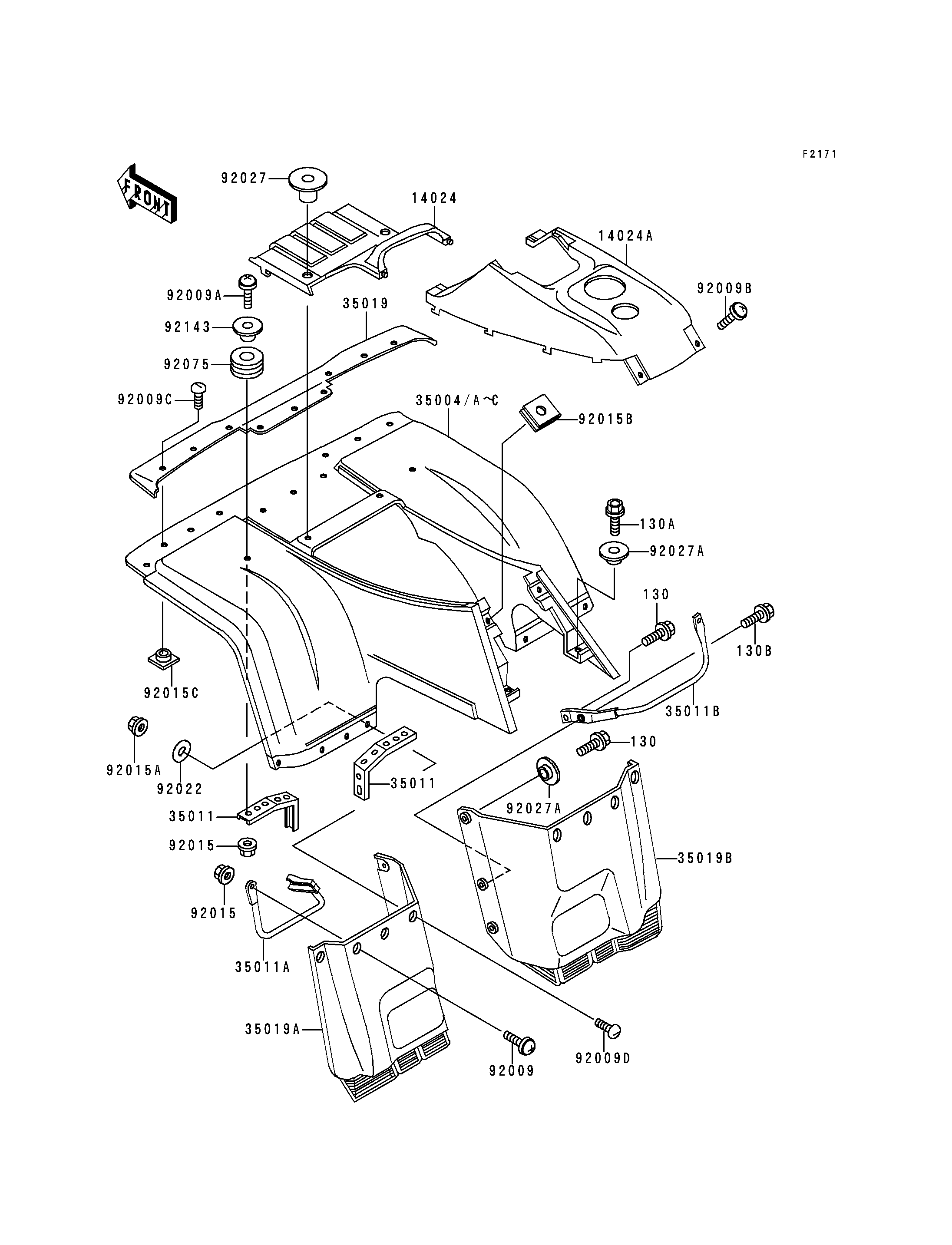

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
130A
130B
14024
14024A
35004
35004A
35011
35011
35011A
35011B
35019
35019A
35019B
92009
92009A
92009B
92009C
92009D
92015
92015
92015A
92015B
92015C
92022
92027
92027A
92027A
92075
92143
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14 | 130 | 130C0614 | 6 | ||
BOLT-FLANGED,6X16 | 130A | 130C0616 | 2 | ||
BOLT-FLANGED,6X20 | 130B | 130C0620 | 2 | ||
COVER,FRONT FENDER,FR,BLACK | 14024 | 14024-1656-6D | 1 | ||
COVER,FRONT FENDER,RR,BLACK | 14024A | 14024-1657-6D | 1 | ||
FENDER-FRONT,BLACK | 35004 | 35004-1223-6D | 1 | ||
FENDER-FRONT,F.RED | 35004A | 35004-1223-6L | 1 | ||
STAY,FRONT FENDER,UPP | 35011 | 35011-1420 | 2 | ||
STAY,FRONT FENDER,LH,FLAP | 35011A | 35011-1421 | 1 | ||
STAY,FRONT FENDER,RH,FLAP | 35011B | 35011-1422 | 1 | ||
FLAP,FR | 35019 | 35019-1215 | 1 | ||
FLAP,FR,LWR,LH | 35019A | 35019-1216 | 1 | ||
FLAP,FR,LWR,RH | 35019B | 35019-1217 | 1 | ||
SCREW,6X18,BLACK | 92009 | 92009-1181 | 2 | ||
SCREW,6X22,BLACK | 92009A | 92009-1256 | 2 | ||
SCREW,6X14 | 92009B | 92009-1288 | 2 | ||
SCREW,6X11 | 92009C | 92009-1562 | 11 | ||
SCREW,6X16 | 92009D | 92009-1621 | 6 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 4 | ||
NUT,LOCK,FLANGED,6MM | 92015A | 92015-1675 | 6 | ||
NUT,CLAMP,6MM | 92015B | 92015-1678 | 2 | ||
NUT,6MM | 92015C | 92015-1722 | 11 | ||
WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 6 | ||
COLLAR,L=14 | 92027 | 92027-1134 | 2 | ||
COLLAR,L=4.7 | 92027A | 92027-122 | 6 | ||
DAMPER,CASE | 92075 | 92075-222 | 2 | ||
COLLAR,L=9.6 | 92143 | 92143-1016 | 2 |
BOLT-FLANGED,6X14 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,FRONT FENDER,FR,BLACK | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FRONT FENDER,RR,BLACK | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,BLACK | |
REF # | 35004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,F.RED | |
REF # | 35004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,FRONT FENDER,UPP | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STAY,FRONT FENDER,LH,FLAP | |
REF # | 35011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,FRONT FENDER,RH,FLAP | |
REF # | 35011B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,FR | |
REF # | 35019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,FR,LWR,LH | |
REF # | 35019A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLAP,FR,LWR,RH | |
REF # | 35019B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X18,BLACK | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X22,BLACK | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X11 | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009D |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,CLAMP,6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
WASHER,6.5X16X1.0 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COLLAR,L=14 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=4.7 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
DAMPER,CASE | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=9.6 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
