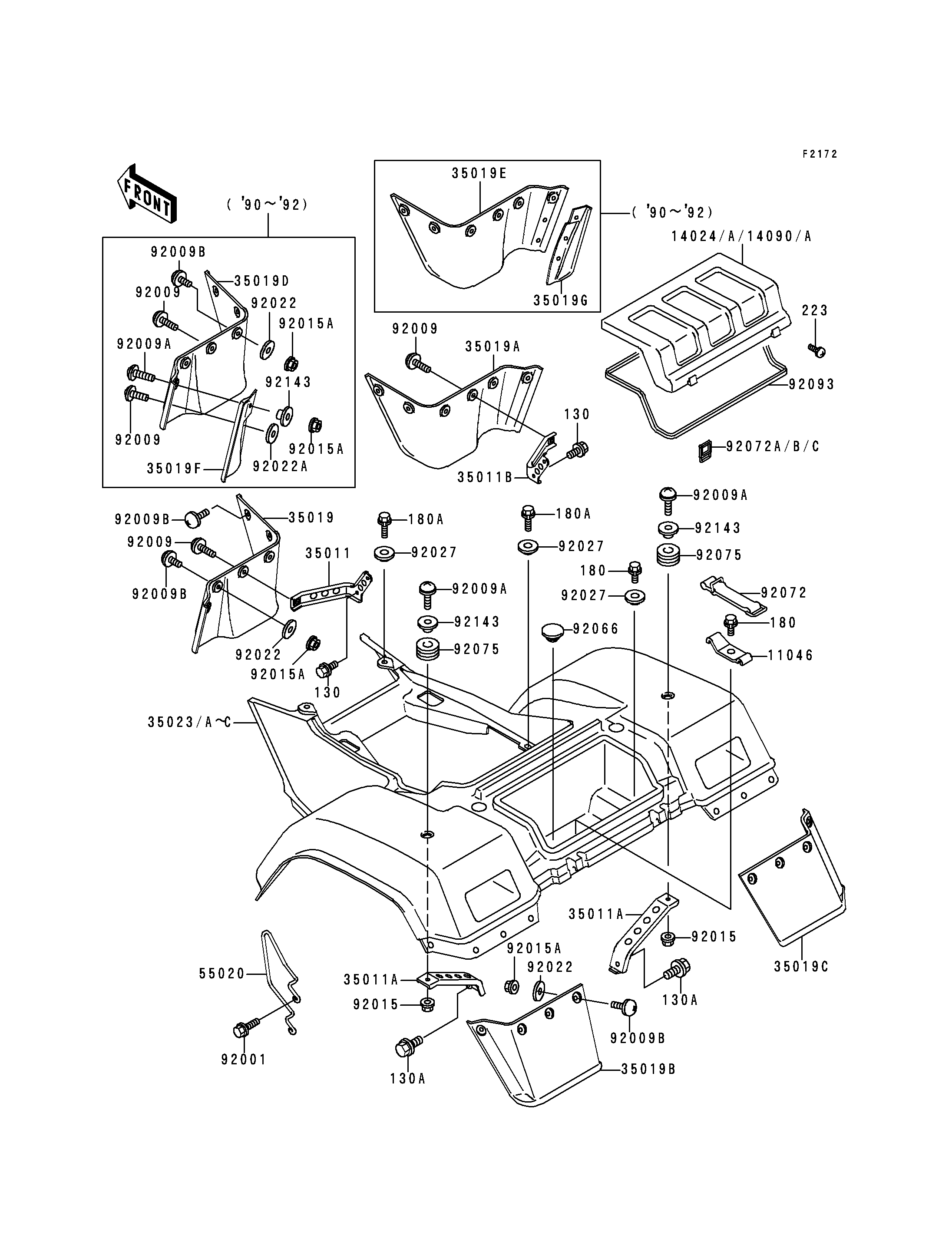

1990 Bayou 300 4X4 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11046
11046
14024
14024
14024A
14024A
35011
35011
35011A
35011A
35011A
35011A
35011B
35011B
35019B
35019B
35019C
35019C
35019D
35019D
35019E
35019E
35019F
35019F
35019G
35019G
35023
35023
35023A
35023A
55020
55020
92001
92001
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022A
92022A
92027
92027
92027
92027
92027
92027
92072
92072
92072A
92072A
92075
92075
92075
92075
92093
92093
92143
92143
92143
92143
92143
92143
130
130
130
130
130A
130A
130A
130A
180
180
180
180
180A
180A
180A
180A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BAND 11046 11046-1319 1
COVER,REAR FENDER,BLACK 14024 14024-1658-6D 1
COVER,REAR FENDER,F.RED 14024A 14024-1658-6L 1
STAY,REAR FENDER,FR,LH 35011 35011-1423 1
STAY,REAR FENDER,UPP 35011A 35011-1424 2
STAY,REAR FENDER,FR,RH 35011B 35011-1440 1
FLAP,RR,LH,RR 35019B 35019-1220 1
FLAP,RR,RH,RR 35019C 35019-1221 1
FLAP,RR,LH,FR 35019D 35019-1235 1
FLAP,RR,RH,FR 35019E 35019-1236 1
FLAP,LWR,RR,LH 35019F 35019-1256 1
FLAP,LWR,RR,RH 35019G 35019-1257 1
FENDER-REAR,BLACK 35023 35023-1219-6D 1
FENDER-REAR,F.RED 35023A 35023-1219-6L 1
GUARD 55020 55020-1322 1
BOLT,6X18 92001 92001-1342 2
SCREW,6X18,BLACK 92009 92009-1181 6
SCREW,6X22,BLACK 92009A 92009-1256 4
SCREW,6X16 92009B 92009-1621 16
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 22
WASHER,6.5X16X1.0 92022 92022-1093 16
WASHER,6.5X16X2 92022A 92022-1342 4
COLLAR,L=4.7 92027 92027-122 5
BAND 92072 92072-1085 1
BAND 92072A 92072-1240 2
DAMPER,CASE 92075 92075-222 2
SEAL,REAR FENDER COVER 92093 92093-1262 1
COLLAR,L=9.6 92143 92143-1016 4
BOLT-FLANGED,6X10 130 130B0610 4
BOLT-FLANGED,8X12 130A 130B0812 2
BOLT-UPSET-WS 180 180D0614 2
BOLT-UPSET-WS 180A 180D0618 4
PLUG,11X3.2 92074 92074-038 1
