185
185
185
185A
56040
56040A

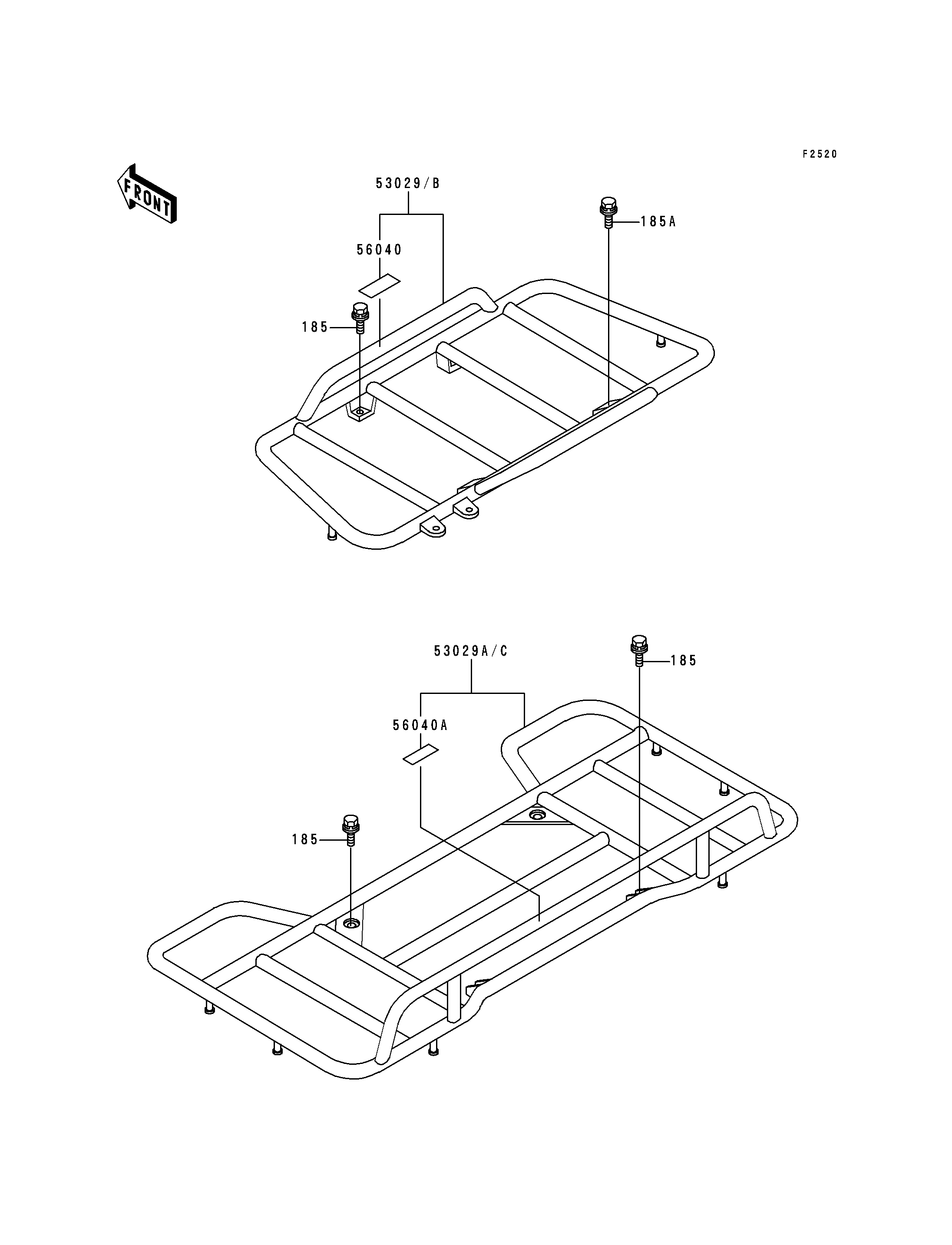

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP-SMALL 185 185C0816 6
BOLT-UPSET-WSP-SMALL,8X35 185A 185J0835 2
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1259 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1260 1
CARRIER,FR 53029 53029-1102 1
CARRIER,RR 53029A 53029-1104 1
CARRIER,FR 53029B 53029-1108 1
CARRIER,RR 53029C 53029-1110 1
