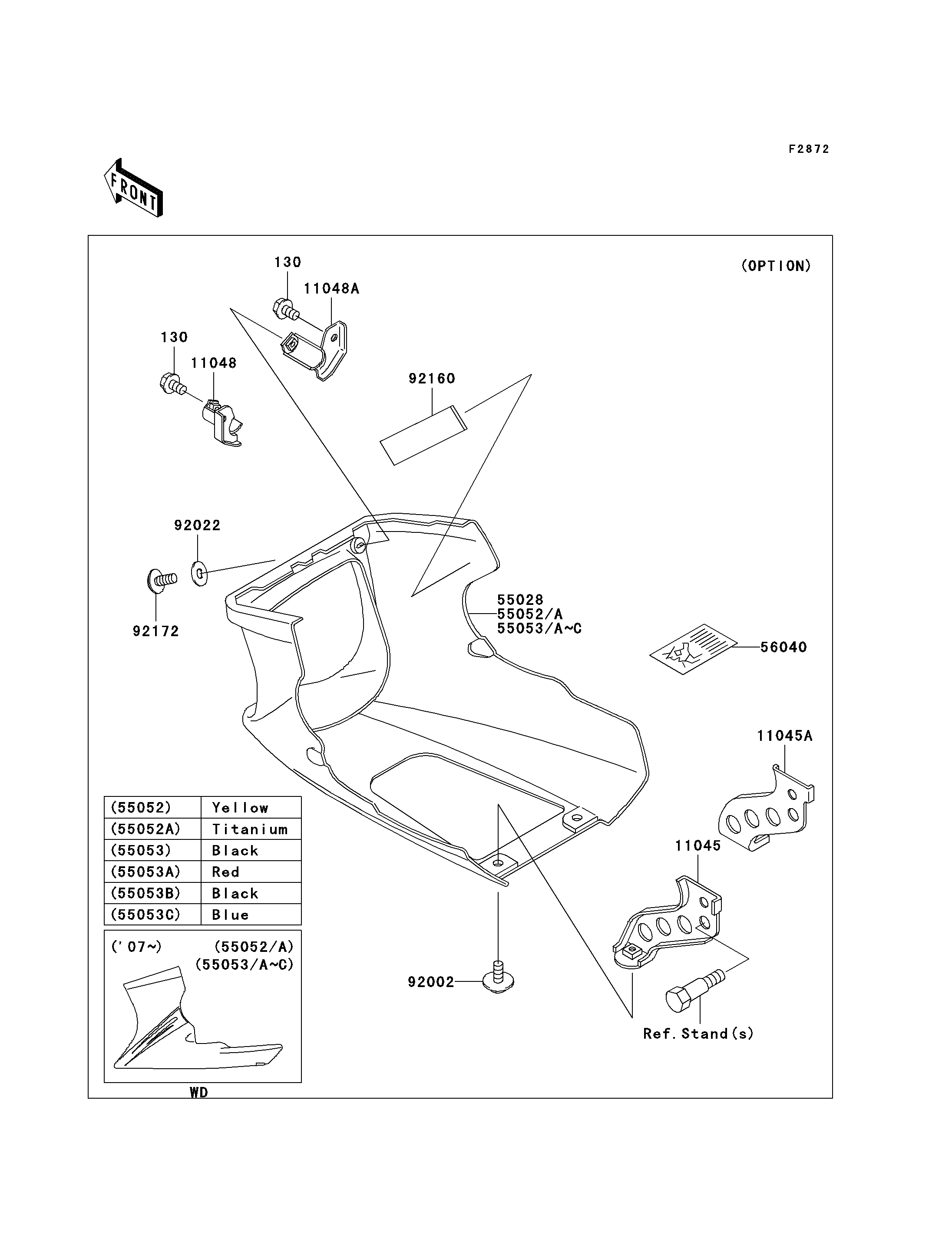

2008 Ninja® 500R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
11045A
11045A
11048
11048
11048A
11048A
55053
55053
56040
56040
130
130
130
130
92002
92002
92022
92022
92160
92160
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LOWER COWLING,RR,LH 11045 11045-1573 1 (OPTION)
BRACKET,LOWER COWLING,RR,RH 11045A 11045-1574 1 (OPTION)
BRACKET,LOWER COWLING,FR,LH 11048 11048-1685 1 (OPTION)
BRACKET,LOWER COWLING,FR,RH 11048A 11048-1686 1 (OPTION)
COWLING-ASSY,LWR,M.D,BLACK 55053 55053-5049-17K 1 (OPTION)
LABEL-WARNING,LOWER COWLING 56040 56040-1251 1 (OPTION)
BOLT-FLANGED,6X10 130 130AA0610 2 (OPTION)
BOLT,6X16 92002 92002-1188 2 (OPTION)
WASHER,6.5X16X1.0 92022 92022-1654 2 (OPTION)
DAMPER 92160 92160-1323 1 (OPTION)
SCREW,6X14 92172 92172-0107 2 (OPTION)
COWLING-ASSY,LWR,P.RED 55053A 55053-5051-234 1 US (OPTION)
