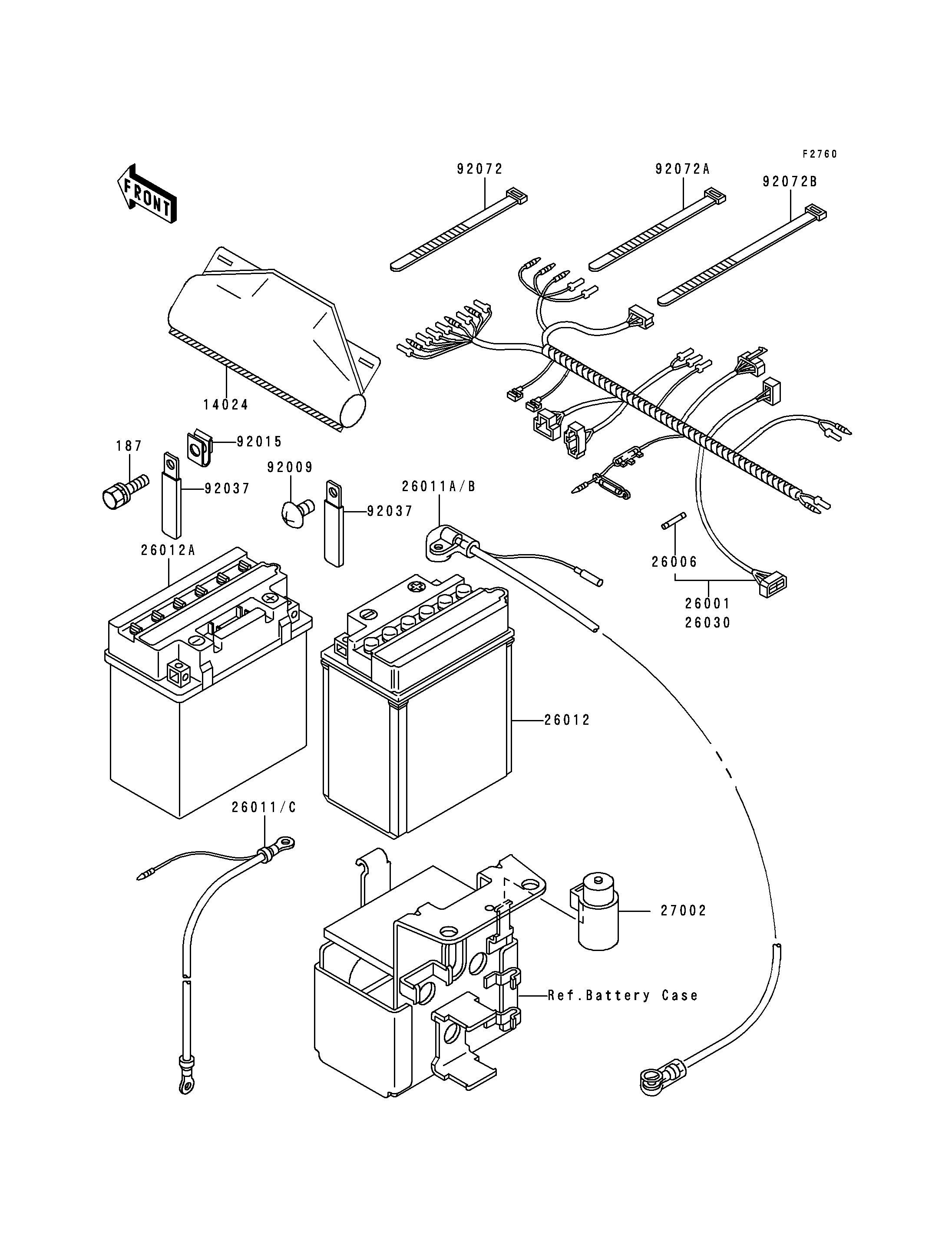

1990 Bayou 300 4X4 - Chassis Electrical Equipment

187
14024
26001
26006
26011
26011A
26012
92009
92015
92037
92037
92072
92072A
92072B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187C0614 2
COVER,COUPLER 14024 14024-1624 1
HARNESS,MAIN 26001 26001-1895 1
FUSE,30A,L=30 26006 26006-1059 2
WIRE-LEAD,BATTERY(-) 26011 26011-1303 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1418 1
BATTERY,12V 14AH,YB14A-A2 26012 26012-1146 1
SCREW,TAPPING,4X8 92009 92009-1155 3
NUT,6MM 92015 92015-1671 2
CLAMP,WIRING HARNESS 92037 92037-1069 5
BAND,L=123 92072 92072-030 3
BAND,L=149 92072A 92072-031 5
BAND,L=188 92072B 92072-1239 16
RELAY-ASSY 27002 27002-1051 1
