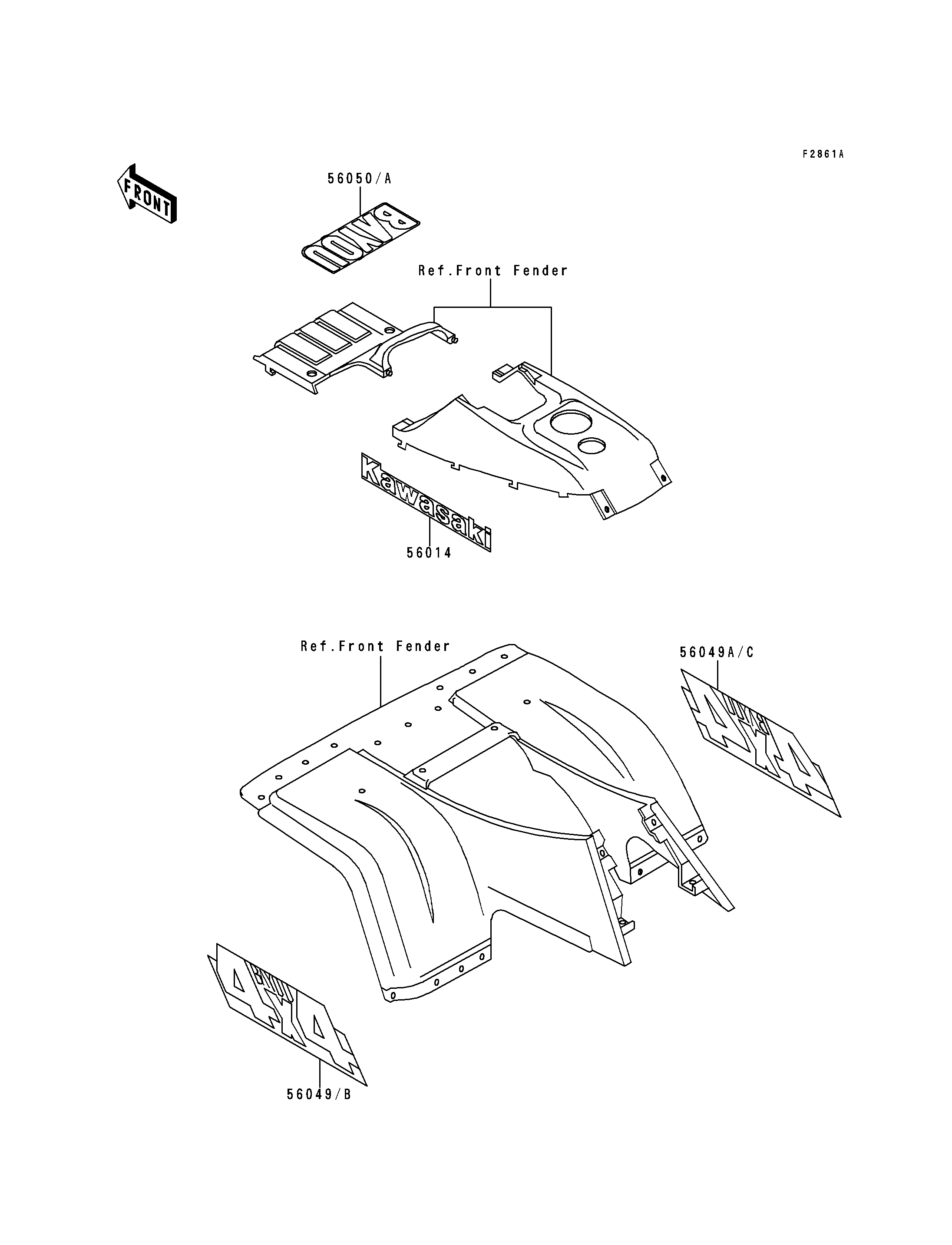

56014
56049
56049A
56049B
56049C
56050
56050A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,KAWASAKI 56014 56014-1223 4
PATTERN,FR FENDER,LH,FOR RED 56049 56049-1731 1
PATTERN,FR FENDER,RH,FOR RED 56049A 56049-1732 1
PATTERN,FR FENDER,LH,FOR BLACK 56049B 56049-1733 1
PATTERN,FR FENDER,RH,FOR BLACK 56049C 56049-1734 1
MARK,FR FENDER COVER,FR,RED 56050 56050-1570 1
MARK,FR FENDER COVER,FR,BLACK 56050A 56050-1571 1
