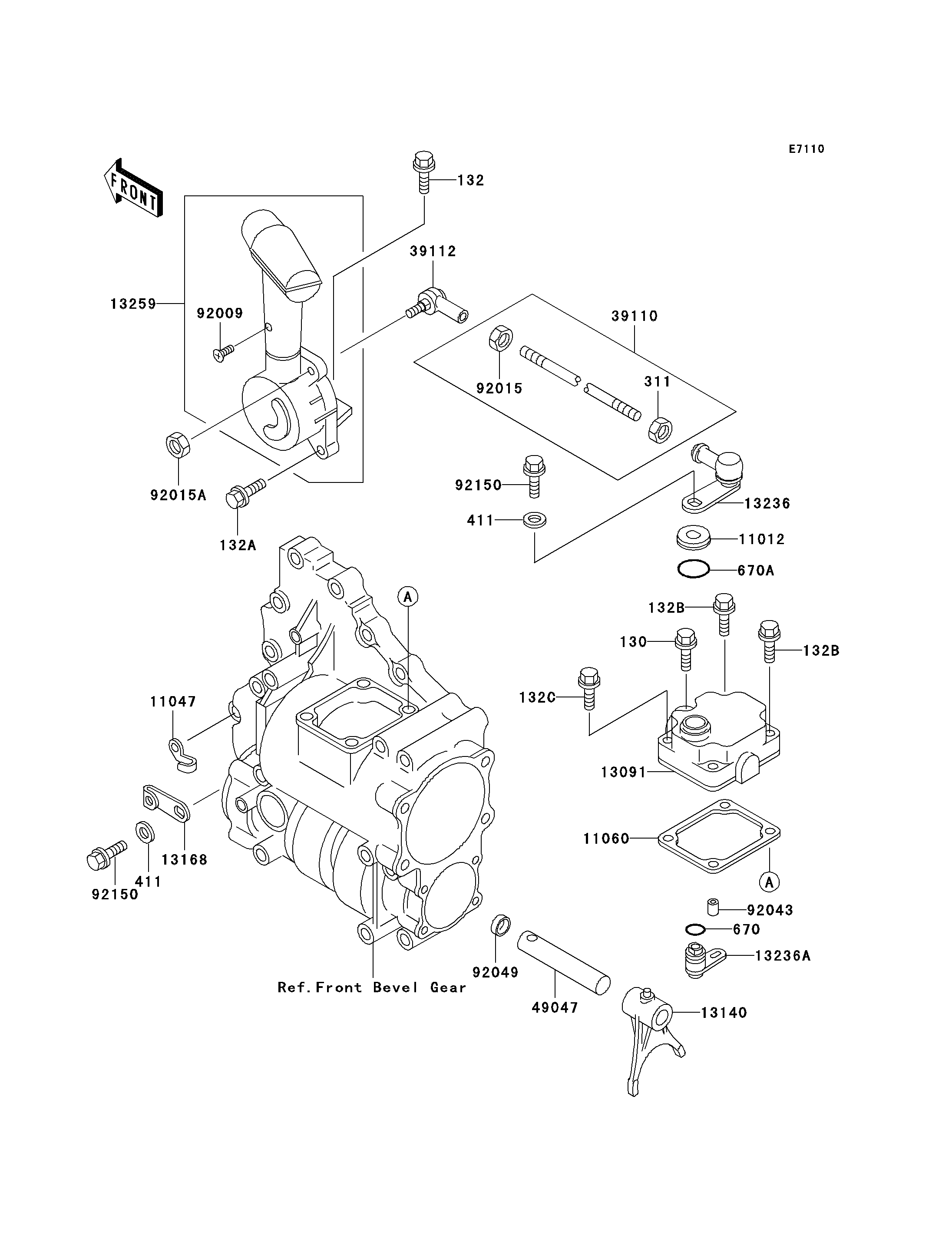

1998 Bayou 300 4X4 - Control

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
132B
132B
132C
311
411
411
670
670A
11012
11047
11060
13091
13140
13168
13236
13236A
13259
39110
39112
49047
92009
92015
92015A
92043
92049
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0620 1
BOLT-FLANGED-SMALL 132 132J0620 1
BOLT-FLANGED-SMALL 132A 132J0625 2
BOLT-FLANGED-SMALL 132B 132J0630 2
BOLT-FLANGED-SMALL,6X40 132C 132J0640 2
NUT-HEX 311 311J0600 1
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
O RING,10MM 670 670B2010 1
O RING,18MM 670A 670B2018 1
CAP 11012 11012-1652 1
BRACKET,RELEASE LOCK WIRE 11047 11047-1440 1
GASKET,CONTROL LEVER 11060 11060-1718 1
HOLDER 13091 13091-1548 1
FORK-SHIFT 13140 13140-1175 1
LEVER,RELEASE LOCK 13168 13168-1395 1
LEVER-COMP 13236 13236-1175 1
LEVER-COMP 13236A 13236-1176 1
LEVER-ASSY-SHIFT CONTROL 13259 13259-1003 1
ROD-ASSY-TIE 39110 39110-1087 1
RODEND-TIE 39112 39112-1006 1
ROD-SHIFT 49047 49047-1078 1
SCREW,4X8 92009 92009-1554 4
NUT 92015 92015-1178 1
NUT,LOCK,6MM,BLACK 92015A 92015-1191 1
PIN,6.2X8X14 92043 92043-1263 2
SEAL-OIL,RCA124 92049 92049-1311 1
BOLT 92150 92150-1681 2
