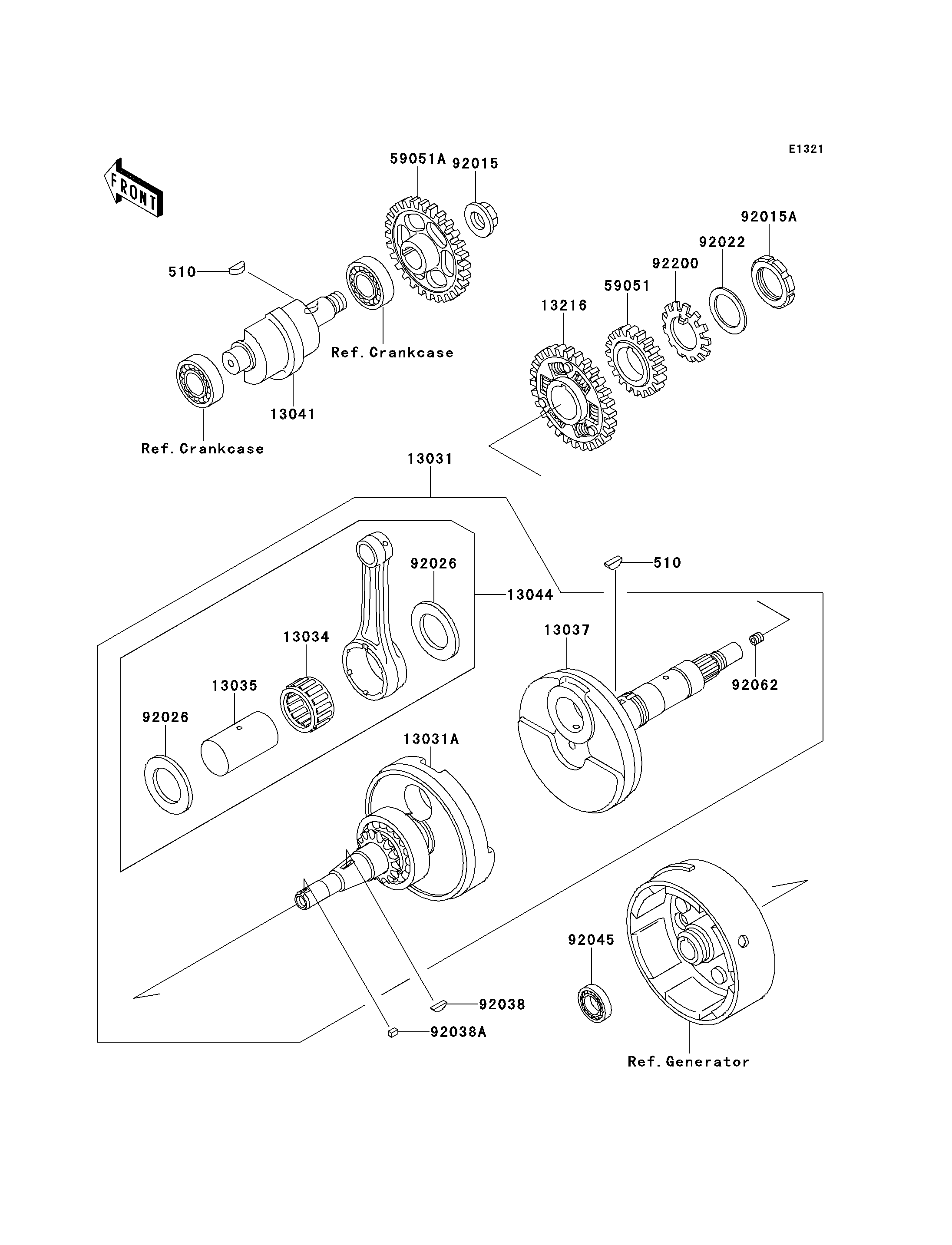

510
510
13031
13031A
13034
13035
13037
13041
13044
13216
59051
59051A
92015
92015A
92022
92026
92026
92038
92038A
92045
92062
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
KEY-WOODRUFF 510 510A5100 2
CRANKSHAFT-COMP 13031 13031-1388 1
CRANKSHAFT-COMP,LH 13031A 13031-1402 1
BEARING-BIG END,PK32X43X22.4 13034 13034-1061 1
PIN-CRANK 13035 13035-1067 1
CRANKSHAFT,RH 13037 13037-1499 1
BALANCER 13041 13041-1066 1
SET-CONNECTING ROD 13044 13044-5066 1
GEAR-COMP,BALANCER 13216 13216-1072 1
GEAR-SPUR,OIL PUMP,36T 59051 59051-1140 1
GEAR-SPUR,BALANCER,44T 59051A 59051-1141 1
NUT,16MM 92015 92015-1465 1
NUT,PUMP GEAR,30MM 92015A 92015-1511 1
WASHER,30.3X38X0.5 92022 92022-1987 1
SPACER,32X51.5X1.2 92026 92026-1232 2
KEY,WOODRUFF 92038 92038-001 1
KEY,SUNK 92038A 92038-1051 1
BEARING-BALL,6903C3 92045 92045-1266 1
NOZZLE 92062 92062-1056 1
WASHER,PUMP GEAR 92200 92200-1203 1
