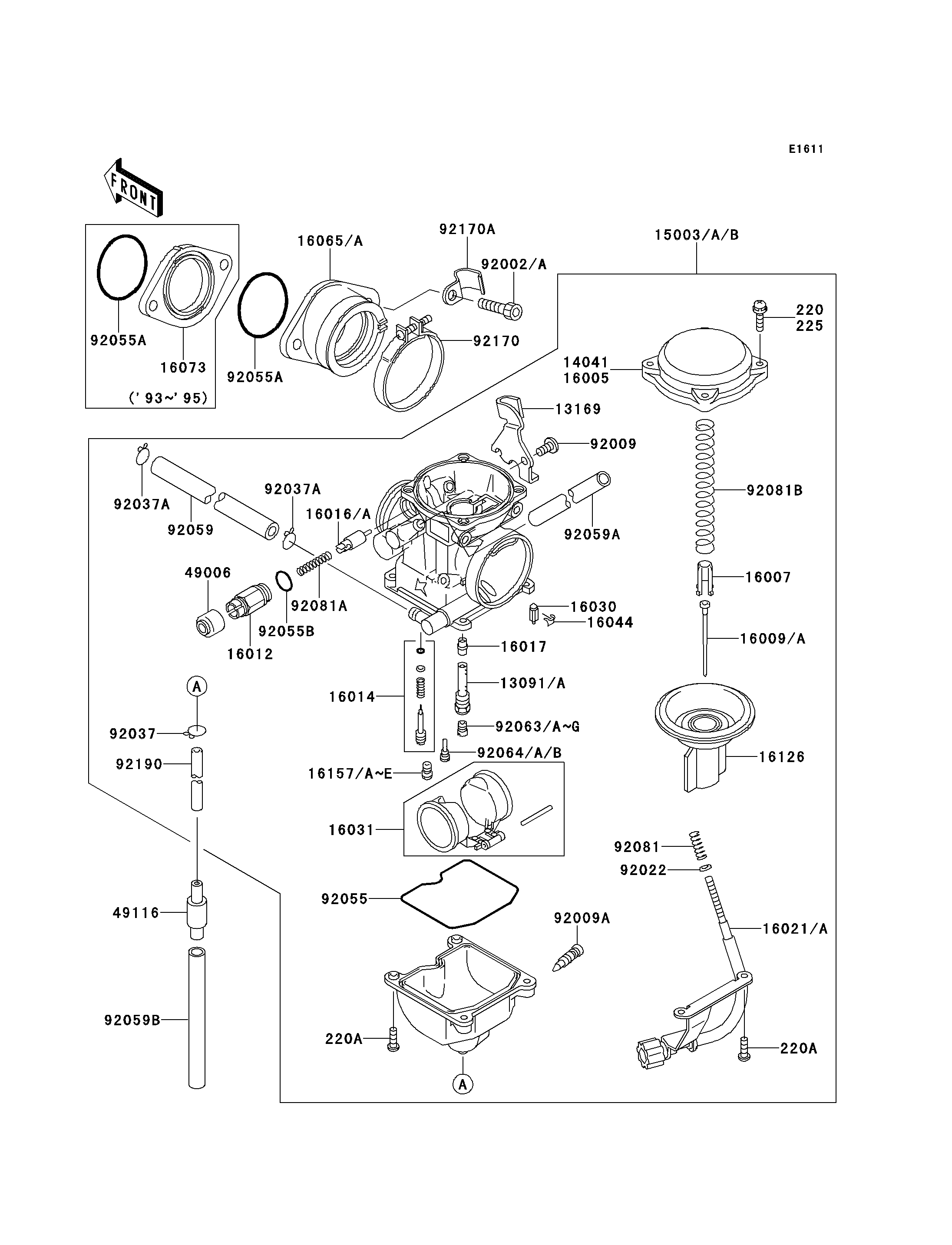

Parts Diagrams |
13091
13091
13169
13169
14041
14041
15003A
15003A
16007
16007
16009
16009
16012
16012
16014
16014
16016A
16016A
16017
16017
16021A
16021A
16030
16030
16031
16031
16044
16044
16065A
16065A
16126
16126
16157C
16157C
16157D
16157D
16157E
16157E
49006
49006
49116
49116
92002A
92002A
92009
92009
220
220
220A
220A
220A
220A
92009A
92009A
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92059
92059
92059A
92059A
92059B
92059B
92063
92063
92063B
92063B
92063C
92063C
92063E
92063E
92063F
92063F
92064
92064
92064A
92064A
92064B
92064B
92081
92081
92081A
92081A
92081B
92081B
92170
92170
92170A
92170A
92190
92190
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,NEEDLE JET | 13091 | 13091-1259 | 1 | ||
PLATE,THROTTLE CABLE | 13169 | 13169-1197 | 1 | ||
TOP-CHAMBER,MIXING,INSIDE | 14041 | 14041-1077 | 1 | ||
CARBURETOR-ASSY | 15003A | 15003-1210 | 1 | ||
SEAT-SPRING,THROTTLE VALVE | 16007 | 16007-1120 | 1 | ||
NEEDLE-JET,N36W | 16009 | 16009-1503 | 1 | ||
CAP-STARTER PLUNGER | 16012 | 16012-1055 | 1 | ||
SCREW-PILOT AIR | 16014 | 16014-1081 | 1 | ||
PLUNGER,STARTER | 16016A | 16016-1101 | 1 | ||
JET-NEEDLE,#6 | 16017 | 16017-1270 | 1 | ||
SCREW-THROTTLE STOP | 16021A | 16021-1175 | 1 | ||
VALVE-FLOAT | 16030 | 16030-1007 | 1 | ||
FLOAT | 16031 | 16031-1077 | 1 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
HOLDER-CARBURETOR | 16065A | 16065-1301 | 1 | ||
VALVE,VACUUM | 16126 | 16126-1199 | 1 | ||
JET-STARTER,#65 | 16157C | 16157-1063 | 1 | ||
JET-STARTER,#68 | 16157D | 16157-1064 | 1 | (OPTION) | |
JET-STARTER,#70 | 16157E | 16157-1065 | 1 | (OPTION) | |
BOOT,STARTER PLUNGER | 49006 | 49006-1165 | 1 | ||
VALVE-ASSY | 49116 | 49116-1126 | 1 | ||
BOLT,6X16 | 92002A | 92002-1143 | 2 | ||
SCREW,5X10 | 92009 | 92009-1365 | 1 | ||
SCREW-PAN-CROS | 220 | 220B0408 | 4 | ||
SCREW-PAN-CROS | 220A | 220D0414 | 4 | ||
SCREW,DRAIN,M6X0.75 | 92009A | 92009-1551 | 1 | ||
WASHER,PLAIN,STOP SPRING | 92022 | 92022-1480 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1201 | 1 | ||
CLAMP,TUBE | 92037A | 92037-1531 | 2 | ||
RING-O,FLOAT CHAMBER | 92055 | 92055-1222 | 1 | ||
RING-O,38MM | 92055A | 92055-1295 | 1 | ||
RING-O,STARTER PLUNGER | 92055B | 92055-1416 | 1 | ||
TUBE,6.5X11.5X150 | 92059 | 92059-1463 | 1 | ||
TUBE,6.5X9.5X430 | 92059A | 92059-1727 | 1 | ||
TUBE,7X10X100 | 92059B | 92059-1736 | 1 | ||
JET-MAIN,#125 | 92063 | 92063-1069 | 1 | ||
JET-MAIN,#120 | 92063B | 92063-1072 | 1 | (OPTION) | |
JET-MAIN,#122 | 92063C | 92063-1073 | 1 | (OPTION) | |
JET-MAIN,#128 | 92063E | 92063-1074 | 1 | (OPTION) | |
JET-MAIN,#130 | 92063F | 92063-1075 | 1 | (OPTION) | |
JET-PILOT,#35 | 92064 | 92064-1101 | 1 | (OPTION) | |
JET-PILOT,#38 | 92064A | 92064-1119 | 1 | ||
JET-PILOT,#40 | 92064B | 92064-1125 | 1 | (OPTION) | |
SPRING,THROTTLE STOP SCREW | 92081 | 92081-1617 | 1 | ||
SPRING,PLUNGER | 92081A | 92081-1720 | 1 | ||
SPRING,VACUUM VALVE | 92081B | 92081-1775 | 1 | ||
CLAMP | 92170 | 92170-1438 | 1 | ||
CLAMP | 92170A | 92170-1552 | 1 | ||
TUBE,4.5X8X330 | 92190 | 92190-1557 | 1 |
