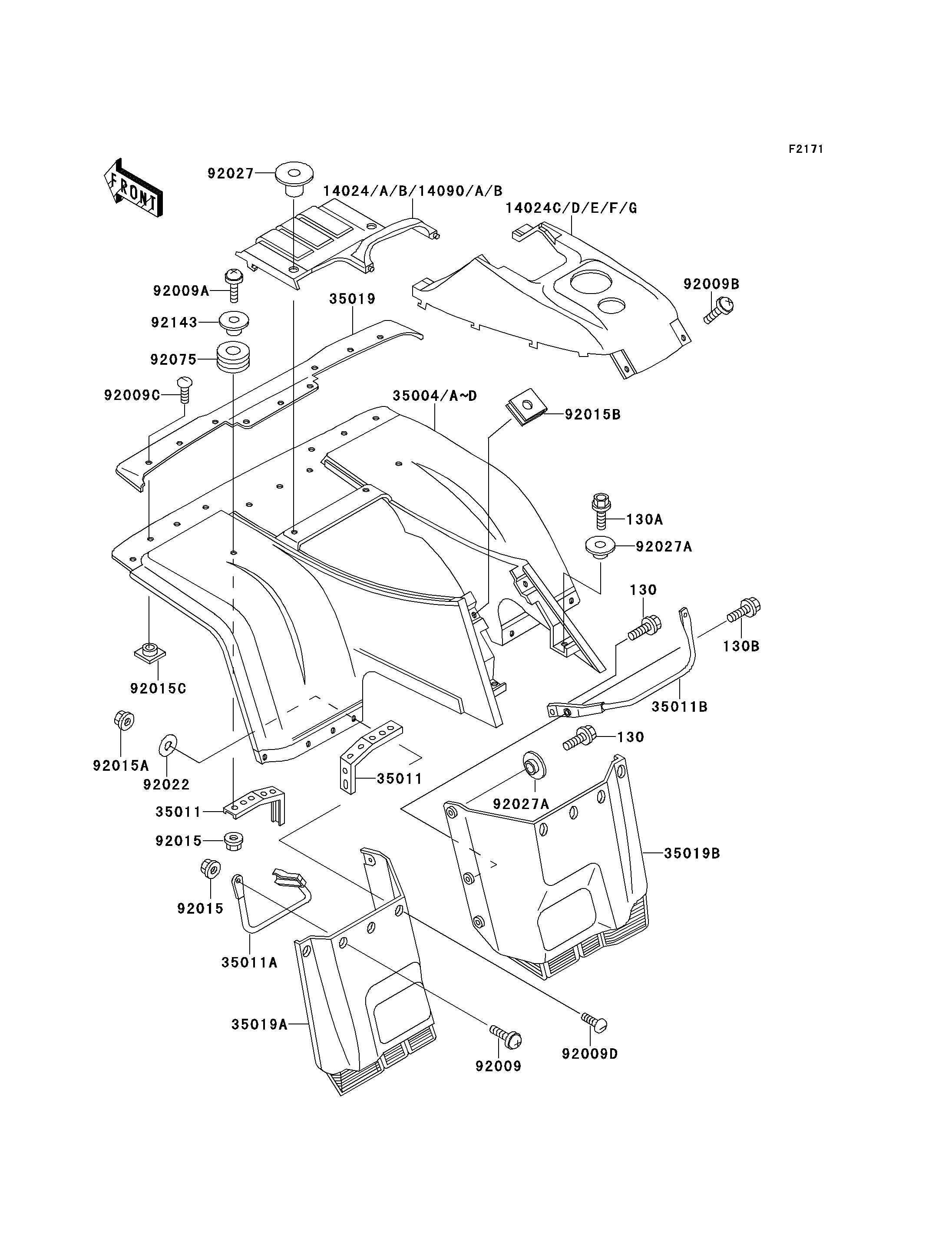

1994 Bayou 300 4X4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
14024B
14024F
35004
35004D
35011
35011
35011A
35011B
35019
35019A
35019B
92009
92009A
92009B
92009C
92009D
92015
92015
92015A
92015B
92015C
92022
92027
92027A
92027A
92075
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130C0614 6
BOLT-FLANGED,6X16 130A 130C0616 2
BOLT-FLANGED,6X20 130B 130C0620 2
COVER,FRONT FENDER,FR,BLACK 14024B 14090-1656-6D 1
COVER,FRONT FENDER,RR,BLACK 14024F 14024-1657-6D 1
FENDER-FRONT,BLUE 42 35004 35004-1273-BG 1
FENDER-FRONT,F.RED 35004D 35004-1273-6L 1
STAY,FRONT FENDER,UPP 35011 35011-1420 2
STAY,FRONT FENDER,LH,FLAP 35011A 35011-1421 1
STAY,FRONT FENDER,RH,FLAP 35011B 35011-1422 1
FLAP,FR 35019 35019-1215 1
FLAP,FR,LWR,LH 35019A 35019-1216 1
FLAP,FR,LWR,RH 35019B 35019-1217 1
SCREW,6X18,BLACK 92009 92009-1181 2
SCREW,6X22,BLACK 92009A 92009-1256 2
SCREW,6X14 92009B 92009-1288 2
SCREW,6X11 92009C 92009-1562 11
SCREW,6X16 92009D 92009-1621 6
NUT,FLANGED,6MM,BLACK 92015 92015-1233 4
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 6
NUT,CLAMP,6MM 92015B 92015-1678 2
NUT,6MM 92015C 92015-1722 11
WASHER,6.5X16X1.0 92022 92022-1093 6
COLLAR,L=14 92027 92027-1134 2
COLLAR,L=4.7 92027A 92027-122 6
DAMPER,CASE 92075 92075-222 2
COLLAR,L=9.6 92143 92143-1016 2
