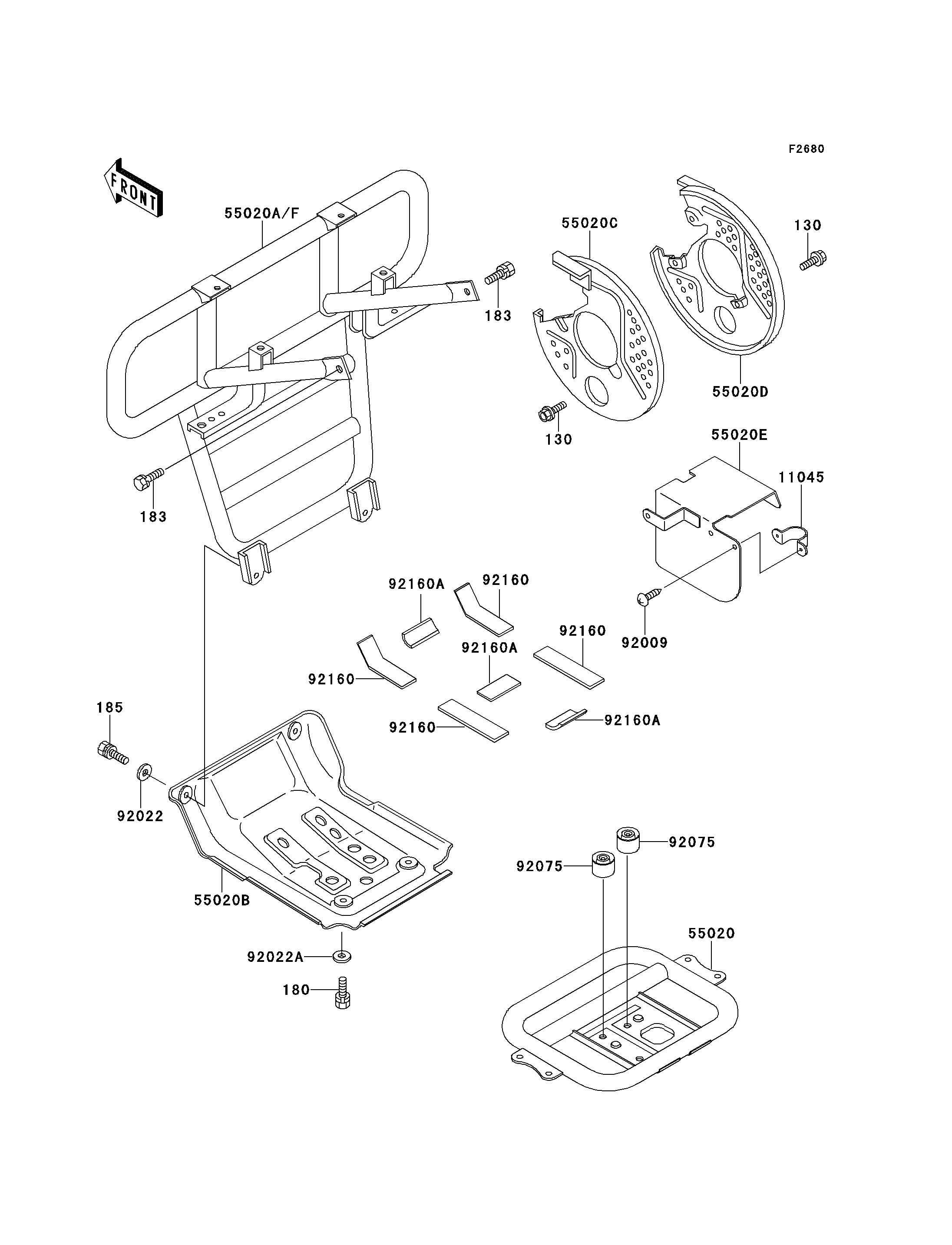

Parts Diagrams |
130
130
180
183
183
185
55020
55020A
55020B
55020C
55020D
92022
92022A
92075
92075
92160
92160
92160
92160
92160A
92160A
92160A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130B0610 | 6 | ||
BOLT-UPSET-WS,6X16 | 180 | 180J0616 | 2 | ||
BOLT-UPSET-WS-SMALL | 183 | 183J0825 | 2 | ||
BOLT-UPSET-WSP-SMALL,8X20 | 185 | 185J0820 | 2 | ||
GUARD,ENGINE | 55020 | 55020-1301 | 1 | ||
GUARD,FR | 55020A | 55020-1302 | 1 | ||
GUARD,FRONT DIFF | 55020B | 55020-1303 | 1 | ||
GUARD,FRONT DISC,LH | 55020C | 55020-1304 | 1 | ||
GUARD,FRONT DISC,RH | 55020D | 55020-1305 | 1 | ||
WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 2 | ||
WASHER,6.5X20X1.6,BLACK | 92022A | 92022-1346 | 2 | ||
DAMPER | 92075 | 92075-1896 | 2 | ||
DAMPER | 92160 | 92160-1101 | 4 | ||
DAMPER | 92160A | 92160-1102 | 3 | ||
BRACKET,FENDER | 11045 | 11045-1882 | 1 | CN | |
GUARD,SNOW | 55020E | 55020-1474 | 1 | CN | |
SCREW,TAPPING,5X10 | 92009 | 92009-1332 | 2 | CN |
